HDA36150 - 150 Amp Circuit Breaker

HDA36150 - 150 Amp Circuit Breaker

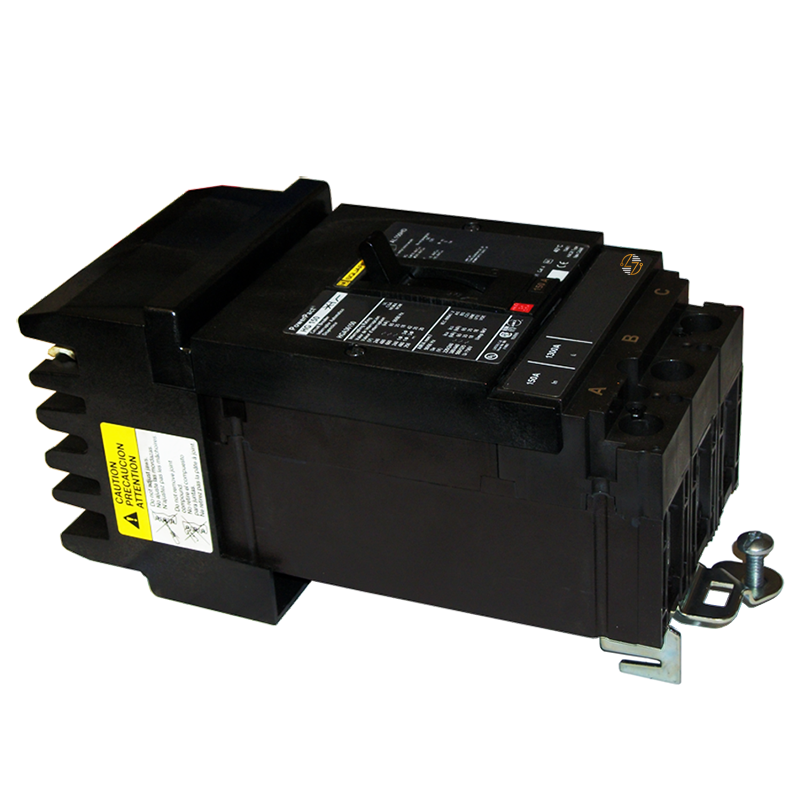

The HDA36150 is a 150 Amp, 3-pole circuit breaker from Schneider Electric’s PowerPacT H line. It’s used in compatible I-Line panelboards and switchboards, most often as a replacement for your existing H-frame breaker with the same ratings and mounting style.

Protection is handled by a thermal-magnetic trip unit. The thermal side responds to sustained overloads, while the magnetic side reacts to short-circuit current. Since the trip characteristics are factory set, there are no electronic adjustments to make during installation.

Key Features and Benefits

• 150 Amp, 3-pole molded case circuit breaker
• Schneider Electric PowerPacT H series
• Thermal magnetic trip protection
• I-Line mounting for compatible equipment
• Mechanical load-side lugs
• Accepts copper or aluminum conductors
• Dual-break rotating contacts
• Built-in push-to-trip button
• 14kA interrupting capacity at 600VAC
• 80% continuous current rating
• HACR rated
• Suitable for isolation under applicable IEC requirements
• Commonly used for replacement and retrofit work


Technical Specifications

• Manufacturer: Schneider Electric

• Catalog Number: HDA36150

• Series: PowerPacT H

• Product Type: Molded Case Circuit Breaker

• Frame Type: H-Frame

• Current Rating: 150 Amps

• Poles: 3

• Continuous Current Rating: 80%

• Phase Connection: ABC

• Frequency: 50/60 Hz

• Voltage Rating: Up to 600VAC under UL ratings

• Interrupting Capacity:
  25kA at 240VAC
  18kA at 480VAC
  14kA at 600VAC
  20kA at 250VDC
• Rated Insulation Voltage: 750V

• Line Connection: I-Line

• HACR Rated: Yes

• Dimensions: 6.4 in H × 4.09 in W × 3.4 in D

• Mounting Height: 4.5 in

• Weight: 4.9 lb


Material Compliance and Certifications

The HDA36150 is UL listed, CSA certified, NOM certified, and CE marked. It also complies with applicable NEMA, NOM-003-SCFI-2000, and IEC 60947-2 requirements.

The front cover carries an IP40 rating under IEC 60529, and the breaker is classified for Pollution Degree 3 under IEC 60947-1.

Where It Works Best

• Schneider Electric PowerPacT H I-Line panelboards
• I-Line switchboards
• Commercial three-phase distribution systems
• Industrial electrical equipment
• Manufacturing and processing facilities
• HVAC and HACR branch circuits
• Motor and machinery circuits within the breaker’s ratings
• Control panels and auxiliary equipment
• Maintenance and retrofit projects
