HDA36090 - 90 Amp Circuit Breaker

HDA36090 - 90 Amp Circuit Breaker

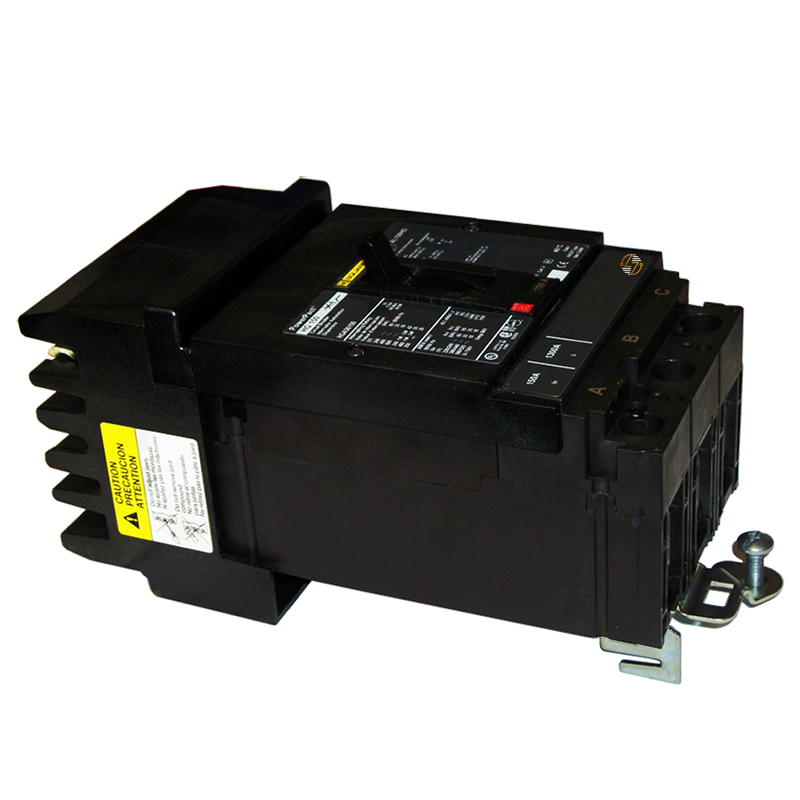

The Schneider Electric HDA36090 PowerPacT H circuit breaker is a 90 Amp, 3-pole molded case circuit breaker built for commercial and industrial power distribution systems. Designed for use in compatible PowerPacT H I-Line panelboards, it combines proven thermal magnetic trip technology with an I-Line connection that makes installation and replacement straightforward. Whether you're replacing a breaker during routine maintenance or installing new distribution equipment, the HDA36090 offers reliable overcurrent protection while maintaining the original panel configuration.

Key Features and Benefits

• 90 Amp, 3-pole molded case circuit breaker
• Schneider Electric PowerPacT H series
• Thermal magnetic protection for overloads and short circuits
• I-Line mounting for compatible panelboards and switchboards
• Dual-break rotating contacts help reduce peak fault current
• Built-in push-to-trip button for inspection and testing
• Mechanical load-side lugs accept copper or aluminum conductors


Technical Specifications

• Manufacturer: Schneider Electric

• Catalog Number: HDA36090

• Series: PowerPacT H

• Product Type: Molded Case Circuit Breaker

• Frame Type: H-Frame

• Application: Distribution

• Current Rating: 90 Amps

• Poles: 3

• Trip Unit Technology: Thermal Magnetic

• Control Type: Toggle

• Continuous Current Rating: 80%

• Voltage Rating: Up to 600VAC (UL), 690VAC (IEC)

• Frequency: 50/60 Hz

• Interrupting Capacity:
  25kA @ 240VAC
  18kA @ 480VAC
  14kA @ 600VAC
  20kA @ 250VDC
• Magnetic Trip Current: 1450A

• Magnetic Hold Current: 800A

• Rated Operational Voltage (Ue): 690VAC

• Rated Insulation Voltage (Ui): 750V

• Impulse Withstand Voltage (Uimp): 8kV

• Mounting Style: I-Line

• Line Connection: I-Line

• Load Connection: Mechanical Lugs

• Wire Range: 14 AWG–3/0 AWG Copper or Aluminum

• Terminal Identifier: AL150HD

• Phase Connection: ABC

• Communication Interface: Modbus, Ethernet

• Suitable for Isolation: Yes

• Utilization Category: Category A

• Front Cover Protection: IP40

• Color: Black

• Dimensions: 6.4 in H × 4.09 in W × 3.4 in D

• Weight: 4.9 lb


Material Compliance and Certifications

The HDA36090 is UL Listed, CSA Certified, NOM Certified, and CE Marked. It complies with UL 489, IEC 60947-2, NEMA, and NOM-003-SCFI-2000 standards, making it suitable for use in commercial and industrial electrical distribution systems.

Where It Works Best

• Schneider Electric PowerPacT H I-Line panelboards
• Commercial electrical distribution systems
• Industrial facilities and manufacturing plants
• Distribution panels and switchboards
• HVAC and refrigeration equipment
• Motor branch circuits
• Industrial control panels
• Three-phase power distribution
• Maintenance and retrofit projects
• Replacement of existing PowerPacT H I-Line circuit breakers
