HDA36030 - 30 Amp Circuit Breaker

HDA36030 - 30 Amp Circuit Breaker

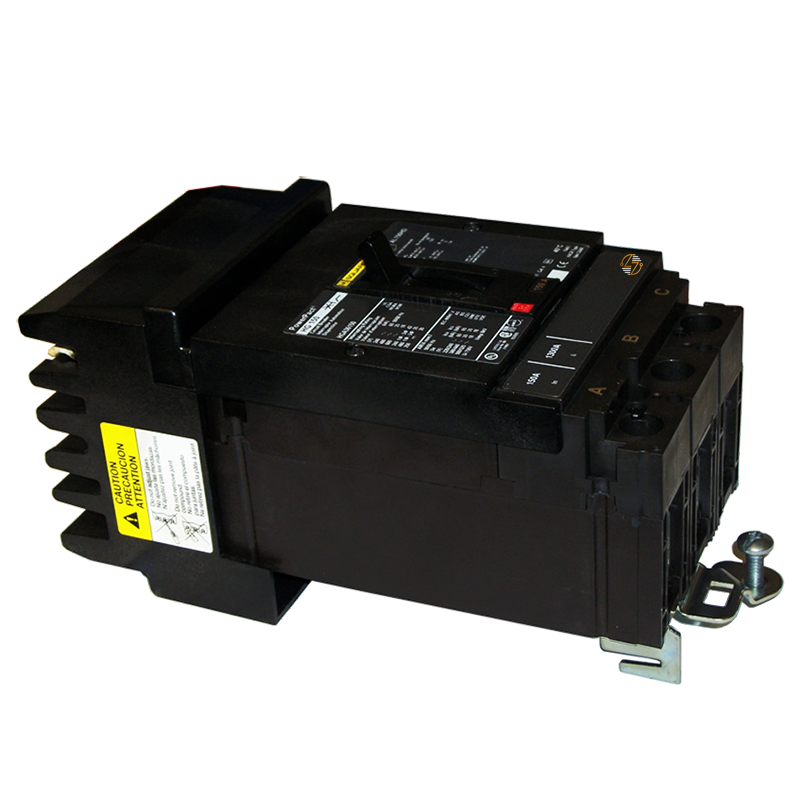

The HDA36030 is a 30 Amp, 3-pole thermal magnetic circuit breaker from the Schneider Electric PowerPacT H series. It’s made for compatible I-Line distribution equipment and is often used when your existing breaker needs to be replaced without changing the original panel layout.

Key Features and Benefits

• 30 Amp, 3-pole circuit breaker
• PowerPacT H-frame construction
• Thermal magnetic overload and short-circuit protection
• I-Line connection for compatible distribution equipment
• Mechanical load-side lugs
• Accepts copper or aluminum conductors
• Dual-break rotating contact design
• Built-in push-to-trip button
• HACR rated
• Suitable for replacement in existing I-Line installations


Technical Specifications

• Catalog Number: HDA36030

• Manufacturer: Schneider Electric

• Series: PowerPacT H

• Product Type: Molded-case circuit breaker

• Frame: H-Frame

• Amperage Rating: 30 Amps

• Poles: 3

• Protected Poles: 3

• Trip Unit: Thermal magnetic

• Continuous Current Rating: 80%

• Control Type: Toggle

• Phase Connection: ABC

• Frequency: 50/60 Hz

• Voltage Rating: Up to 600VAC

• IEC Operational Voltage: Up to 690VAC

• Interrupting Rating:
  • 25kA at 240VAC
  • 18kA at 480VAC
  • 14kA at 600VAC
  • 20kA at 250VDC
• Magnetic Trip Current: 750A

• Magnetic Hold Current: 350A

• Impulse Withstand Voltage: 8kV

• Insulation Voltage: 750V

• Mounting Style: I-Line bracket

• Line Connection: I-Line

• Load Connection: Mechanical lugs

• Terminal Identifier: AL150HD

• Wire Range: 14 AWG–3/0 AWG aluminum or copper

• Wire Strip Length: 0.6 in

• Front Cover Rating: IP40

• HACR Rated: Yes

• Suitable for Isolation: Yes

• Dimensions:
  • Height: 6.4 inches
  • Width: 4.09 inches
  • Depth: 3.4 inches
• Weight: 4.9 lb

• Operating Temperature: -13°F to 158°F

• Storage Temperature: -58°F to 185°F

• Operating Altitude: Up to 6,561 ft without derating


Material Compliance and Certifications

The HDA36030 is UL listed, CSA certified, NOM certified, and CE marked. It also complies with applicable NEMA, NOM-003-SCFI-2000, and IEC 60947-2 requirements.

Where It Works Best

• Schneider Electric I-Line panelboards
• Commercial three-phase distribution systems
• Industrial electrical equipment
• Manufacturing facilities
• HVAC and HACR branch circuits
• Motor and machinery circuits within the breaker’s ratings
• Control and auxiliary equipment
• Maintenance and retrofit projects
• Replacement of matching PowerPacT H breakers
