HDA36015 - 15 Amp Circuit Breaker

HDA36015 - 15 Amp Circuit Breaker

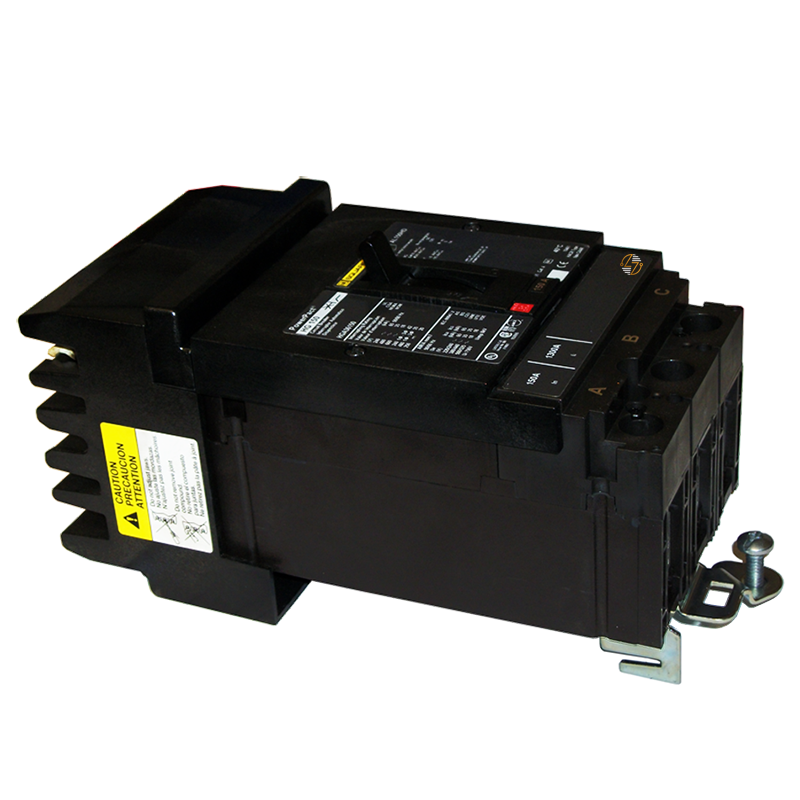

The HDA36015 is a 15 Amp, three-pole circuit breaker from Schneider Electric's PowerPacT H series. It's built for I-Line distribution systems and is commonly selected when replacing an existing breaker with the same frame size, mounting style, and electrical ratings.

You'll often find this breaker protecting three-phase branch circuits in commercial buildings, manufacturing facilities, and other industrial settings.

Key Features and Benefits

• 15 Amp three-pole circuit breaker
• Schneider Electric PowerPacT H series
• Thermal magnetic trip protection
• I-Line mounting for compatible panelboards
• Mechanical lug load terminals
• Dual-break rotating contacts help reduce peak fault current
• Integral push-to-trip button for testing
• Rated for systems up to 600VAC
• Accepts aluminum or copper conductors
• HACR rated
• Ideal for replacement in existing I-Line installations


Technical Specifications

• Catalog Number: HDA36015

• Manufacturer: Schneider Electric

• Series: PowerPacT H

• Product Type: Thermal magnetic circuit breaker

• Frame Type: H-Frame

• Amperage Rating: 15 Amps

• Voltage Rating: Up to 600VAC

• Poles: 3

• Continuous Rating: 80%

• Interrupt Rating:
  • 25kA @ 240VAC
  • 18kA @ 480VAC
  • 14kA @ 600VAC
  • 20kA @ 250VDC
• Trip Unit: Thermal magnetic

• Mounting Style: I-Line

• Line Connection: I-Line

• Load Connection: Mechanical lugs

• Wire Range: 14 AWG–3/0 AWG aluminum or copper

• Push-to-Trip Button: Yes

• HACR Rated: Yes

• Suitable for Isolation: Yes

• Dimensions:
  • Height: 6.4 inches
  • Width: 4.09 inches
  • Depth: 3.4 inches
• Weight: 4.9 lb


Material Compliance and Certifications

The HDA36015 complies with UL, CSA, NOM, NEMA, and IEC 60947-2 standards and is CE marked where applicable. It is designed for use in compatible Schneider Electric PowerPacT H I-Line systems.

Where It Works Best

• Schneider Electric I-Line panelboards
• Commercial electrical distribution systems
• Industrial power distribution
• Three-phase branch circuits
• HVAC equipment
• Control panels
• Manufacturing facilities
• Replacement of existing PowerPacT H breakers
