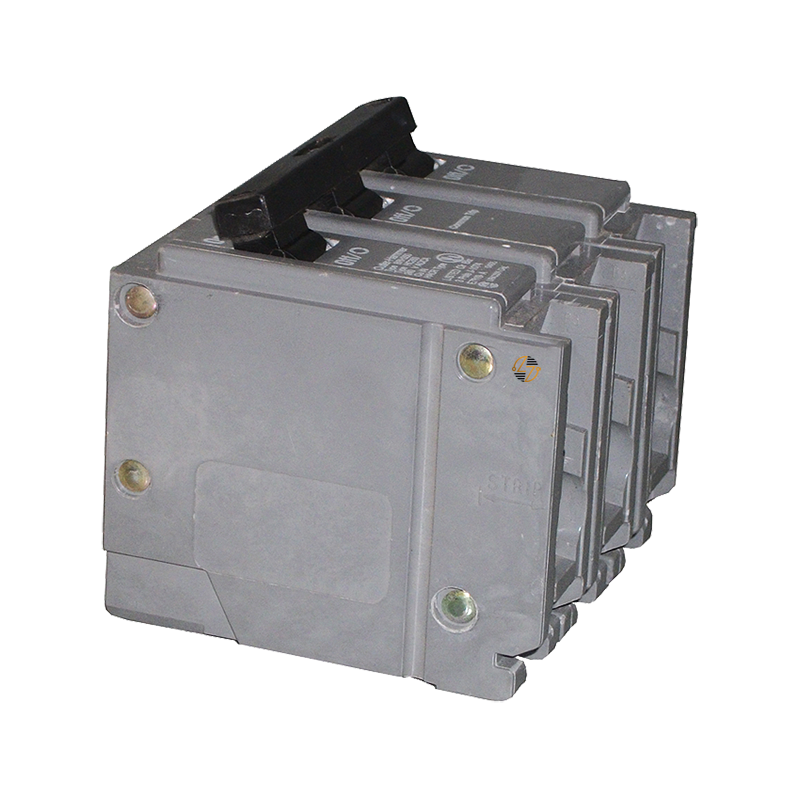

HC320 - 20Amp Circuit Breaker

HC320 - 20Amp Circuit Breaker

Introducing the HC320 circuit breaker, a high-performance solution tailored for residential and light commercial applications. Designed to deliver superior protection and reliability, this advanced circuit breaker ensures the safety and efficiency of your electrical system. With a robust interrupting capacity and a user-friendly design, the HC320 is the ideal choice for both new installations and system upgrades.

Key Features and Benefits:

• High Interrupting Capacity: The HC320 circuit breaker is rated at 22 kAIC, providing excellent protection against high fault currents, thus minimizing the risk of damage to your electrical infrastructure.
• Thermal Magnetic Trip: Equipped with a thermal magnetic trip mechanism, the HC320 ensures accurate and reliable interruption of electrical circuits, safeguarding against overloads and short circuits.
• Common Breaker Trip: Features a common trip mechanism that ensures all poles of the breaker trip simultaneously, enhancing overall safety and reliability.
• Wide Wire Range Compatibility: Supports wire sizes from #14 to #4 AWG for both copper and aluminum, offering flexibility and convenience during installation.

Technical Specifications:

• Amperage: 20 A
• Poles: Three-pole
• Voltage Rating: 240 V
• Interrupt Rating: 22 kAIC
• Trip Type: Thermal magnetic
• Frame Type: HC
• Wire Size: #14-4 AWG Cu/Al
• Dimensions: 3.00"W x 2.88"L x 2.56"D
• Weight: 3 lb


Material Compliance and Certifications:

• Federal Specifications Classification: WC376
• UL Standard: UL 489

Suitability:

• The HC320 circuit breaker is perfectly suited for a variety of settings, including residential and light commercial environments. It is designed for use with Eaton Type BR load centers and offers reliable protection for electrical circuits, making it an excellent choice for both new installations and system upgrades.
