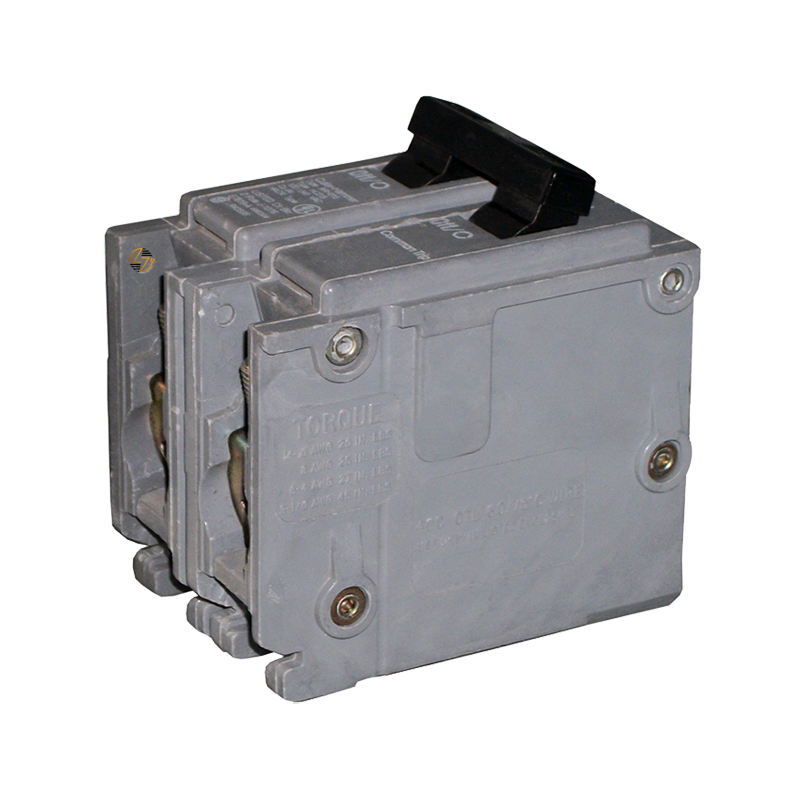

HC270 - 70Amp Circuit Breaker

HC270 - 70Amp Circuit Breaker

The HC270 circuit breaker is designed to deliver exceptional performance and safety in both residential and light commercial electrical systems. With a 70A current rating and a 22 kAIC interrupt capacity, this two-pole, high-magnetic, plug-on circuit breaker ensures robust protection against overloads and short circuits, making it an essential addition to any reliable electrical setup.

Key Features and Benefits:

• High Interrupt Capacity: Boasting a 22 kAIC rating, the HC270 offers strong protection against high fault currents, ensuring safe and reliable operation in demanding environments.
• Advanced Thermal Magnetic Protection: Combines thermal and magnetic trip mechanisms for precise and dependable protection against overloads and short circuits.
• High-Magnetic Setting: Enhanced high-magnetic trip settings provide superior performance in applications with high inrush currents, ensuring reliable protection.
• Dual-Functionality: Equipped with a common trip mechanism, ensuring both poles are disconnected simultaneously during fault conditions, enhancing overall safety.
• Versatile Wiring: Compatible with both copper and aluminum wires (#4-1/0 AWG Cu/Al), providing flexibility in various wiring configurations.

Technical Specifications:

• Amperage Rating: 70A
• Voltage Rating: 120/240V AC
• Interrupt Rating: 22 kAIC
• Trip Type: Thermal Magnetic
• Special Features: High-Magnetic Setting
• Poles: 2
• Wire Size: #4-1/0 AWG Cu/Al
• Mounting Type: Plug-on
• Frame Type: HC
• Dimensions: 2.00"W x 2.88"L x 2.56"D
• Weight: 2.25lbs


Material Compliance and Certifications:

• UL 489: Certified for safe operation and reliable performance.
• Federal Specifications Classification WC376: Meets federal safety and performance criteria.

Suitability:

• Residential Electrical Panels: Perfect for upgrading or expanding home electrical systems with enhanced safety and performance.
• Light Commercial Installations: Suitable for small businesses and commercial properties requiring dependable circuit protection.
• New Construction and Renovations: Easy to install in new builds or during electrical system upgrades, offering long-term protection and durability.

Choose the HC270 circuit breaker for its superior protection, ease of installation, and compliance with stringent safety standards.
