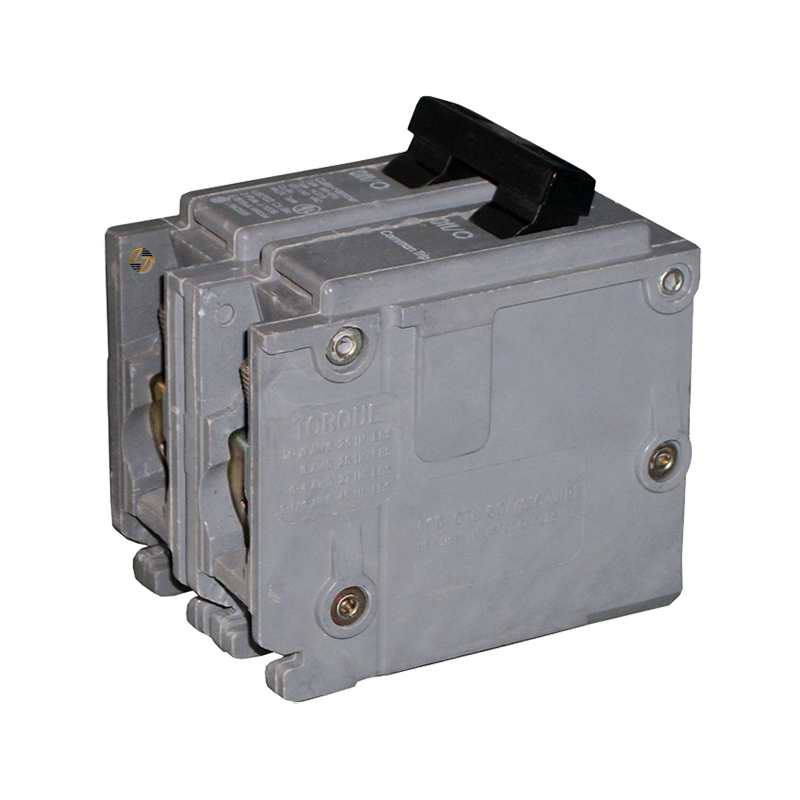

HC235 - 35Amp Circuit Breaker

HC235 - 35Amp Circuit Breaker

The HC235 circuit breaker is designed to deliver exceptional performance and safety for residential and light commercial electrical systems. This two-pole, 35-amp circuit breaker operates at 120/240V, offering versatile application for various electrical installations. Equipped with a thermal magnetic trip mechanism, the HC235 ensures precise protection against overcurrent and short circuits, safeguarding your electrical infrastructure. Its compact 1-inch plug-on design facilitates easy installation in Type HC loadcenters, making it an excellent choice for new installations and system upgrades. With a robust interrupting capacity of 22 kAIC, this circuit breaker is built to withstand high fault conditions, ensuring the safety and efficiency of your electrical system.

Key Features and Benefits:

• Thermal Magnetic Trip: Provides precise protection by combining thermal and magnetic tripping mechanisms, ensuring safety against overloads and short circuits.
• High Interrupting Capacity: Rated at 22 kAIC, the HC235 offers robust performance, capable of handling high fault conditions effectively.
• Compact Design: The 1-inch plug-on configuration allows for quick and easy installation, saving time and space in Type BR loadcenters.
• Dual Voltage Operation: Compatible with 120/240V systems, providing versatile application in various residential and light commercial environments.
• Common Trip Mechanism: Ensures simultaneous tripping of both poles, enhancing safety and reliability in the electrical system.

Technical Specifications:

• Amperage Rating: 35 A
• Voltage Rating: 120/240 V
• Interrupt Rating: 22 kAIC
• Trip Type: Thermal Magnetic
• Circuit Breaker Type: Type HC, 1-Inch Plug-On
• Number of Poles: Two-Pole
• Wire Size: #14-4 AWG Cu/Al
• Mounting Method: Plug-On

Material Compliance and Certifications:

• Compliance: Federal Specifications Classification WC376
• Certifications: UL 490
• Standards: Meets or exceeds industry standards for safety and performance, ensuring reliable operation in residential and light commercial settings.

Suitability:

• The HC235 circuit breaker is ideal for a broad range of residential and light commercial applications, providing reliable protection for electrical circuits. Its robust design and high interrupting capacity make it suitable for environments where dependable performance is critical. Whether you're upgrading an existing system or installing a new one, the HC235 delivers the safety, efficiency, and reliability required for optimal electrical protection.
