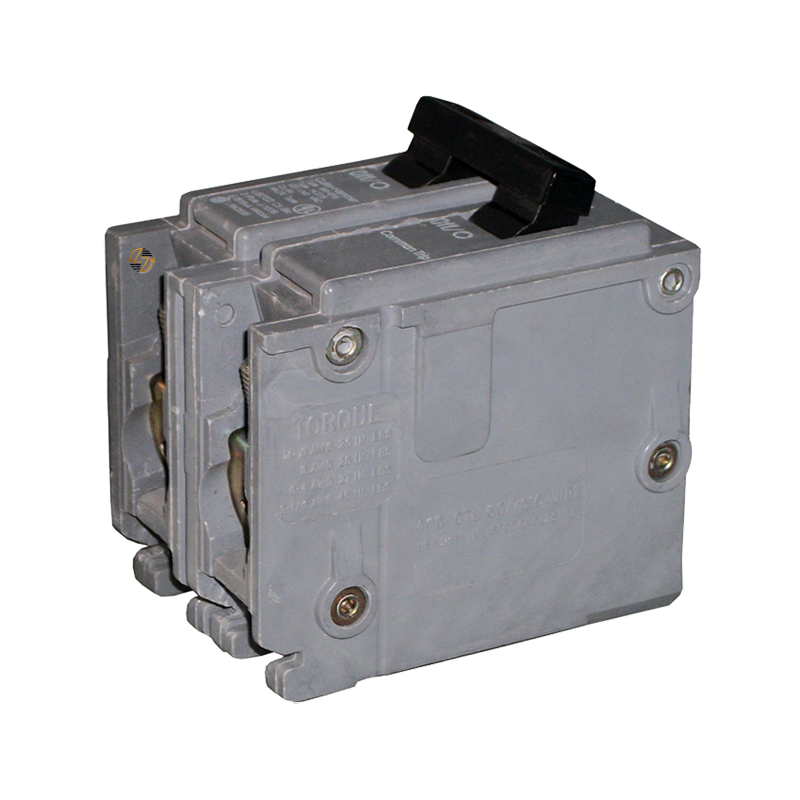

HC225 - 25Amp Circuit Breaker

HC225 - 25Amp Circuit Breaker

The HC225 circuit breaker is a premium solution engineered to provide exceptional protection and reliability for residential and light commercial electrical systems. This two-pole, 25-amp circuit breaker operates at 120/240V, making it versatile for a variety of applications. Equipped with a thermal magnetic trip mechanism, the HC225 ensures precise and reliable protection against overcurrent and short circuits, safeguarding your electrical installations. The 1-inch plug-on design simplifies installation in Type HC loadcenters, making it an excellent choice for both new installations and system upgrades. With a high interrupting capacity of 22 kAIC, this circuit breaker is designed to handle significant fault conditions, ensuring the safety and efficiency of your electrical system.

Key Features and Benefits:

• Thermal Magnetic Trip: Combines thermal and magnetic tripping mechanisms for precise protection against overloads and short circuits.
• High Interrupting Capacity: Rated at 22 kAIC, the HC225 can effectively handle high fault conditions, providing robust protection.
• Dual Voltage Operation: Compatible with 120/240V systems, offering versatility for various residential and light commercial applications.
• Common Trip Mechanism: Ensures both poles trip simultaneously, enhancing overall system safety and reliability.

Technical Specifications:

• Amperage Rating: 25 A
• Voltage Rating: 120/240 V
• Interrupt Rating: 22 kAIC
• Trip Type: Thermal Magnetic
• Circuit Breaker Type: Type HC, 1-Inch Plug-On
• Number of Poles: Two-Pole
• Wire Size: #14-4 AWG Cu/Al
• Mounting Method: Plug-On

Material Compliance and Certifications:

• Compliance: Federal Specifications Classification WC376
• Certifications: UL 490
• Standards: Meets or exceeds industry standards for safety and performance, ensuring reliable operation in residential and light commercial settings.

Suitability:

• The HC225 circuit breaker is ideal for a wide range of residential and light commercial applications, providing reliable protection for electrical circuits. Its robust design, high interrupting capacity, and thermal magnetic trip mechanism make it suitable for environments where dependable performance is critical. Whether upgrading an existing system or installing a new one, the HC225 delivers the safety, efficiency, and reliability required for optimal electrical protection.
