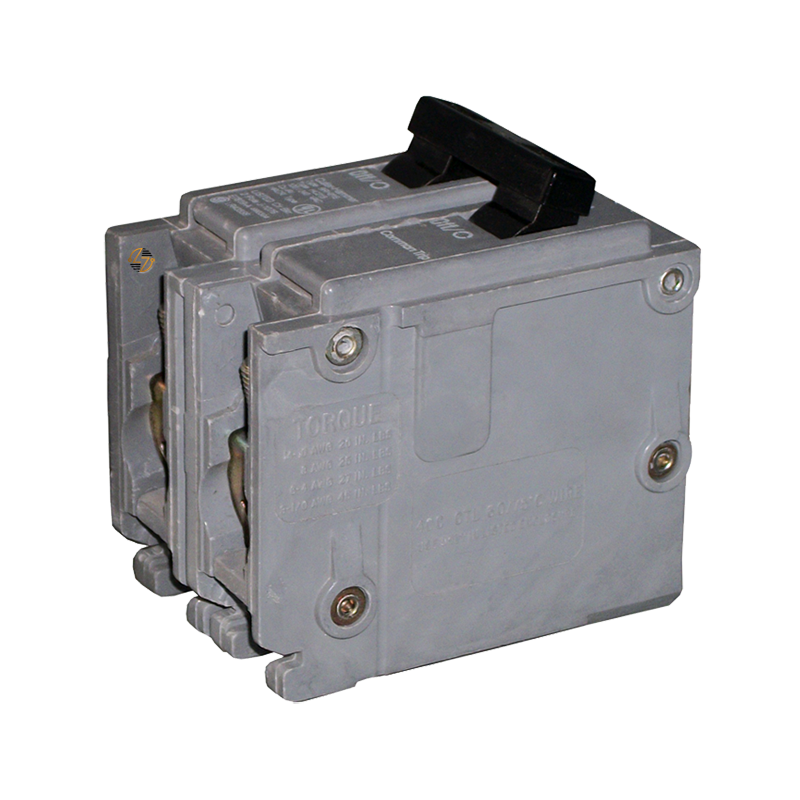

HC220 - 20Amp Circuit Breaker

HC220 - 20Amp Circuit Breaker

The HC220 circuit breaker is a reliable and robust solution designed for residential and light commercial applications, ensuring optimal performance and safety. This two-pole, 20-amp circuit breaker operates at 120/240V, providing efficient power management for a variety of electrical systems. Featuring a thermal magnetic trip mechanism, the HC220 offers superior protection against overcurrent and short circuits, safeguarding your electrical installations. With a high interrupting capacity of 22 kAIC, this circuit breaker ensures reliable operation even under high fault conditions.

Key Features and Benefits:

• Thermal Magnetic Trip: Provides precise protection by combining thermal and magnetic tripping mechanisms, ensuring safety against overloads and short circuits.
• High Interrupting Capacity: Rated at 22 kAIC, the HC220 offers robust performance, capable of handling high fault conditions effectively.
• Dual Voltage Operation: Compatible with 120/240V systems, providing versatile application in various residential and light commercial environments.
• Common Trip Mechanism: Ensures simultaneous tripping of both poles, enhancing safety and reliability in the electrical system.

Technical Specifications:

• Amperage Rating: 20 A
• Voltage Rating: 120/240 V
• Interrupt Rating: 22 kAIC
• Trip Type: Thermal Magnetic
• Circuit Breaker Type: Type HC, 1-Inch Plug-On
• Number of Poles: Two-Pole
• Wire Size: #14-4 AWG Cu/Al
• Mounting Method: Plug-On

Material Compliance and Certifications:

• Compliance: Federal Specifications Classification WC376
• Certifications: UL 490
• Standards: Meets or exceeds industry standards for safety and performance, ensuring reliable operation in residential and light commercial applications.

Suitability:

• The HC220 circuit breaker is suitable for use in a wide range of residential and light commercial applications, offering reliable protection for electrical circuits. Its robust design and high interrupting capacity make it ideal for environments where dependable performance is critical. Whether you're upgrading an existing system or installing a new one, the HC220 provides the safety and efficiency you need.
