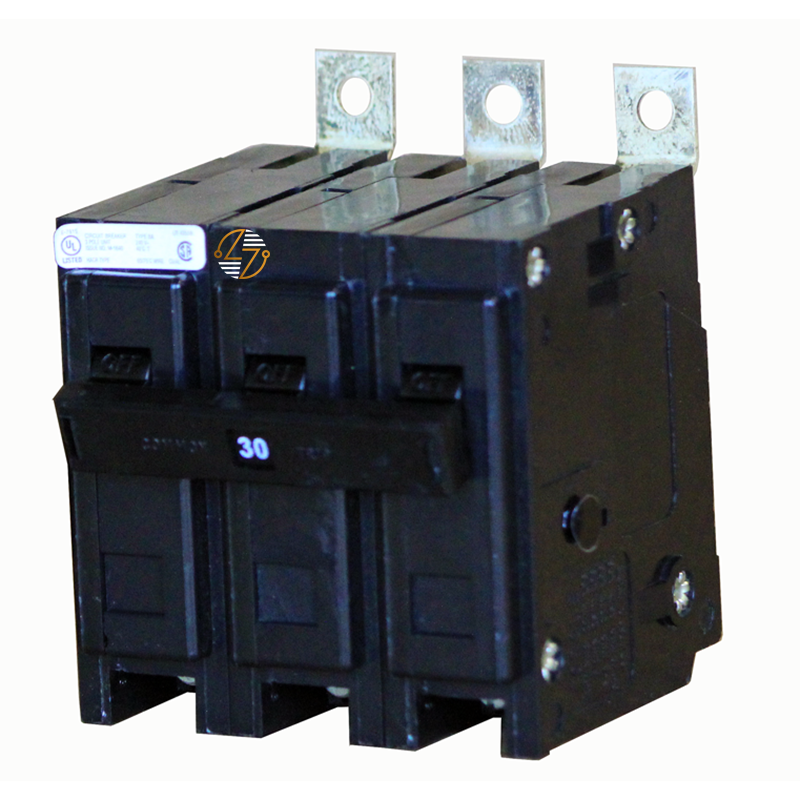

HBAX3020H - 20Amp Circuit Breaker

HBAX3020H - 20Amp Circuit Breaker

The Eaton HBAX3020H Industrial Thermal-Magnetic Circuit Breaker is a robust and reliable solution designed to meet the rigorous demands of modern electrical systems. The HBAX3020H features Eaton’s Quicklag technology, which ensures rapid response to overcurrent conditions, thus safeguarding your electrical infrastructure. With its bolt-on mounting method, this breaker is easy to install, ensuring a secure fit and optimal performance in a variety of panelboards and load centers.

Key Features and Benefits:

• High Interrupting Capacity: With a 42 kAIC rating, the HBAX3020H is capable of interrupting high fault currents, protecting your system from significant damage.
• Quicklag Technology: Provides fast response to overcurrent conditions, enhancing the safety of your electrical system.
• Bolt-On Mounting: Ensures secure and easy installation in panelboards and load centers.
• Three-Pole Design: Offers comprehensive protection across all three phases of your electrical system.
• Thermal-Magnetic Trip: Combines both thermal and magnetic tripping mechanisms for superior protection against overloads and short circuits.

Technical Specifications:

• UPC: 786679009154
• Dimensions: 3.8 in (Length) x 4.9 in (Height) x 3.2 in (Width)
• Weight: 1.1 lb
• Amperage Rating: 20A
• Voltage Rating: 240V
• Interrupting Capacity: 42 kAIC
• Number of Poles: Three
• Trip Type: Thermal-Magnetic
• Mounting Method: Bolt-On

Material Compliance and Certifications:

• UL Listed: Meets the standards for safety and performance as defined by Underwriters Laboratories.
• CSA Certified: Complies with the standards set by the Canadian Standards Association.
• HACR Rated: Suitable for use with Heating, Air Conditioning, and Refrigeration equipment.

Suitability:

• Ideal for use in both residential and commercial settings, the Eaton HBAX3020H is perfect for protecting circuits in various environments. Its high interrupting capacity makes it suitable for areas with significant fault current potential, while its robust construction ensures long-term reliability and performance. Whether you are looking to safeguard your home’s electrical system or need a dependable solution for a commercial installation, the HBAX3020H provides unmatched protection and peace of mind.
