HB3B060 - 60Amp Circuit Breaker

HB3B060 - 60Amp Circuit Breaker

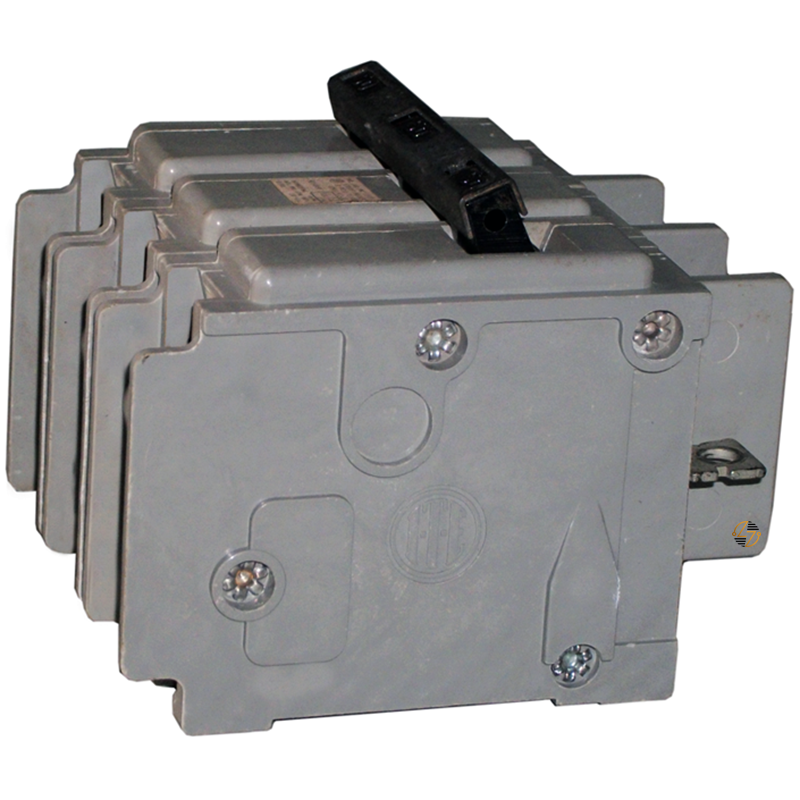

The Siemens HB3B060 is a 60 Amp, 3-pole BQ bolt-on molded case circuit breaker designed for use in compatible Siemens electrical distribution equipment. Rated for 240V AC with a 65kA interrupting capacity (AIC), this UL 489 Listed breaker provides dependable branch circuit protection in commercial, industrial, and institutional electrical systems where the original equipment specifications call for this exact configuration. Whether you're replacing a worn breaker during scheduled maintenance or restoring an existing panel to its original specifications, the HB3B060 is built to deliver the same form, fit, and function as the original device.

Key Features and Benefits

• 60 Amp continuous current rating
• Three-pole common-trip design
• Rated for 240V AC electrical systems
• Siemens BQ (HBQ) molded case circuit breaker
• Bolt-on mounting for compatible Siemens panelboards
• Load-side lugs included
• Designed for branch circuit protection
• Form, fit, and functional replacement for compatible existing equipment
• Built to last for long-term service in properly matched applications
• Active Siemens product


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HB3B060

• Manufacturer Part Number (MFN): HB3B060

• Product Family: Branch Circuit Breakers

• Breaker Type: BQ (HBQ) Molded Case Circuit Breaker

• Number of Poles: 3

• Trip Type: Common Trip

• Current Rating: 60 Amps

• Voltage Rating: 240V AC

• Interrupting Rating: 65kA AIC

• Connection Type: Bolt-On

• Application: Electrical distribution and branch circuit protection

• Load-Side Lugs: Included

• Dimensions: 3 in. D × 3 in. W × 4 in. H

• Packaging Dimensions: 2.756 in. L × 2.756 in. W × 3.937 in. H

• Net Weight: 1.124 lb.

• UPC: 783643111301

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Listed
• REACH Article 33 information available from the manufacturer
• RoHS compliance information: Not available
• SCIP information: Not available
• Install and use in accordance with applicable electrical codes and the equipment manufacturer's instructions


Where It Works Best

The Siemens HB3B060 is intended for use in compatible Siemens BQ bolt-on panelboards and electrical distribution systems that require a 60 Amp, 3-pole, 240V circuit breaker with a 65kA interrupting rating. It is well suited for maintenance, repair, and replacement applications where maintaining the original equipment's form, fit, and function is important.
