HB2B080 - 80Amp Circuit Breaker

HB2B080 - 80Amp Circuit Breaker

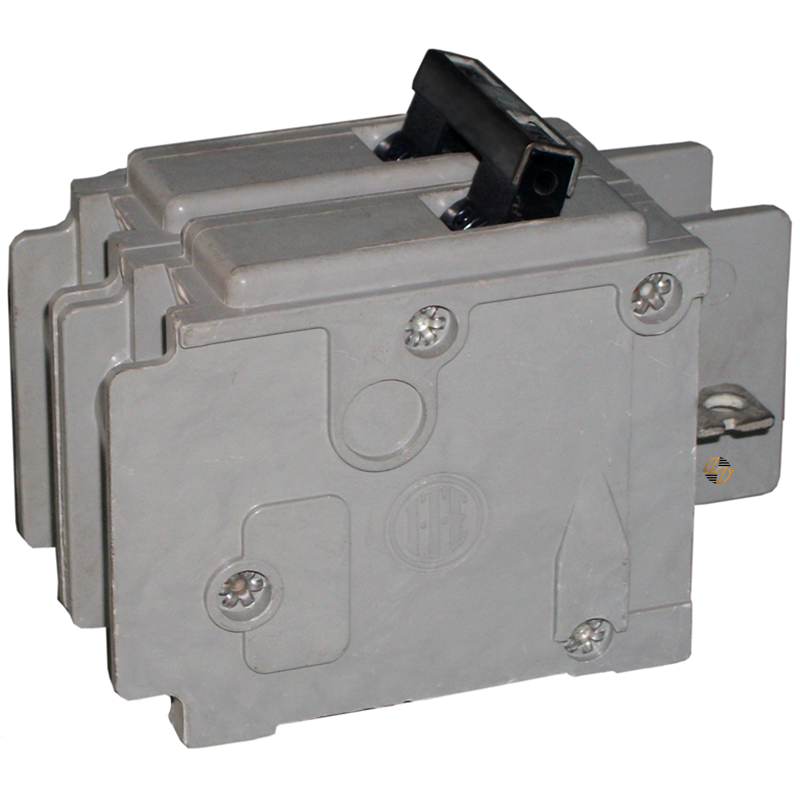

When you need a direct replacement breaker that matches your existing electrical distribution equipment, the Siemens HB2B080 is designed to deliver the correct fit and electrical ratings. This 80 Amp, 2-pole molded case circuit breaker features a bolt-on mounting design and is intended for use in compatible Siemens HBQ (BQ) panelboards.

Key Features and Benefits

• Siemens HB2B080 molded case circuit breaker
• 80 Amp continuous current rating
• Two-pole common-trip design
• 120/240 VAC operating voltage
• Bolt-on mounting for compatible Siemens panelboards
• Load-side lugs included
• Designed for branch circuit protection
• Built to last for long-term use
• Form, fit, and functional replacement for compatible Siemens HBQ (BQ) circuit breakers


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HB2B080

• Series: HBQ (BQ)

• Product Type: Molded Case Circuit Breaker

• Amperage: 80 Amps

• Poles: 2

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 65kA AIC

• Trip Type: Common Trip

• Connection Type: Bolt-On

• Application: Branch Circuit Protection

• Load-Side Lugs: Included

• Dimensions: 4 in. D × 3 in. W × 2 in. H

• Weight: 0.721 lb.

• Country of Origin: Mexico

• Product Status: Active


Material Compliance and Certifications

• UL 489 Listed
• REACH Article 33 information available from the manufacturer
• RoHS information not available from the manufacturer


Where It Works Best

The Siemens HB2B080 is intended for use in compatible Siemens HBQ (BQ) bolt-on panelboards found in residential, commercial, and light industrial electrical distribution systems. It works well as a replacement for an existing 80 Amp, 2-pole bolt-on circuit breaker with matching voltage, interrupting capacity, and mounting configuration. As with any replacement breaker, compatibility with the installed panelboard should always be confirmed before installation.
