HB2B060 - 60Amp Circuit Breaker

HB2B060 - 60Amp Circuit Breaker

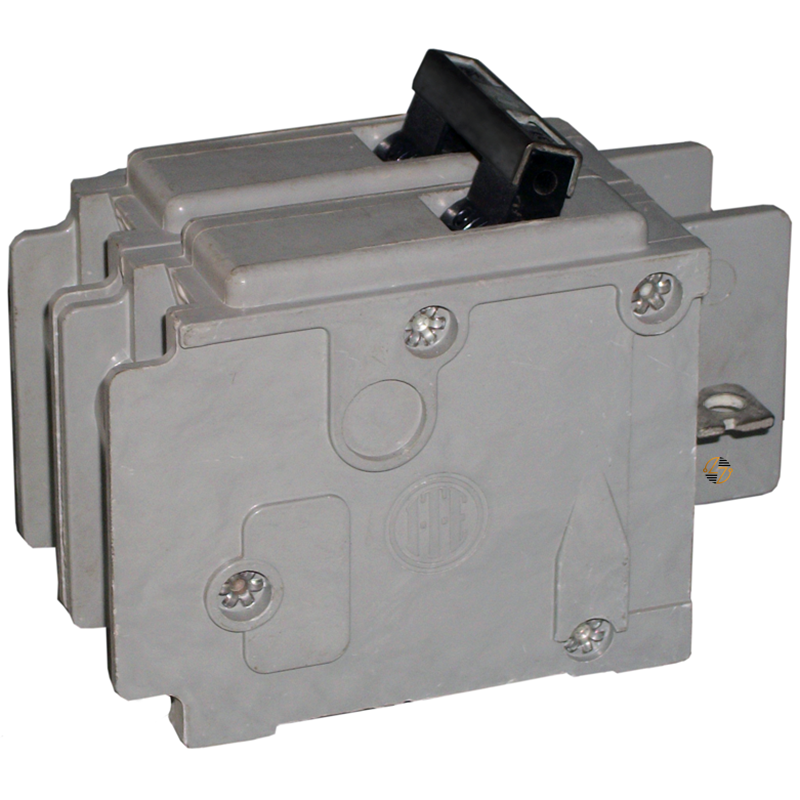

The Siemens HB2B060 is a 60 Amp, 2-pole BQ bolt-on circuit breaker designed for branch circuit protection in compatible Siemens electrical distribution equipment. Rated for 120/240V AC with a 65kA interrupting capacity, this molded case circuit breaker helps protect wiring and connected equipment from overloads and short circuits.

Whether you're replacing a failed breaker during maintenance or sourcing a matching unit for an existing system, this breaker is designed to provide the same form, fit, and function as the original.

Key Features and Benefits

• 60 Amp continuous current rating
• Two-pole common-trip operation
• 120/240V AC rating
• 65kA interrupting capacity (AIC)
• BQ (HBQ) bolt-on molded case circuit breaker
• Bolt-on electrical connection
• Load-side lugs included
• Designed for branch circuit protection
• Built to last for long-term service
• Form, fit, and functional replacement for compatible Siemens BQ circuit breakers


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HB2B060

• Manufacturer Part Number (MPN): HB2B060

• Product Family: Branch Circuit Breakers

• Series/Type: BQ (HBQ)

• Poles: 2

• Trip Type: Common Trip

• Current Rating: 60 Amps

• Voltage Rating: 120/240V AC

• Interrupting Rating: 65kA AIC

• Connection Type: Bolt-On

• Application: Branch Circuit Protection

• Load-Side Lugs: Included

• Dimensions: 4 in. D × 3 in. W × 2 in. H

• Weight: 0.661 lb.

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Listed
• REACH Article 33 information available from the manufacturer
• RoHS compliance information not available from the manufacturer


Where It Works Best

The Siemens HB2B060 is commonly used in compatible Siemens BQ bolt-on panelboards found in residential, commercial, and light industrial electrical systems. It's a good choice when replacing an existing 60 Amp, 2-pole breaker with matching voltage, interrupting capacity, and mounting requirements.
