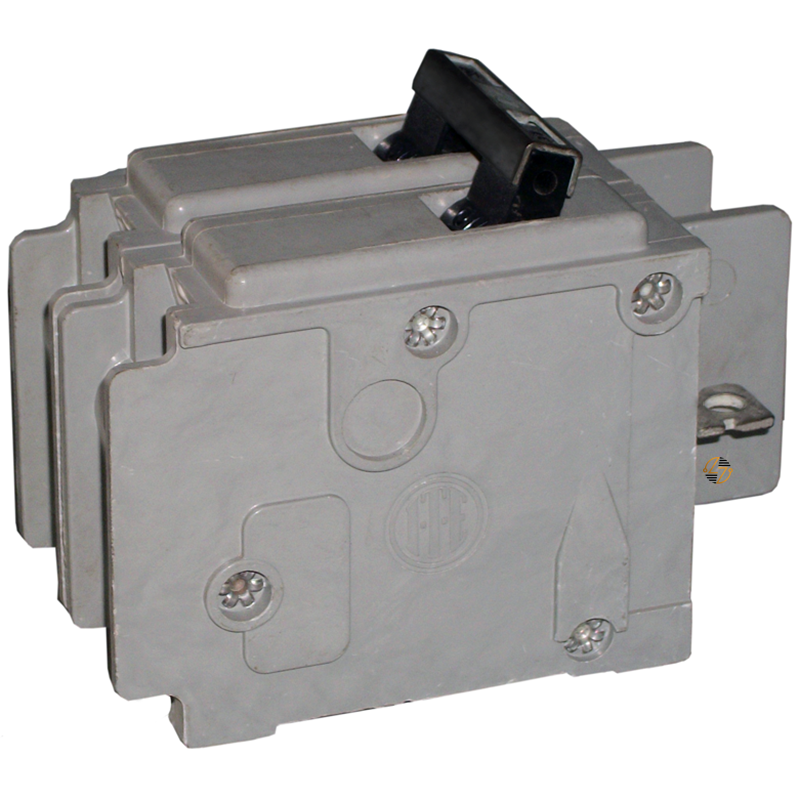

HB2B050 - 50Amp Circuit Breaker

HB2B050 - 50Amp Circuit Breaker

When you need a replacement circuit breaker that matches the original equipment, the Siemens HB2B050 is designed to deliver the proper fit and electrical ratings. This 50 Amp, 2-pole BQ bolt-on molded case circuit breaker is built for branch circuit protection in compatible Siemens panelboards and electrical distribution systems. Its common-trip design disconnects both poles simultaneously whenever an overload or short circuit occurs, helping protect connected conductors and equipment.

Key Features and Benefits

• 50 Amp continuous current rating
• Two-pole common-trip protection
• Rated for 120/240V AC applications
• 65kA interrupting capacity (AIC)
• Bolt-on BQ design for compatible Siemens panelboards
• Molded case construction for branch circuit protection
• Load-side lugs included
• Built to last for long-term service
• Designed as a form, fit, and functional replacement for compatible Siemens BQ breakers


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HB2B050

• Manufacturer Part Number (MPN): HB2B050

• Product Family: Branch Circuit Breakers

• Circuit Breaker Type: BQ (HBQ)

• Number of Poles: 2

• Trip Type: Common Trip

• Amperage: 50 Amps

• Voltage Rating: 120/240V AC

• Interrupting Rating: 65kA AIC

• Connection Type: Bolt-On

• Application: Branch Circuit Protection

• Electrical Distribution Use: Yes

• Load-Side Lugs: Included

• Dimensions: 4 in. D × 3 in. W × 2 in. H

• Weight: 0.617 lb.

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Listed
• REACH Article 33 information available from the manufacturer
• RoHS compliance information not specified by the manufacturer


Where It Works Best

The Siemens HB2B050 is intended for use in compatible Siemens BQ bolt-on panelboards serving residential, commercial, and light industrial electrical distribution systems. It is well suited for replacing an existing 50 Amp, 2-pole breaker with matching voltage, interrupting capacity, and mounting requirements.
