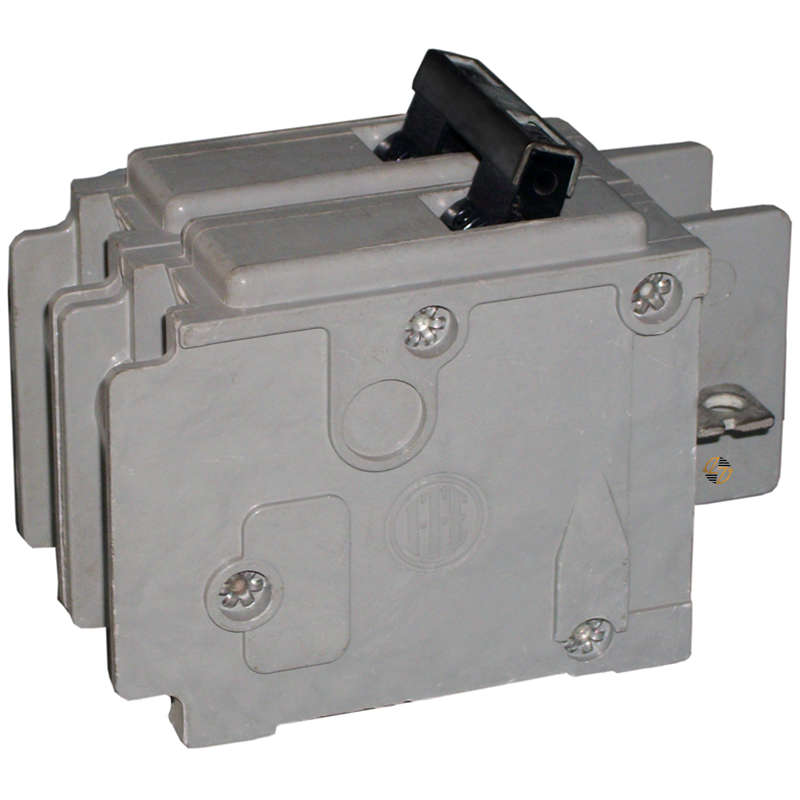

HB2B030 - 30Amp Circuit Breaker

HB2B030 - 30Amp Circuit Breaker

The HB2B030 is a 30 Amp, 2-pole BQ bolt-on circuit breaker intended for electrical panels and distribution equipment that require this exact breaker type. Rated for 120/240V AC with a 65kA interrupting capacity, it provides branch circuit protection while preserving the original form, fit, and function of compatible systems. Its common-trip design opens both poles at the same time when a fault occurs, and the bolt-on connection keeps your breaker firmly secured in the panel.

Key Features and Benefits

• 30 Amp continuous current rating
• Two-pole common-trip design
• Rated for 120/240V AC applications
• BQ bolt-on connection for compatible panelboards
• Load-side lugs included
• Molded case construction for branch circuit protection
• Intended as a form, fit, and functional replacement
• Built to last in properly matched electrical systems
• Helps preserve the existing panel layout during replacement


Technical Specifications

• Catalog Number: HB2B030

• Manufacturer Part Number: HB2B030

• Manufacturer: Siemens

• Product Family: Branch Circuit Breakers

• Product Type: Molded Case Circuit Breaker

• Breaker Design: BQ

• Number of Poles: 2

• Trip Configuration: Common Trip

• Amperage Rating: 30 Amps

• Voltage Rating: 120/240V AC

• Interrupting Capacity: 65kA AIC

• Connection Type: Bolt-On

• Application: Electrical distribution and branch circuit protection

• Load-Side Lugs: Included

• Dimensions: 3 in. D × 2 in. W × 4 in. H

• Packaging Dimensions: 2.756 in. L × 1.969 in. W × 3.937 in. H

• Net Weight: 1.102 lb.

• UPC: 783643111189

• Country of Origin: Mexico


Material Compliance and Certifications

The HB2B030 is listed to UL 489, the standard identified in the published product data for this molded case circuit breaker. REACH information is available from the manufacturer. RoHS and SCIP details were not provided in the supplied specifications.

Where It Works Best

• Compatible BQ bolt-on panelboards
• Residential electrical distribution systems
• Commercial electrical panels
• Industrial electrical distribution equipment
• 120/240V branch circuits requiring common-trip protection
• Maintenance and repair projects
• Replacement applications calling for a 30 Amp, 2-pole bolt-on breaker
• Existing systems where the original breaker type and ratings must be matched closely
