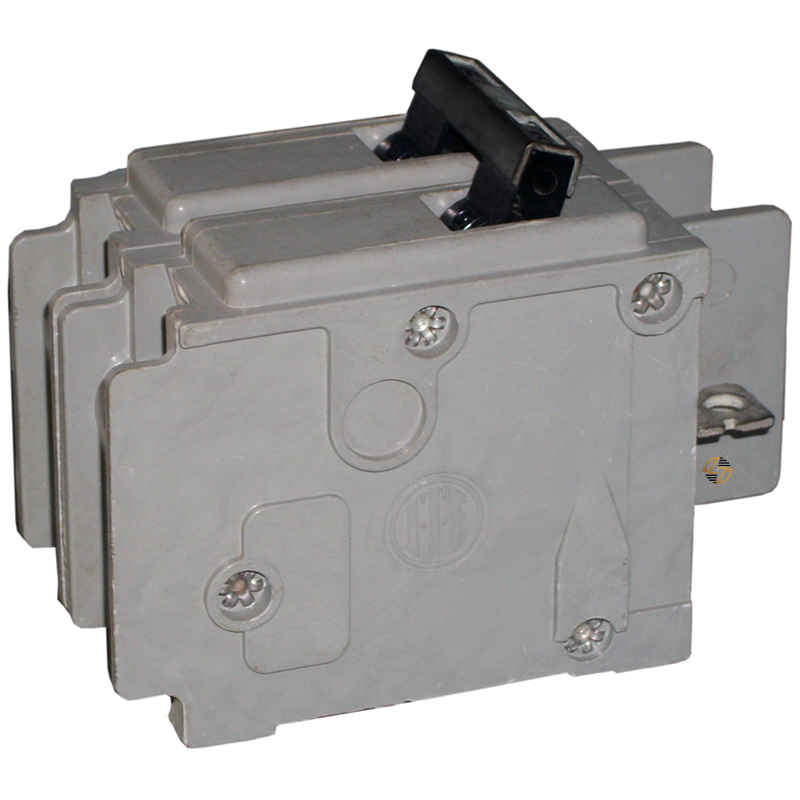

HB2B015 - 15Amp Circuit Breaker

HB2B015 - 15Amp Circuit Breaker

Whether you're replacing a failed breaker or servicing an existing panel, the HB2B015 is designed to match the original equipment's specifications. This 15 Amp, 2-pole BQ bolt-on circuit breaker is rated for 120/240V AC and features a 65kA interrupting capacity for applications that require those exact electrical ratings. Its common-trip design opens both poles together when a fault occurs, helping protect multi-wire branch circuits and other compatible installations.

Key Features and Benefits

• 15 Amp continuous current rating
• Two-pole common-trip configuration
• Rated for 120/240V AC systems
• 65kA interrupting capacity (AIC)
• BQ bolt-on design for compatible panelboards
• Load-side lugs included
• Designed as a form, fit, and functional replacement
• Built to last for dependable service in compatible installations
• Helps maintain the original panel configuration when replacing an existing breaker


Technical Specifications

• Catalog Number: HB2B015

• Manufacturer Part Number (MFN): HB2B015

• Manufacturer: Siemens

• Product Family: Branch Circuit Breakers

• Product Type: Molded Case Circuit Breaker

• Breaker Series: BQ

• Poles: 2

• Trip Type: Common Trip

• Amperage Rating: 15 Amps

• Voltage Rating: 120/240V AC

• Interrupting Capacity: 65kA AIC

• Connection Type: Bolt-On

• Application: Branch circuit protection

• Load-Side Lugs: Included

• Dimensions: 4 in. D × 3 in. W × 2 in. H

• Packaging Dimensions: 3.937 in. × 2.756 in. × 1.969 in.

• Net Weight: 0.661 lb.

• UPC: 783643111165

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Listed
• Manufactured for applications requiring a UL 489 listed molded case circuit breaker
• REACH information is available from the manufacturer
• RoHS compliance information was not provided in the published specifications
• SCIP information was not provided in the published specifications


Where It Works Best

• Compatible BQ bolt-on panelboards
• Residential electrical distribution systems
• Commercial electrical panels
• Industrial electrical distribution equipment
• Multi-wire branch circuits requiring a common-trip breaker
• Routine maintenance and repair projects
