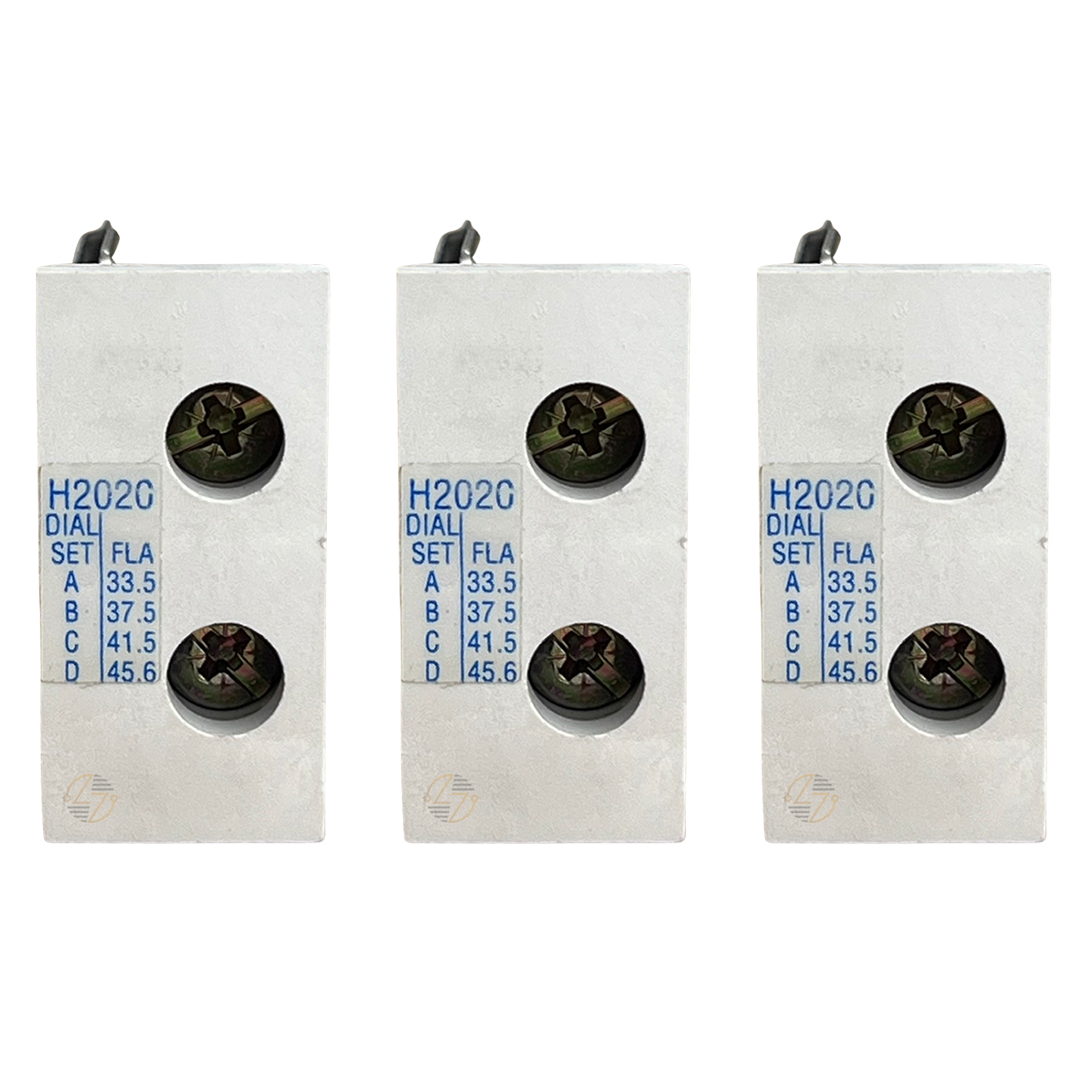

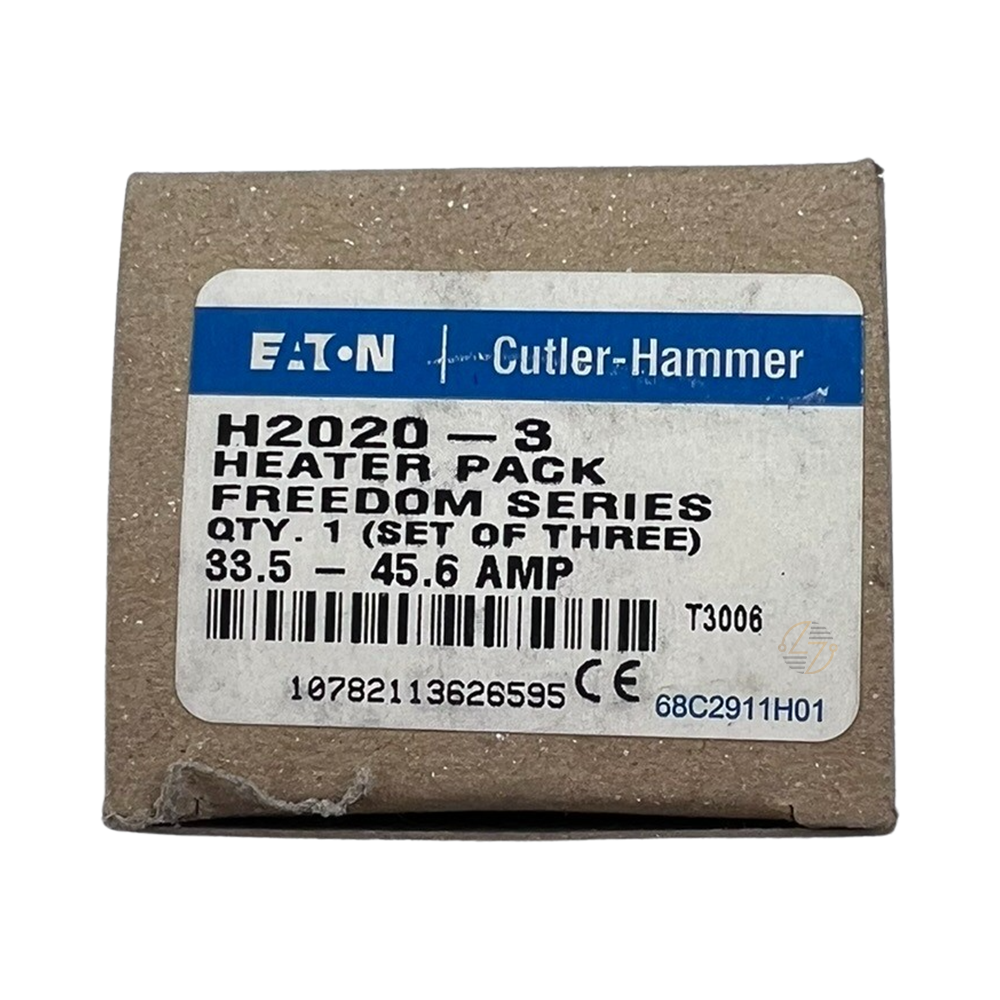

H2020-3 - Eaton Thermal Unit

H2020-3 - Eaton Thermal Unit

Meet the H2020‑3 Motor Control Breaker, a compact yet powerful protection device engineered for motor-driven systems. Whether you’re safeguarding pumps, conveyors, HVAC compressors, or production machinery, this breaker ensures your motors stay protected without hogging panel space. It’s built for dependable everyday service, resisting overloads, short circuits, and heat stress so that your operations run smoothly and predictably.

Key Features and Benefits

• Motor-Specific Protection: Calibrated to guard against motor overloads and faults, keeping your equipment safe and prolonging motor life.
• Space-Saving Design: Measures just 2.50″ H × 2.00″ W × 2.00″ D, making it perfect for installations where every inch counts.
• Easy Integration: Mounts cleanly in standard control panels and works alongside other motor controls without fuss.
• Steady Performance: With a 0.3 rating (amps/hp, or as matched to your control system), it maintains reliable fault response under normal loads.
• Lower Operating Costs: By catching electrical problems early, it cuts down on motor repairs, unplanned downtime, and replacement parts.

Technical Specifications

• Part Number: H2020‑3
• Application: Motor control & protection
• Current / Rating: 0.3 (or as matched to your system)
• Dimensions:
  • Height: 2.50″
  • Width: 2.00″
  • Depth: 2.00″
• Mounting Style: Standard panel / control enclosure mount
• Electrical Capacity: Designed for motor overload and short‑circuit protection

Material Compliance and Certifications

• UL Listed / CSA Certified: Manufactured to meet stringent North American safety standards for motor protective devices.
• RoHS Compliant: Free from restricted materials such as lead or mercury.
• High-Quality Internal Components: Uses corrosion-resistant alloys in contacts and internal parts to ensure longevity and stable performance.
• Tested Under Load: Each unit undergoes thermal‐overload and fault‐current testing to validate its protection capabilities.

Where It Works Best

• Industrial Motor Systems – On assembly lines, conveyors, mixers, fans, compressors, and other machinery where continuous uptime matters.
• Manufacturing Environments – Especially valuable in production lines where motor failures must be prevented proactively.
• Commercial HVAC & Climate Control – Safeguards fans, blowers, and compressors from overloads or surges in power.
• Compact or Crowded Panels – Ideal when panel space is tight but protection can’t be compromised.
