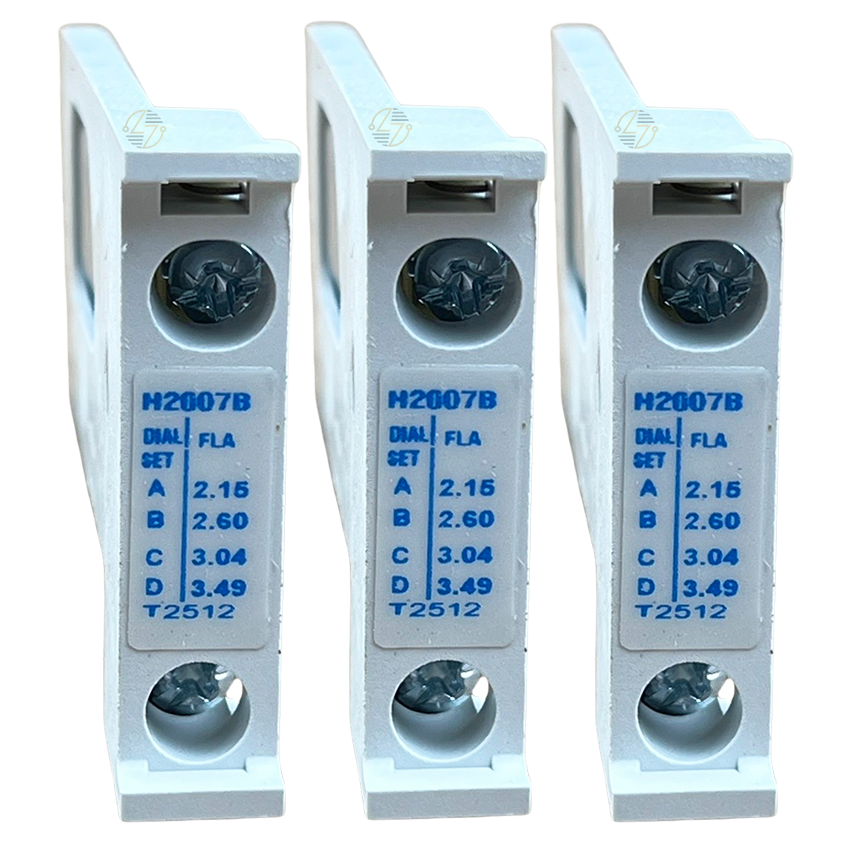

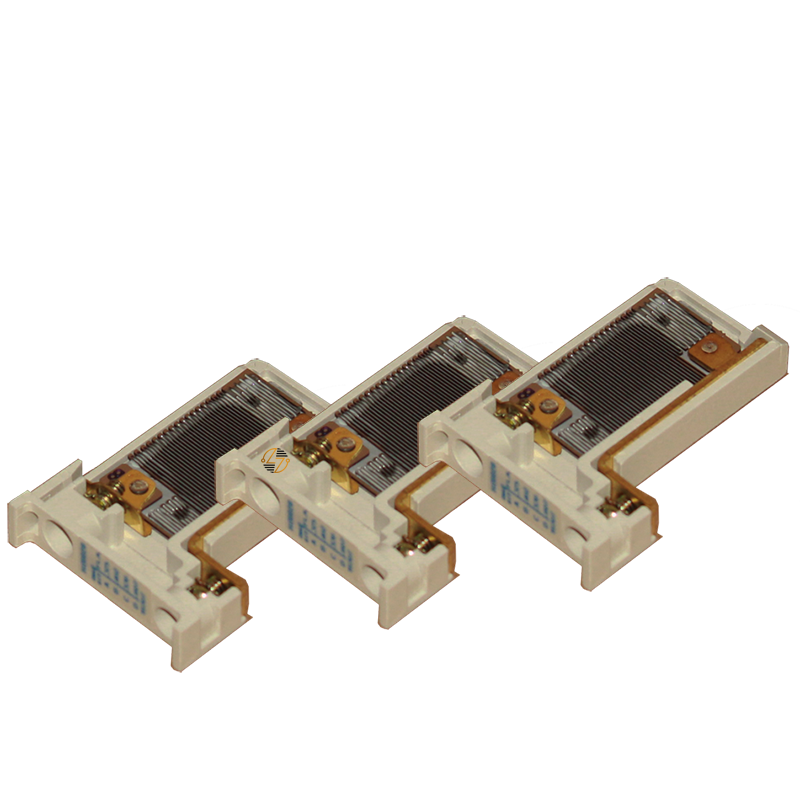

When protection really matters, the Eaton H2007B‑3 Thermal Unit steps in quietly and reliably. This 0.30 amp thermal overload device is engineered to guard motors and control circuits against damaging overcurrent conditions—without hogging space in your control panel. Its compact size and proven performance mean fewer surprises in mission‑critical applications.

Key Features and Benefits

• Sensitive overload detection: With a 0.30 A rating, the unit responds swiftly to minor overcurrent events, helping prevent damage before it cascades into a larger failure.
• Space-saving footprint: Measuring just 2.50″ × 2.00″ × 2.00″ (H × W × D), it easily fits into tight panel layouts and dense enclosures.
• Straightforward installation: Clear, easy-to-read labels and a standard mounting footprint make swapping or installing simple and hassle-free.
• Equipment safeguarding: Stops faults from traveling downstream, protecting not only the motor but also connected electronics and relays downstream.

Technical Specifications

• Part Number: H2007B‑3

• Current Rating: 0.30 A (thermal)

• Application: Motor control, overload protection

• Dimensions (H × W × D): 2.50″ × 2.00″ × 2.00″

• Mounting Type: Standard motor control panel / DIN‑adaptable


Material Compliance and Certifications

• Fire‑resistant materials: Constructed from thermoset or high-performance thermoplastic compounds that resist degradation during overheat events.
• Safety certification: UL‑recognized or equivalent industry safety approval ensures it conforms to key motor protection standards.
• RoHS compliant: Free from hazardous substances, aligning with modern environmental and regulatory expectations.
• Durable connections: High-quality terminals maintain firm contact and minimize heat buildup, even under prolonged operation.

Where It Works Best

• Industrial motor control cabinets in small-to-medium gear systems
• Automated machinery—conveyors, pumps, fans, mixers
• HVAC equipment, food processing machinery, irrigation systems
• Situations where panel space is limited but dependable protection is nonnegotiable

This thermal unit delivers reliable protection in a compact form, bringing confidence to operations where consistent motor safeguarding is essential.
