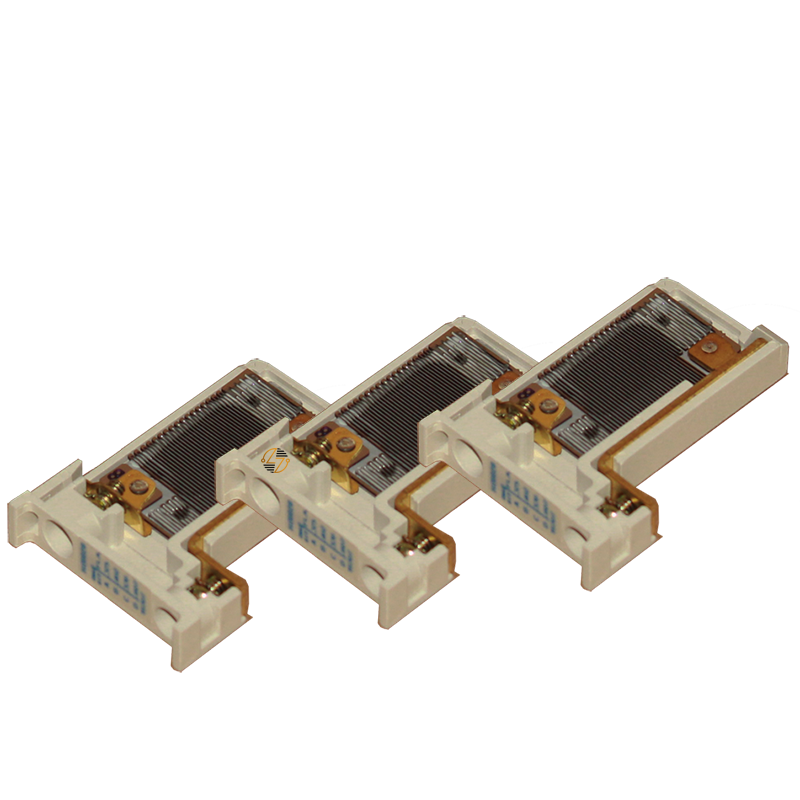

H2002B-3 - Eaton Thermal Unit

H2002B-3 - Eaton Thermal Unit

When a motor overload occurs, having the correct heater coil installed can make all the difference. The Eaton H2002B-3 Freedom Heater Coil is designed for use with compatible Eaton Freedom motor starters and overload relays, helping protect motors from sustained overload conditions before damage occurs. Whether you're replacing a worn heater coil during scheduled maintenance or restoring an existing motor control system, the H2002B-3 delivers the dependable fit and performance maintenance professionals expect from genuine Eaton components.

Key Features and Benefits

• Genuine Eaton Freedom heater coil
• Class 20 standard trip overload protection
• Adjustable full-load current settings from 0.375A to 0.607A
• Designed for compatible NEMA and IEC Freedom starters
• Compatible with 32A and 75A overload relays
• Compact size allows for quick replacement during maintenance
• Helps protect motors from damage caused by prolonged overload conditions
• Manufactured for reliable fit and consistent performance


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: H2002B-3

• UPC: 782113967486

• Product Type: Heater Coil

• Series: Freedom

• Type: Definite Purpose Heater Pack

• Design: NEMA, IEC

• Trip Type: Class 20 Standard Trip

• Full Load Current Settings:
  • Position A: 0.375A
  • Position B: 0.452A
  • Position C: 0.530A
  • Position D: 0.607A
• Compatible Overload Relays: 32A or 75A

• Compatible Starter Sizes:
  • NEMA Sizes 00–0 (Series C)
  • NEMA Sizes 1–2 (Series B)
  • IEC Sizes A–F (Series C)
  • IEC Sizes G–K (Series B)
• Dimensions: 1.8 in. L × 1.7 in. W × 3.3 in. H

• Weight: 0.2 lb


Material Compliance and Certifications

The Eaton H2002B-3 is UL Listed and CSA Certified, meeting widely recognized North American safety standards. Using the correct heater coil with the appropriate starter and motor full-load current helps maintain proper overload protection and reliable system operation.

Where It Works Best

The H2002B-3 is commonly found in motor control systems used throughout commercial and industrial facilities. It's a good fit for equipment such as pumps, conveyors, compressors, HVAC systems, fans, and other machinery that depends on Eaton Freedom starters for motor protection.
