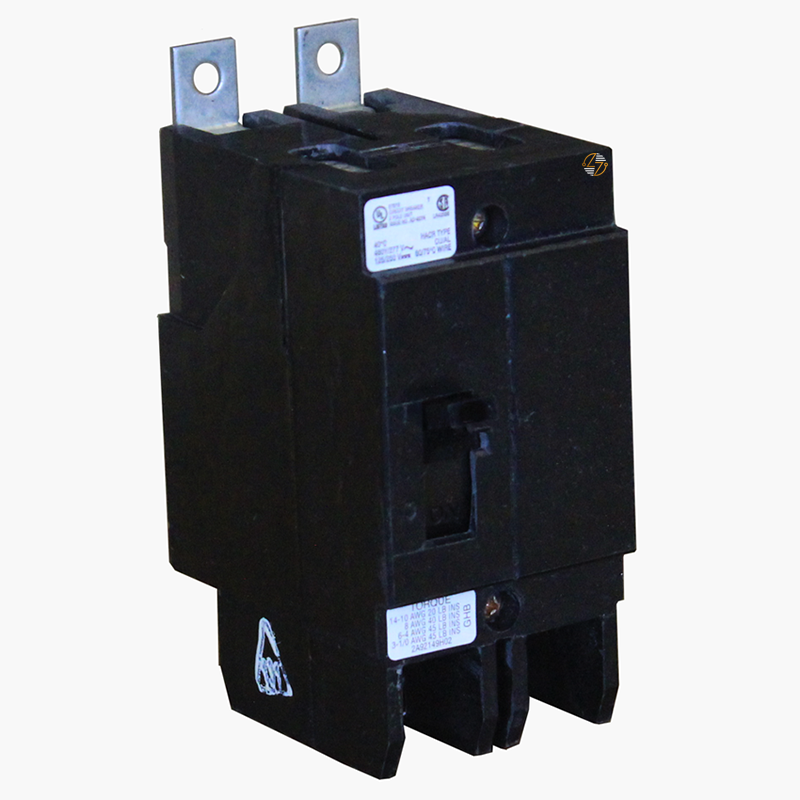

GHB2090 - 90Amp Circuit Breaker

GHB2090 - 90Amp Circuit Breaker

The Eaton GHB2090 is a high-performance, reliable circuit breaker from the renowned Series C G-frame family, designed to deliver superior protection and operational efficiency. Its fixed thermal and magnetic trip types ensure precise and reliable tripping characteristics, making it an ideal choice for both residential and industrial applications.

Key Features and Benefits:

• High Current Rating: With a 90Amp rating, the GHB2090 handles substantial electrical loads, suitable for various heavy-duty applications.
• Versatile Voltage Compatibility: Supports 480Y/277 Vac and 125/250 Vdc, accommodating diverse electrical setups.
• Fixed Thermal and Magnetic Trip: Ensures consistent protection against overloads and short circuits, enhancing system reliability.
• Durable Construction: Built to withstand harsh operating conditions, ensuring long-term durability and reliability.

Technical Specifications:

• Series: Eaton Series C G-frame
• Current Rating: 90Amp
• Voltage Rating: 480Y/277 Vac, 125/250 Vdc
• Frequency: 50/60 Hz
• Trip Type: Fixed Thermal, Fixed Magnetic
• Poles: Two-pole
• Interrupt Rating: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac
• Dimensions: 2.63 in (L) x 4 in (H) x 2 in (W)
• Weight: 1.15 lb

Material Compliance and Certifications:

• Compliance: The Eaton GHB2090 is fully UL listed, ensuring it meets the rigorous safety and performance standards set by Underwriters Laboratories. Additionally, it complies with Federal Specifications Classification WC375B, reflecting its adherence to national safety regulations. These certifications underscore Eaton's dedication to providing products that are not only efficient but also safe and reliable for both residential and industrial use.

Suitability:

• Ideal for use in various electrical systems, the Eaton GHB2090 circuit breaker is perfect for residential, commercial, and industrial applications requiring robust and reliable circuit protection. Its high interrupt rating makes it suitable for environments where high fault currents are expected, ensuring the safety and protection of electrical circuits and equipment. Whether you're upgrading an existing system or installing a new one, the GHB2090 offers the reliability and performance you need to maintain electrical safety and efficiency.
