GHB2070 - 70Amp Circuit Breaker

GHB2070 - 70Amp Circuit Breaker

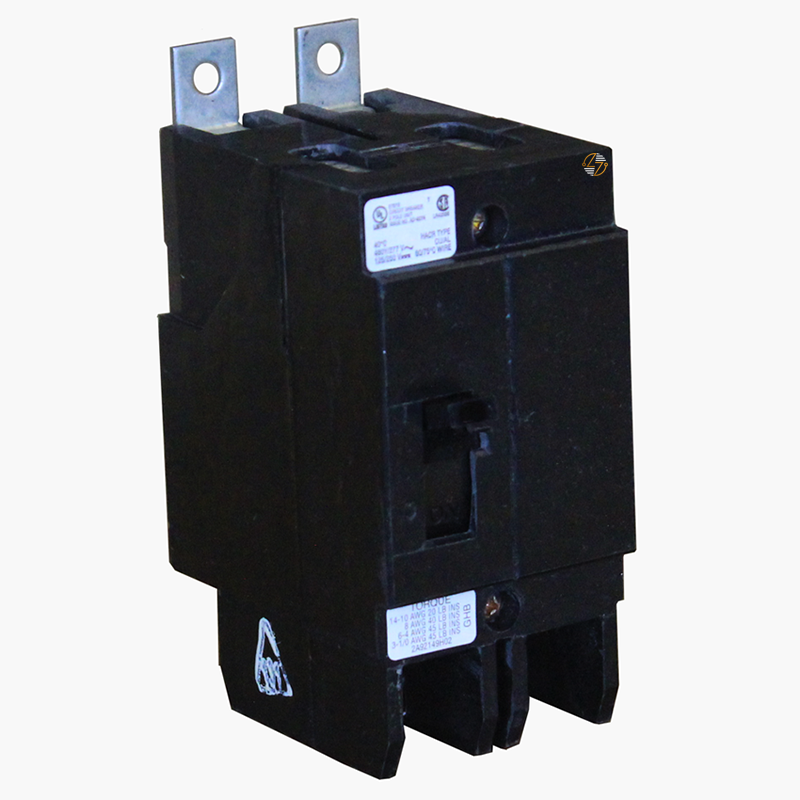

The Eaton GHB2070 is a high-performance molded case circuit breaker from Eaton's Series C lineup. Designed for both residential and commercial applications, this G-frame breaker offers robust protection and reliability. With a two-pole configuration and a 70-ampere rating, it ensures optimal performance in a variety of electrical systems. Its fixed thermal and magnetic trip units provide precise and reliable tripping characteristics, ensuring safety and protection for your electrical circuits.

Key Features and Benefits:

• High Interrupting Capacity: The GHB2070 offers a superior interrupting capacity of 65 kAIC at 240 VAC and 14 kAIC at 480Y/277 VAC, providing robust protection against electrical faults.
• Fixed Thermal and Magnetic Trips: The fixed thermal and magnetic trip units ensure reliable and accurate protection against overloads and short circuits, minimizing downtime and enhancing safety.
• Versatile Voltage Compatibility: Suitable for use with both AC and DC voltage systems, the GHB2070 can handle up to 480Y/277 VAC and 125/250 VDC, offering flexibility for diverse applications.

Technical Specifications:

• Current Rating: 70Amp
• Voltage Rating: 480Y/277 VAC, 125/250 VDC
• Frequency: 50/60 Hz
• Interrupting Capacity: 65 kAIC at 240 VAC, 14 kAIC at 480Y/277 VAC
• Trip Type: Fixed thermal, fixed magnetic
• Number of Poles: Two-pole
• Dimensions: 2.63 in (L) x 4 in (H) x 2 in (W)
• Weight: 1.15 lbs

Material Compliance and Certifications:

• Compliance: The Eaton GHB2070 circuit breaker complies with Federal Specifications Classification WC375B and is UL Listed, guaranteeing that it meets rigorous safety and quality standards.

Suitability:

• Ideal for a wide range of applications, the Eaton GHB2070 circuit breaker is perfect for contractors and electricians working on residential, commercial, and industrial projects. Its high interrupting capacity and versatile voltage compatibility make it suitable for protecting electrical circuits in various environments, ensuring reliable and safe operation.
