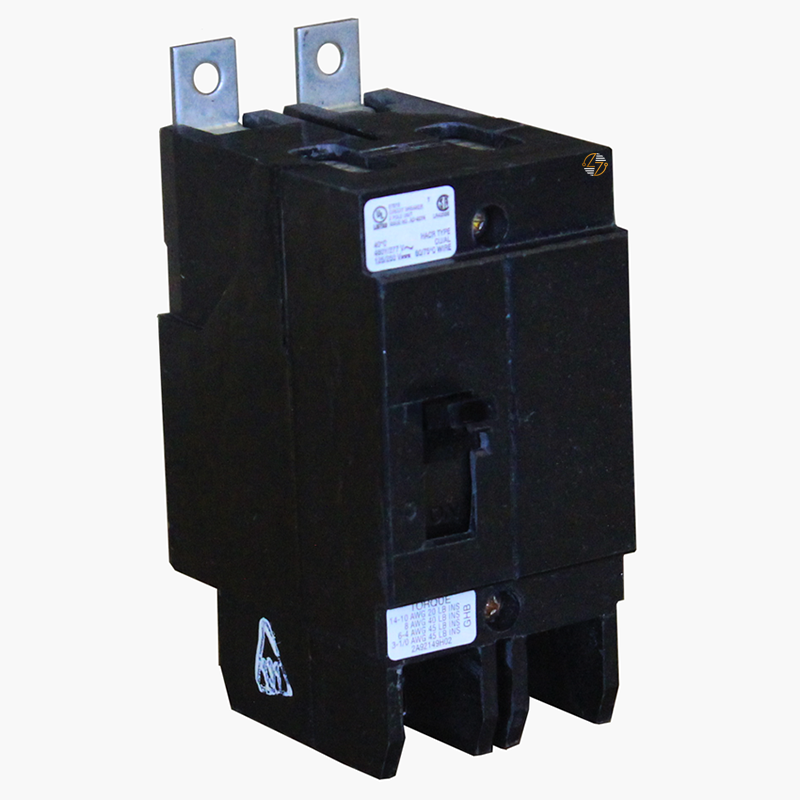

GHB2035 - 35Amp Circuit Breaker

GHB2035 - 35Amp Circuit Breaker

The Eaton GHB2035 Series C Molded Case Circuit Breaker is a robust and reliable solution designed for demanding electrical applications. Featuring a G-frame structure, this circuit breaker provides superior performance with fixed. This circuit breaker operates efficiently within a frequency range of 50/60 Hz, ensuring consistent and reliable performance across various applications.

Key Features and Benefits:

• High Interrupting Capacity: With a 65 kAIC at 240 Vac and 14 kAIC at 480Y/277 Vac, the GHB2035 provides exceptional fault current interruption capabilities, ensuring the safety and protection of your electrical systems.
• Versatile Application: Designed for both AC and DC circuits, this breaker supports a wide voltage range (480Y/277 Vac, 125/250 Vdc), making it adaptable to various electrical setups.
• Reliable Protection: Equipped with fixed thermal and magnetic trip units, the GHB2035 ensures consistent protection against overloads and short circuits.
• Compact and Durable Design: With a G-frame structure, this circuit breaker combines durability with a compact form factor, ideal for space-constrained installations.

Technical Specifications:

• Amperage Rating: 35Amp
• Voltage Rating: 480Y/277 Vac, 125/250 Vdc
• Frequency: 50/60 Hz
• Interrupting Capacity: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac
• Number of Poles: 2
• Trip Type: Fixed Thermal, Fixed Magnetic
• Dimensions: 2.63 in (Length/Depth) x 4 in (Height) x 2 in (Width)
• Weight: 1.1 lb

Material Compliance and Certifications:

• Compliance: The Eaton GHB2035 is UL Listed, ensuring it adheres to stringent safety and performance standards. Additionally, it complies with Federal Specifications Classification WC375B, further attesting to its reliability and quality.

Suitability:

• The Eaton GHB2035 is ideal for commercial and industrial applications where reliable circuit protection is crucial. Its high interrupting capacity makes it suitable for environments with significant fault current levels, such as manufacturing plants, data centers, and large commercial buildings. The dual voltage rating ensures flexibility in a wide range of electrical systems, providing dependable performance in both new installations and retrofits.
