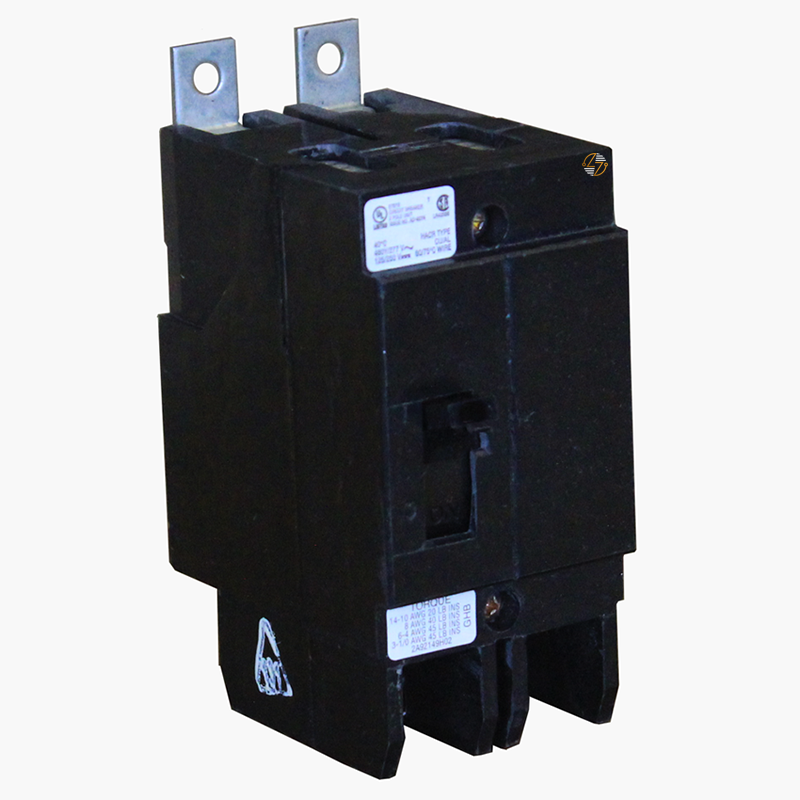

GHB2025 - 25Amp Circuit Breaker

GHB2025 - 25Amp Circuit Breaker

The Eaton GHB2025 is a top-tier molded case circuit breaker designed to deliver unparalleled performance and safety in electrical distribution systems. As part of Eaton's esteemed Series C G-frame line, this circuit breaker is engineered with fixed thermal and magnetic trip units to provide robust protection against overloads and short circuits.

Key Features and Benefits:

• High Performance: The GHB2025 features a high interrupting capacity of 65 kAIC at 240 Vac and 14 kAIC at 480Y/277 Vac, ensuring reliable protection in high-fault environments.
• Durability: Constructed with Eaton's superior materials and engineering standards, this circuit breaker promises long-lasting performance and minimal maintenance requirements.
• Versatility: Suitable for a wide range of applications including motor protection, power distribution, and more, thanks to its compatibility with both AC and DC systems.
• Compact Design: Its small footprint allows for efficient use of space in electrical panels, making it ideal for modern, space-constrained installations.
• Ease of Installation: The GHB2025 is designed for quick and straightforward installation, reducing downtime and labor costs.

Technical Specifications:

• Amperage Rating: 25Amp
• Voltage Rating: 480Y/277 Vac, 125/250 Vdc
• Frequency Rating: 50/60 Hz
• Interrupting Rating: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Number of Poles: 2
• Dimensions: 2.63 in (L) x 3 in (H) x 2 in (W)
• Weight: 1.21 lb

Material Compliance and Certifications:

• Certifications: UL Listed, meeting stringent safety and performance standards.
• Federal Specifications Classification: WC375B

Suitability:

• The Eaton GHB2025 circuit breaker is ideal for electrical contractors, engineers, and facility managers who demand high reliability and performance in their electrical distribution systems. Its robust design makes it suitable for commercial buildings, industrial facilities, and other critical infrastructure where dependable circuit protection is paramount. Whether used in new installations or as a replacement unit, the GHB2025 offers unmatched protection and peace of mind, ensuring that electrical systems operate safely and efficiently.
