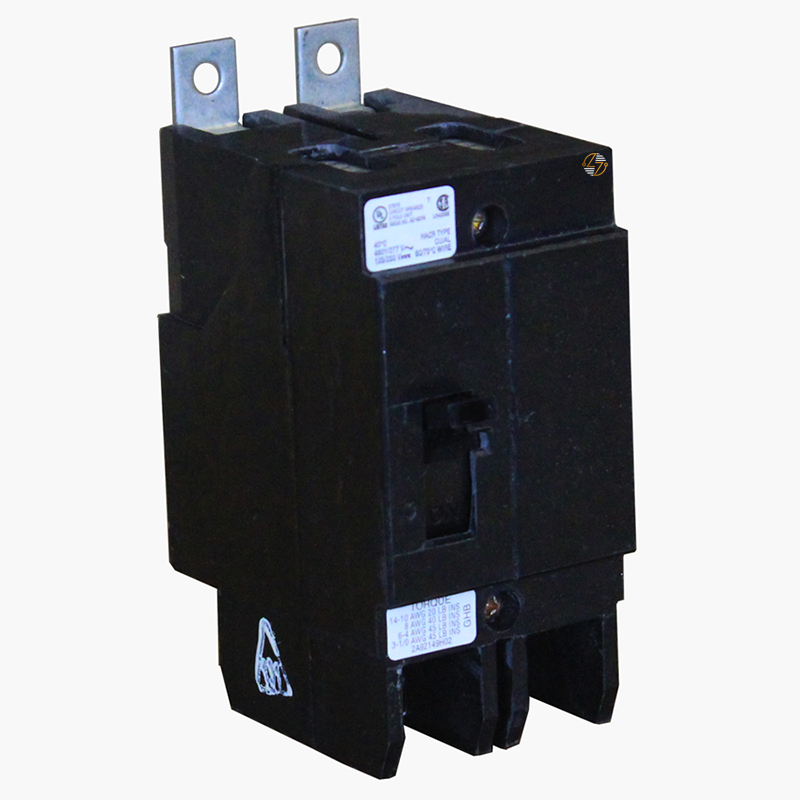

GHB2020 - 20Amp Circuit Breaker

GHB2020 - 20Amp Circuit Breaker

Introducing the Eaton GHB2020 Series C G-Frame Molded Case Circuit Breaker, a robust and reliable solution designed to meet the demanding needs of commercial and industrial electrical systems. This top-tier circuit breaker provides exceptional protection with its fixed thermal and fixed magnetic trip type, ensuring consistent and precise operation under various electrical loads.

Key Features and Benefits:

• Fixed Thermal and Magnetic Trip Type: Ensures accurate and reliable circuit protection, preventing damage from overcurrent and short circuits.
• High Interrupt Rating: Capable of interrupting up to 65 kAIC at 240 Vac and 14 kAIC at 480Y/277 Vac, providing superior protection in high fault conditions.
• Versatile Voltage Rating: Operates at 480Y/277 Vac and 125/250 Vdc, suitable for diverse electrical systems.

Technical Specifications:

• Current Rating: 20Amp
• Voltage Rating: 480Y/277 Vac, 125/250 Vdc
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Poles: Two-pole
• Dimensions: 2.63 in (Length) x 4 in (Height) x 2 in (Width)
• Weight: 0.95 lb

Material Compliance and Certifications:

• Compliance: The Eaton GHB2020 circuit breaker complies with Federal Specifications Classification WC375B and is UL Listed, guaranteeing adherence to high standards of safety and performance. Its design ensures material compliance, making it suitable for a variety of commercial and industrial applications.

Suitability:

• The Eaton GHB2020 is ideal for use in commercial buildings, industrial facilities, and any application requiring dependable circuit protection. Its versatile voltage rating and high interrupt capacity make it suitable for protecting circuits in lighting systems, motor control centers, and other critical infrastructure.
