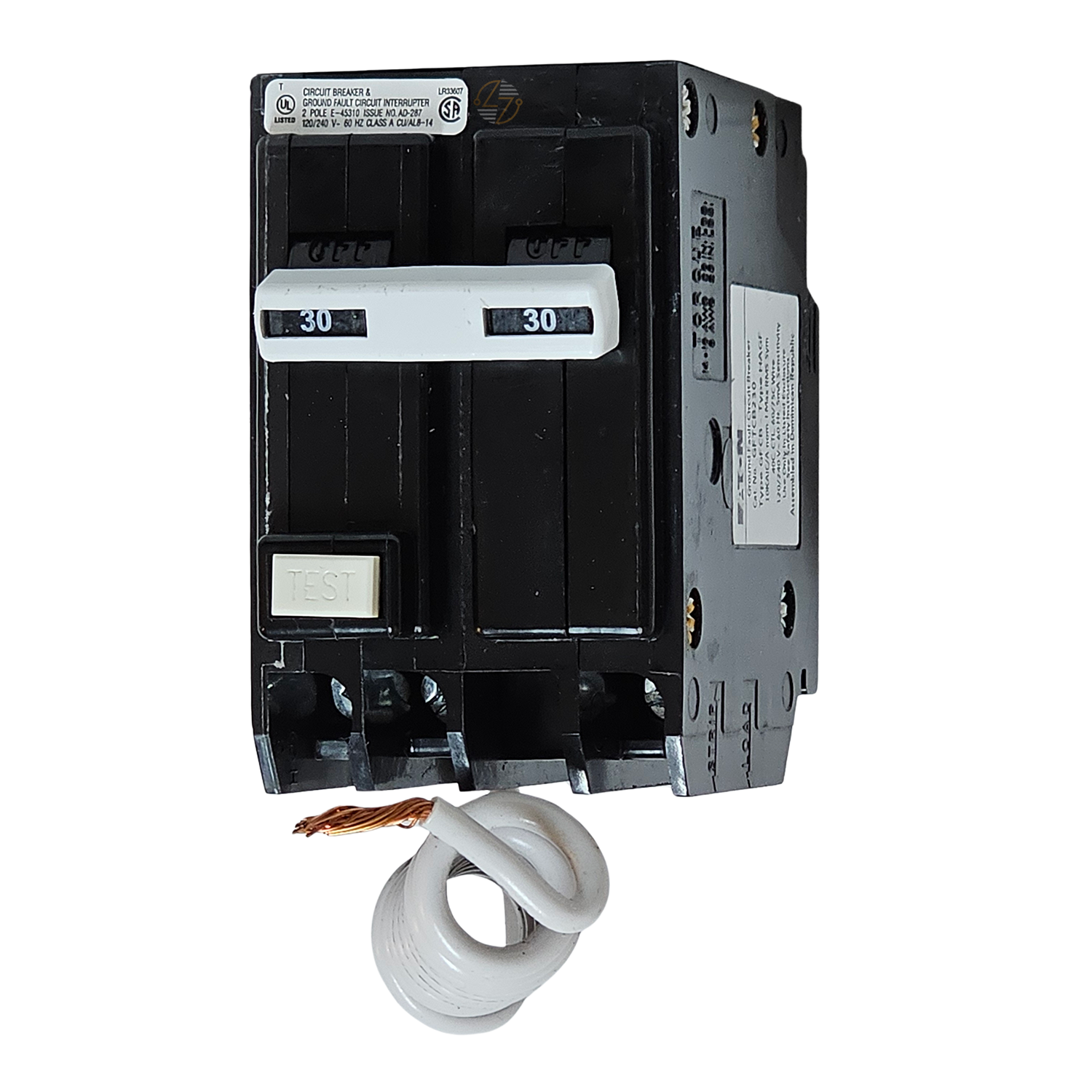

GFTCB230 - 30 Amp GFCI (5mA) Circuit Breaker

GFTCB230 - 30 Amp GFCI (5mA) Circuit Breaker

The Eaton GFTCB230 is a 30 Amp, 2-pole GFCI circuit breaker that combines branch circuit protection and ground fault protection in a single device. It helps you protect against overloads and short circuits while also providing 5mA ground fault protection for personnel safety. With a 10kAIC interrupt rating, common trip operation, and a built-in GFI indicator, the GFTCB230 is designed for electrical applications where both circuit protection and GFCI protection are required in the same breaker.

Key Features and Benefits

• 30 Amp, 2-pole GFCI circuit breaker
• Combines circuit breaker and ground fault protection in one device
• Common trip operation across both poles
• 5mA ground fault protection
• Built-in GFI indicator for breaker status checks
• Rated for 120/240V applications
• Accepts #14-4 AWG wire sizes
• Protects against overloads, short circuits, and ground faults
• Built to last for service, maintenance, and replacement applications


Technical Specifications

• Catalog Number: GFTCB230

• Manufacturer: Eaton

• Product Type: GFCI Circuit Breaker

• Breaker Type: GFTCB

• Amperage Rating: 30 Amps

• Number of Poles: 2

• Voltage Rating: 120/240V

• Protection Type: Ground Fault Circuit Interrupter (GFCI)

• Trip Type: Common Trip

• Ground Fault Protection: 5mA

• Interrupt Rating: 10kAIC

• Indicator: GFI Indicator

• Application: Ground Fault Personnel Protection

• Wire Size: #14-4 AWG

• Height: 2.00 in.

• Width: 2.75 in.

• Depth: 4.50 in.

• Product Weight: 0.70 lbs.


Material Compliance and Certifications

The Eaton GFTCB230 is certified to UL 943 and UL 489 standards for GFCI protection and circuit breaker applications. It also meets Federal Specification Classification W-C375 requirements.

Where It Works Best

• Residential electrical panels
• Commercial branch circuits
• Equipment circuits requiring GFCI protection
• Garages, outdoor areas, and utility spaces
• Two-pole circuits requiring ground fault protection
• Electrical repair and maintenance projects
• Applications requiring personnel protection
• Branch circuits requiring 30 Amp protection
