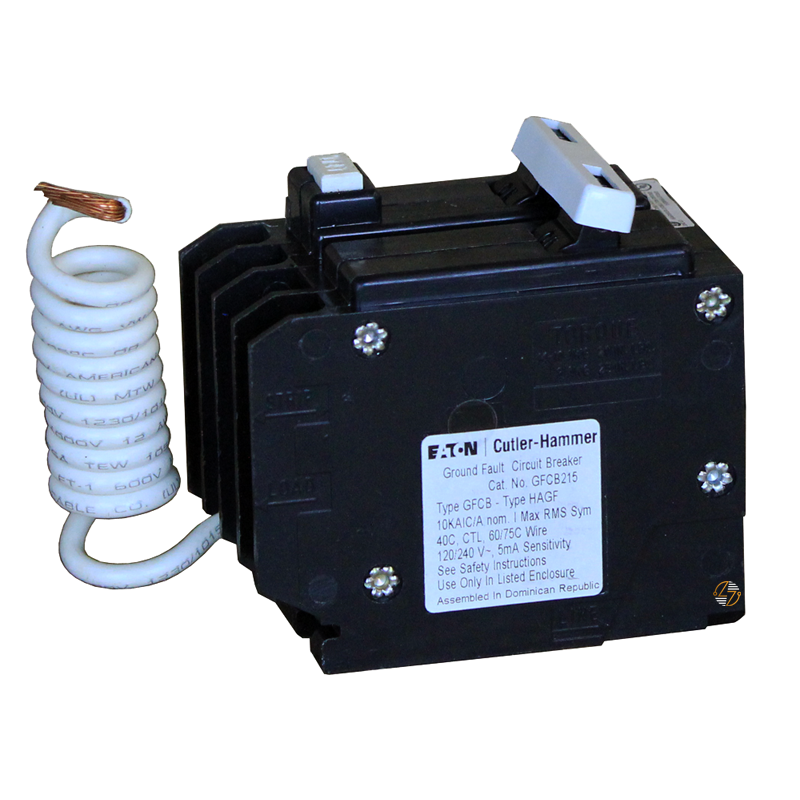

GFCB215 - 15 Amp Circuit Breaker

GFCB215 - 15 Amp Circuit Breaker

The GFCB215 is a 15 Amp, 2-pole plug-on circuit breaker used in electrical panels that accept the GFCB series breaker style. It features thermal-magnetic protection to help protect circuits from overloads and short circuits, along with a common trip design and HACR rating for heating, air conditioning, and refrigeration applications. With a 10kA interrupting rating at 120/240VAC, this breaker is intended for two-pole branch circuits where the existing application calls for these ratings.

When you're replacing a breaker, the small details matter. The amperage, voltage rating, pole count, and mounting style all need to match the panel and the circuit being serviced.

Key Features and Benefits

• 15 Amp, 2-pole circuit breaker
• Plug-on connection for GFCB series panels
• HACR rated for heating, air conditioning, and refrigeration applications
• Common trip operation across both poles
• Thermal-magnetic protection for overload and short-circuit conditions
• Designed for two-pole branch circuit applications
• Suitable for HVAC and equipment circuits
• Compact design for compatible panel installations
• Built to last for maintenance and replacement work


Technical Specifications

• Catalog Number: GFCB215

• Product Type: Plug-On Circuit Breaker

• Series / Type: GFCB

• Amperage Rating: 15 Amps

• Number of Poles: 2

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kAIC at 120/240VAC

• Trip Configuration: Common Trip

• Application Rating: HACR Rated

• Mounting Style: Plug-On

• Height: 3.19 in.

• Width: 2.00 in.

• Depth: 2.50 in.

• Dimensions: 2.00 in. W × 3.19 in. H × 2.50 in. D

• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

The GFCB215 is intended for use as a circuit protection component in electrical panels designed for this breaker style. Installation should be completed by qualified electrical personnel following the National Electrical Code (NEC), local electrical requirements, and standard safety practices.

Where It Works Best

• Electrical panels designed for GFCB series plug-on breakers
• Residential electrical systems
• Commercial branch circuits
• HVAC and refrigeration equipment circuits
• Two-pole equipment circuits
• Electrical panel service work
• Breaker replacement projects
• Existing installations requiring a 15 Amp GFCB series breaker
• Applications where matching the existing breaker specifications is important

The GFCB215 15 Amp Plug-On Circuit Breaker is a straightforward choice when an existing application calls for a 2-pole GFCB series breaker.
