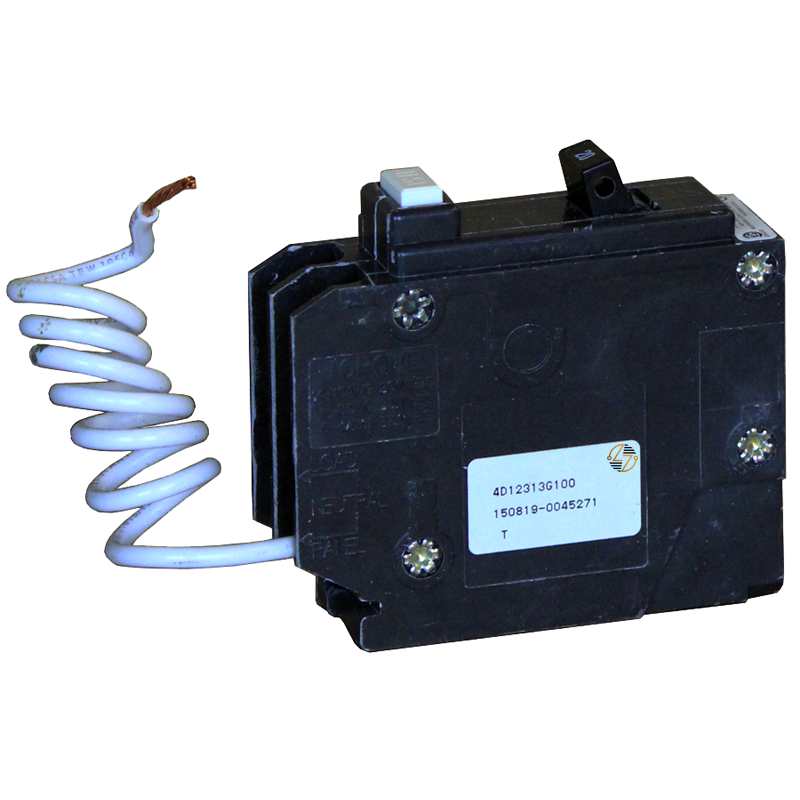

GFCB140 - 40 Amp Circuit Breaker

GFCB140 - 40 Amp Circuit Breaker

The GFCB140 is a 40 Amp, 1-pole plug-on circuit breaker used in electrical panels that accept the GFCB series breaker style. It features thermal-magnetic protection to help guard against overloads and short circuits, along with a common trip design and HACR rating for heating, air conditioning, and refrigeration applications.

Replacing your breaker is usually about finding the correct match. The amp rating, voltage rating, pole count, and mounting style all need to line up with the existing panel and the circuit being serviced. The GFCB140 plug-on connection makes installation simple in matching panels and allows the electrical layout to stay the same without unnecessary changes.

Key Features and Benefits

• 40 Amp, 1-pole circuit breaker
• Plug-on connection for GFCB series compatible panels
• HACR rated for heating, air conditioning, and refrigeration applications
• Common trip operation
• Thermal-magnetic protection for overload and short-circuit conditions
• Designed for branch circuit protection
• Suitable for HVAC and equipment-related circuits
• Compact design for compatible panel installations
• Built to last for maintenance and replacement applications


Technical Specifications

• Catalog Number: GFCB140

• Product Type: Plug-On Circuit Breaker

• Series / Type: GFCB

• Amperage Rating: 40 Amps

• Number of Poles: 1

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kAIC at 120/240VAC

• Trip Configuration: Common Trip

• Application Rating: HACR Rated

• Mounting Style: Plug-On

• Height: 3.19 in.

• Width: 1.00 in.

• Depth: 2.50 in.

• Dimensions: 1.00 in. W × 3.19 in. H × 2.50 in. D

• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

The GFCB140 is intended for use as a circuit protection component in electrical panels designed for this breaker style. Installation should be completed by qualified electrical personnel following the National Electrical Code (NEC), local electrical requirements, and standard safety practices.

Where It Works Best

• Electrical panels designed for GFCB series plug-on breakers
• Residential branch circuits
• Commercial electrical applications
• HVAC and refrigeration equipment circuits
• Equipment branch circuits
• Electrical panel service work
• Breaker replacement projects
• Existing installations requiring a 40 Amp GFCB series breaker
• Applications where matching the original breaker specifications is important

The GFCB140 40 Amp Plug-On Circuit Breaker is a straightforward replacement when an existing application calls for a 1-pole GFCB series breaker.
