GD3100 - 100Amp Circuit Breaker

GD3100 - 100Amp Circuit Breaker

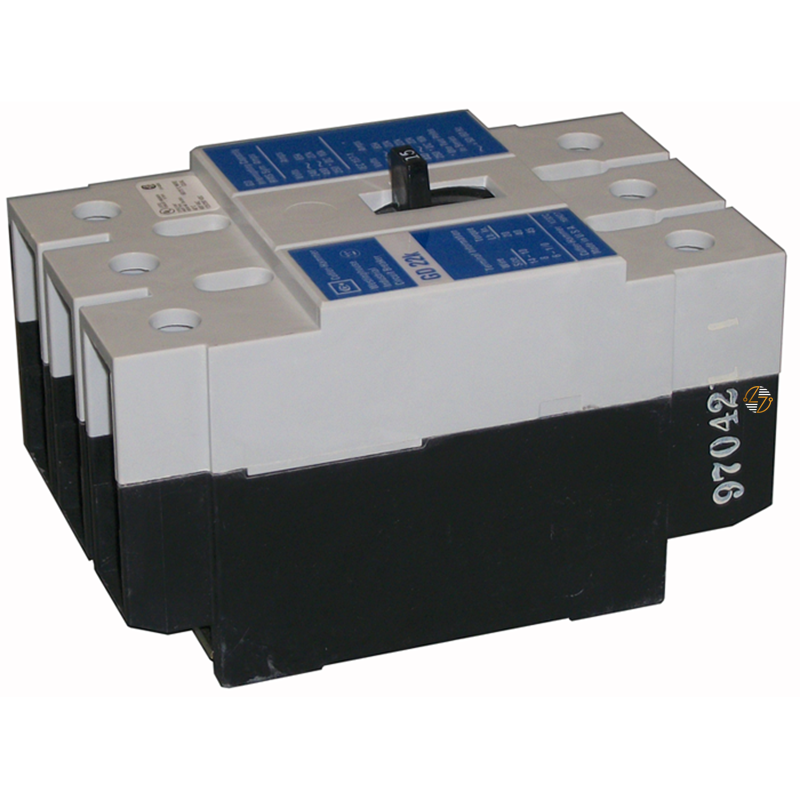

The Eaton GD3100 Series C complete molded case circuit breaker is engineered for superior performance and reliability in protecting electrical systems. Designed for both commercial and industrial applications, this three-pole breaker offers a robust solution with a fixed thermal and fixed magnetic trip type, ensuring precise and consistent operation. This breaker is an essential component for safeguarding your electrical infrastructure.

Key Features and Benefits:

• High Interrupting Capacity: Boasts an impressive 65 kAIC at 240 Vac and 22 kAIC at 480 Vac, ensuring robust protection against electrical faults.
• Fixed Thermal and Magnetic Trip: Provides consistent and reliable operation, minimizing the risk of false trips and ensuring long-term reliability.
• Versatile Voltage Ratings: Suitable for a variety of applications with 480 Vac and 125/250 Vdc ratings, offering flexibility in usage.
• Lightweight and Durable: Weighs only 2.05 lbs, facilitating easy handling and installation while maintaining robust performance.

Technical Specifications:

• Series: Eaton Series C
• Frame: G-frame
• Trip Type: Fixed thermal, fixed magnetic
• Poles: Three-pole
• Current Rating: 100Amp
• Voltage Rating: 480 Vac, 125/250 Vdc
• Interrupting Capacity: 65 kAIC at 240 Vac, 22 kAIC at 480 Vac
• Frequency Rating: 50/60 Hz
• Dimensions: 2.63 in (L) x 4.88 in (H) x 3 in (W)
• Weight: 2.05 lbs

Material Compliance and Certifications:

• UL Listed: Ensures adherence to the highest safety and performance standards, providing reliable protection for your electrical systems.

Suitability:

• The GD3100 is ideal for a wide range of applications, including commercial buildings, industrial facilities, and other environments requiring reliable circuit protection. Its high interrupting capacity and versatile voltage ratings make it suitable for use in critical power distribution systems, ensuring the safety and reliability of your electrical infrastructure.
