GD3090 - 90Amp Circuit Breaker

GD3090 - 90Amp Circuit Breaker

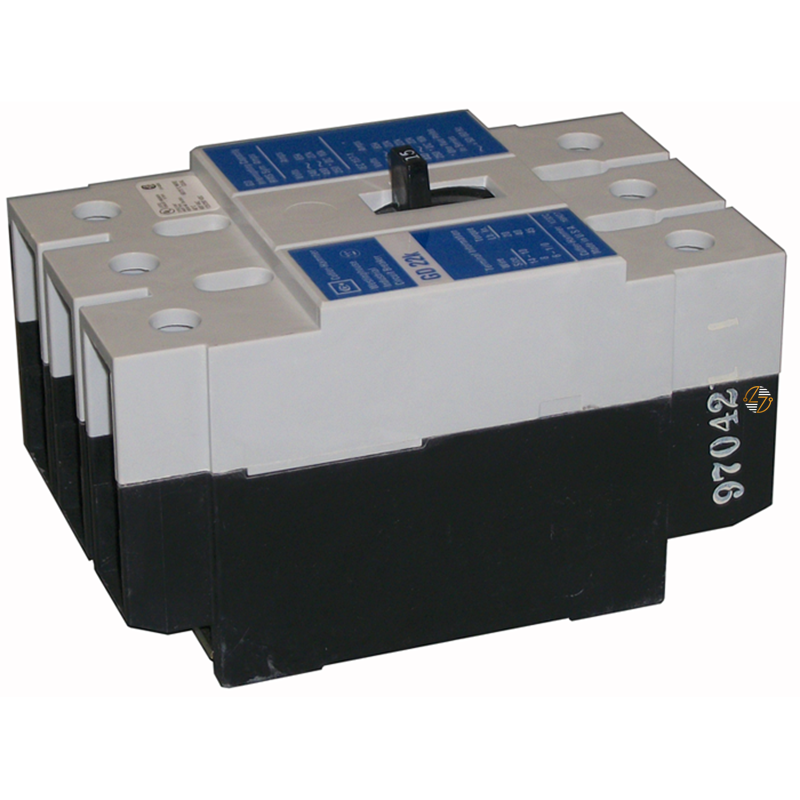

The Eaton GD3090 Series C G-frame molded case circuit breaker is a robust and reliable solution designed for both commercial and industrial applications. Its fixed thermal and fixed magnetic trip types provide consistent and reliable operation, safeguarding your infrastructure from potential electrical faults.

Key Features and Benefits:

• High Interrupting Capacity: The GD3090 boasts an interrupting capacity of 65 kAIC at 240 Vac and 22 kAIC at 480 Vac, ensuring it can handle significant fault currents, thereby protecting your equipment from damage.
• Versatile Voltage Ratings: Supports a wide range of voltage applications including 480 Vac and 125/250 Vdc, making it ideal for diverse operational environments.
• Durable Construction: Engineered with robust materials, this circuit breaker is designed for longevity and reliability, minimizing downtime and maintenance costs.

Technical Specifications:

• Amperage Rating: 90Amp
• Voltage Rating: 480 Vac, 125/250 Vdc
• Trip Type: Fixed Thermal, Fixed Magnetic
• Frame Type: G-Frame
• Series: C
• Frequency Rating: 50/60 Hz
• Interrupting Capacity: 65 kAIC at 240 Vac, 22 kAIC at 480 Vac
• Number of Poles: Three-pole
• Dimensions: 2.63" (L) x 4.88" (H) x 3" (W)
• Weight: 2.1 lbs

Material Compliance and Certifications:

• Certifications: UL Listed, ensuring adherence to rigorous safety and performance standards.

Suitability:

• The Eaton GD3090 circuit breaker is ideally suited for a variety of applications in commercial and industrial settings. Its high interrupting capacity and versatile voltage ratings make it perfect for protecting motor circuits, panelboards, switchboards, and other electrical equipment. The robust design and reliable performance of the GD3090 ensure that it can withstand harsh operating conditions, making it a dependable choice for any demanding electrical infrastructure.
