GD3080 - 80Amp Circuit Breaker

GD3080 - 80Amp Circuit Breaker

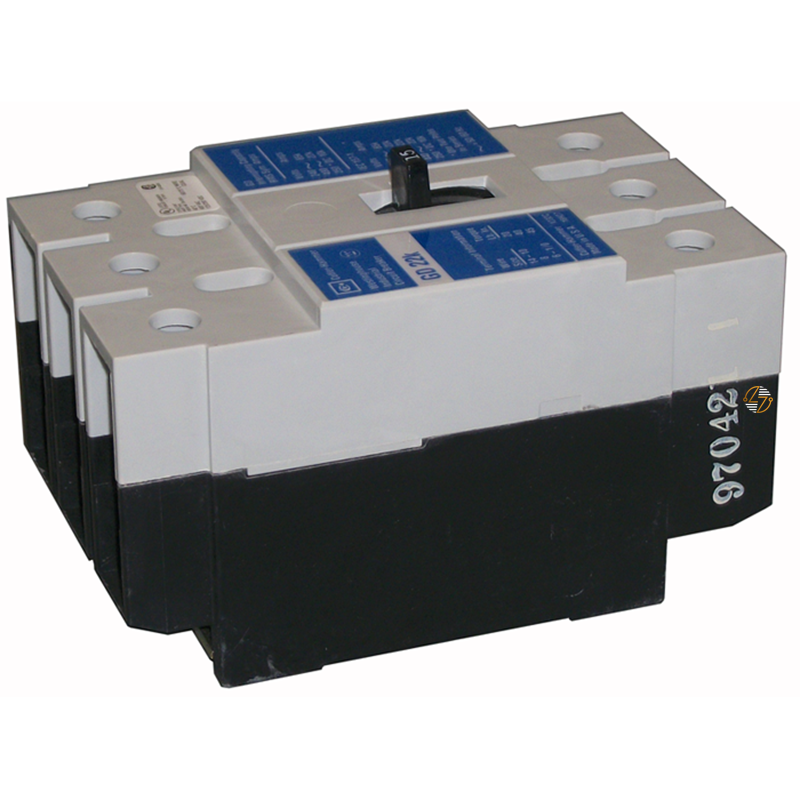

The Eaton GD3080 is a high-performance molded case circuit breaker designed to deliver reliable and robust protection for your electrical systems. As part of the Eaton Series C G-frame line, the GD3080 offers a complete solution for various industrial and commercial applications. This three-pole circuit breaker is engineered with a fixed thermal and magnetic trip mechanism, ensuring precise and consistent protection against overloads and short circuits.

Key Features and Benefits:

• High Interrupting Capacity: With a 65 kAIC rating at 240 Vac and 22 kAIC at 480 Vac, the GD3080 provides superior protection against short-circuit events, ensuring safety and reliability in high-demand applications.
• Fixed Thermal and Magnetic Trip: This feature guarantees accurate and dependable protection by automatically disconnecting power during overloads and short circuits, minimizing damage to your electrical system.
• Robust Construction: Built with durable materials, the GD3080 ensures long-lasting performance and reliability, even in harsh industrial conditions.

Technical Specifications:

• Amperage Rating: 80Amp
• Voltage Rating: 480 Vac, 125/250 Vdc
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 65 kAIC at 240 Vac, 22 kAIC at 480 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Number of Poles: Three-pole
• Dimensions: 2.63 in (length) x 4.88 in (height) x 3 in (width)
• Weight: 2.1 lb

Material Compliance and Certifications:

• Compliance: The Eaton GD3080 circuit breaker is UL listed, ensuring compliance with rigorous safety and performance standards. Eaton's commitment to quality and reliability is backed by a one-year warranty from the date of installation or eighteen months from the date of shipment, whichever comes first. This warranty underscores the trust and confidence in the durability and performance of the GD3080.

Suitability:

• The GD3080 circuit breaker is ideal for a wide range of applications, including commercial buildings, industrial facilities, and other settings where reliable power distribution and protection are critical. Its high interrupting capacity and robust design make it suitable for protecting circuits in heavy-duty environments, ensuring the safety and continuity of your electrical systems.
