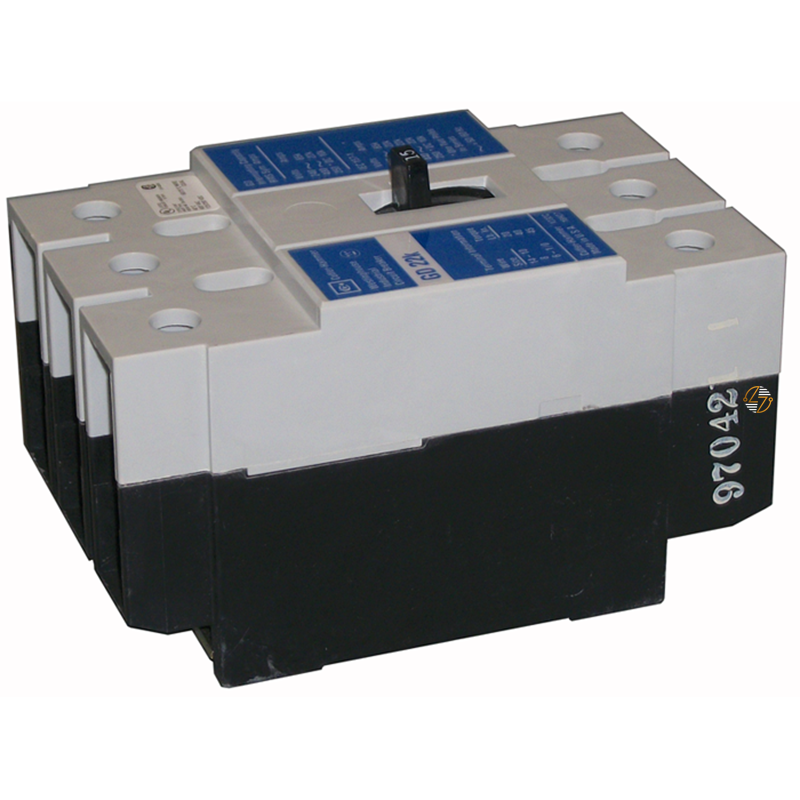

GD3060 - 60Amp Circuit Breaker

GD3060 - 60Amp Circuit Breaker

The Eaton GD3060 Series C molded case circuit breaker is an essential component for ensuring the safety and efficiency of electrical systems. This G-frame breaker is engineered for robust performance in both residential and commercial applications, offering reliable protection against overloads and short circuits. Its design accommodates a variety of installation environments, making it a versatile choice for electrical contractors and engineers.

Key Features and Benefits:

• High Interrupting Capacity: With an interrupting capacity of 65 kAIC at 240 Vac and 22 kAIC at 480 Vac, the GD3060 is designed to handle significant fault currents, ensuring maximum safety and protection.
• Fixed Thermal and Magnetic Trips: This circuit breaker features fixed thermal and magnetic trip settings, providing consistent and reliable protection against overloads and short circuits.
• Versatile Voltage Ratings: Suitable for systems operating at 480 Vac and 125/250 Vdc, this breaker is adaptable for a wide range of electrical systems.
• Three-Pole Configuration: The three-pole design ensures comprehensive protection across all phases of the electrical system.

Technical Specifications:

• Amperage Rating: 60Amp
• Voltage Rating: 480 Vac, 125/250 Vdc
• Frame Type: G-frame
• Series: C
• Interrupt Rating: 65 kAIC at 240 Vac, 22 kAIC at 480 Vac
• Frequency Rating: 50/60 Hz
• Trip Type: Fixed thermal, fixed magnetic
• Number of Poles: 3

Material Compliance and Certifications:

• UL Listed: This breaker meets the rigorous safety and performance standards set by Underwriters Laboratories (UL), ensuring it is safe for use in a variety of applications.

Suitability:

• The Eaton GD3060 circuit breaker is ideal for a variety of applications including industrial control panels, electrical distribution systems, and commercial buildings. Its robust design and high interrupting capacity make it particularly suitable for environments where electrical reliability and safety are paramount. Whether used in new installations or as a replacement in existing systems, the GD3060 provides dependable protection and peace of mind.
