GD3030 - 30Amp Circuit Breaker

GD3030 - 30Amp Circuit Breaker

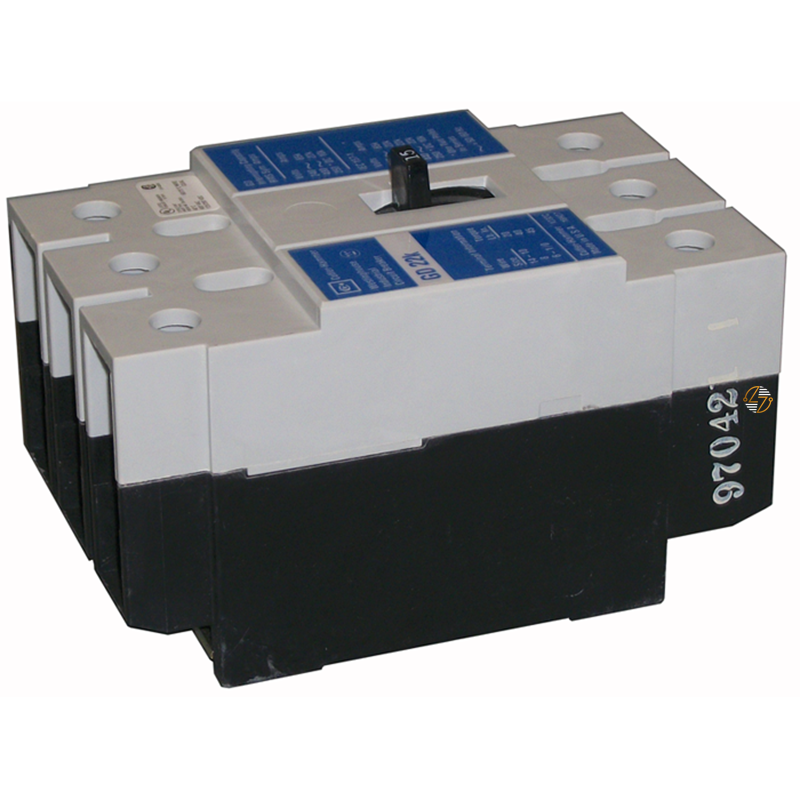

The Eaton GD3030 Circuit Breaker is a high-performance, molded case breaker from the renowned Eaton Series C. Designed for reliability and safety, this G-frame breaker is perfect for industrial and commercial applications requiring robust protection. With fixed thermal and magnetic trip units, this breaker ensures consistent and precise interruption performance.

Key Features and Benefits:

• High Interrupting Capacity: With a 65 kAIC at 240 Vac and 22 kAIC at 480 Vac, the GD3030 provides excellent fault current interruption capability, enhancing system protection.
• Versatile Voltage Rating: Operates efficiently at 480 Vac and 125/250 Vdc, suitable for various applications including mixed AC/DC systems.
• Durable Construction: Engineered for durability, this breaker withstands harsh industrial environments, ensuring long-term reliability.

Technical Specifications:

• Amperage Rating: 30Amp
• Voltage Rating: 480 Vac, 125/250 Vdc
• Frequency Rating: 50/60 Hz
• Interrupting Capacity: 65 kAIC at 240 Vac, 22 kAIC at 480 Vac
• Poles: Three-pole configuration
• Trip Type: Fixed thermal, fixed magnetic
• Dimensions: 2.63 in (Length), 4.88 in (Height), 3 in (Width)
• Weight: 2 lbs

Material Compliance and Certifications:

• Compliance: The Eaton GD3030 Circuit Breaker is UL Listed, confirming its compliance with rigorous safety and performance standards. The materials used in its construction meet or exceed industry requirements, ensuring safe and reliable operation in demanding environments.

Suitability:

• Industrial Control Panels: Provides reliable protection for control panel components and systems.
• Commercial Electrical Systems: Ensures safety and operational efficiency in commercial buildings.
• Mixed AC/DC Systems: Suitable for systems requiring both AC and DC voltage handling capabilities.
• High-Fault Current Applications: Perfect for environments with high fault current levels due to its high interrupting capacity.
