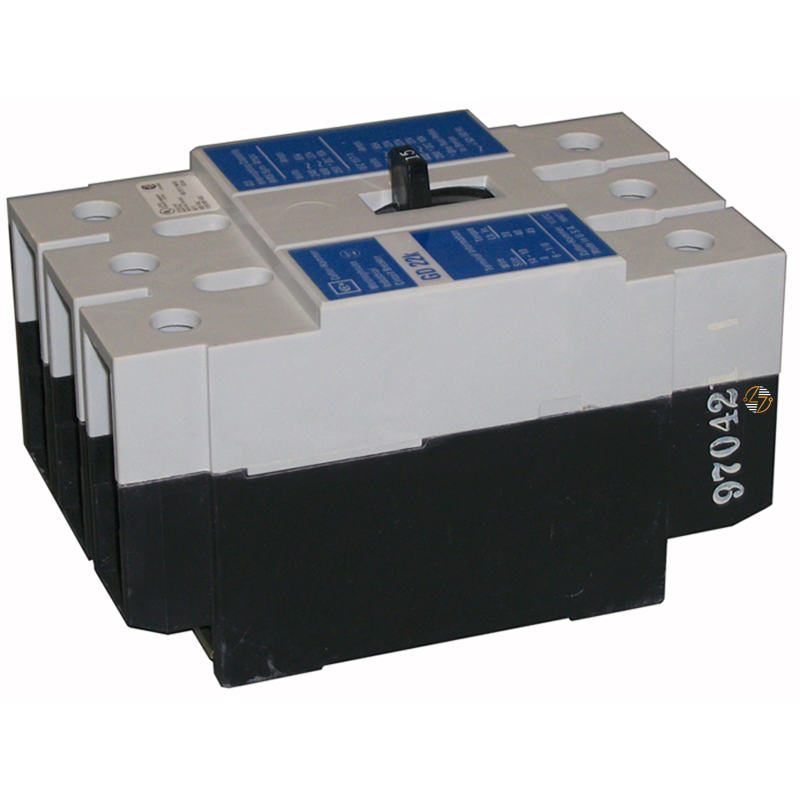

GD3025 - 25Amp Circuit Breaker

GD3025 - 25Amp Circuit Breaker

The Eaton GD3025 is a robust and reliable component in the Series C G-frame molded case circuit breaker lineup, designed to deliver exceptional protection and performance in industrial and commercial electrical applications. This three-pole circuit breaker offers a fixed thermal and fixed magnetic trip type, ensuring precise and consistent operation under various load conditions.

Key Features and Benefits:

• Reliable Protection: Offers fixed thermal and fixed magnetic trip mechanisms for precise operation and enhanced protection.
• High Fault Tolerance: Capable of handling up to 65 kAIC at 240 Vac and 22 kAIC at 480 Vac, ensuring robust performance under high fault conditions.
• Versatile Application: Suitable for a wide range of industrial and commercial electrical applications with support for 480 Vac and 125/250 Vdc.

Technical Specifications:

• Amperage Rating: 25Amp
• Voltage Rating: 480 Vac, 125/250 Vdc
• Trip Type: Fixed thermal, fixed magnetic
• Interrupt Rating: 65 kAIC at 240 Vac, 22 kAIC at 480 Vac
• Poles: Three-pole
• Frequency Rating: 50/60 Hz
• Dimensions: Length: 2.63 in, Height: 4.88 in, Width: 3 in
• Weight: 2 lb

Material Compliance and Certifications:

• Compliance: The Eaton GD3025 circuit breaker meets stringent UL certification standards, ensuring it complies with the highest safety and performance requirements. The materials used in its construction are carefully selected to provide durability and reliability, making it a trusted choice for protecting electrical circuits.

Suitability:

• The GD3025 is ideal for various applications, including power distribution panels, industrial machinery, and commercial building systems. Its high interrupting capacity makes it suitable for environments with significant fault current potentials, ensuring your operations remain safe and uninterrupted.
