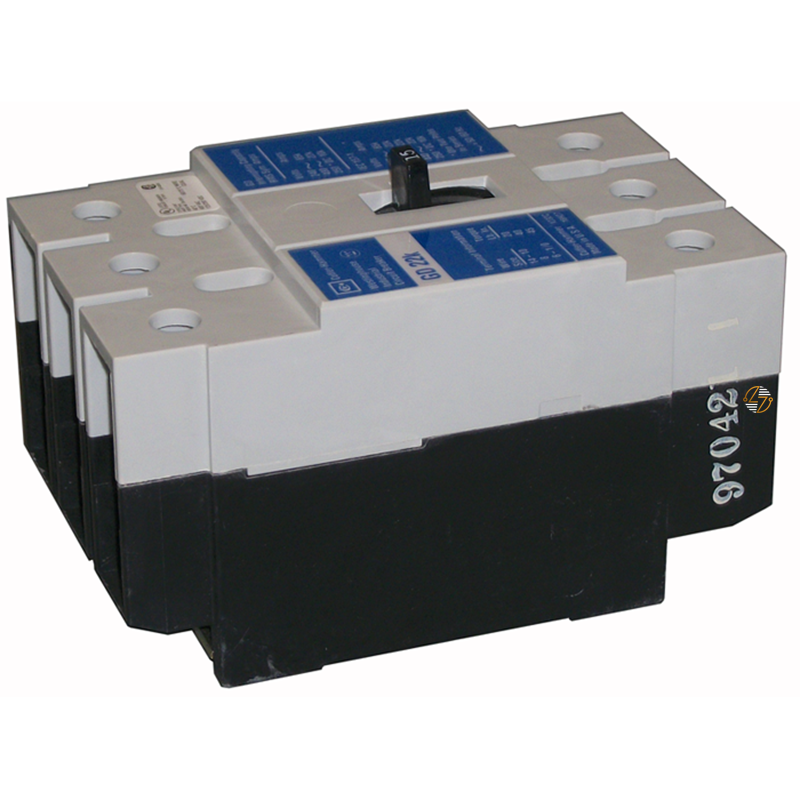

GD3020 - 20Amp Circuit Breaker

GD3020 - 20Amp Circuit Breaker

The Eaton GD3020 Series C Molded Case Circuit Breaker (MCCB) is a reliable and robust solution for protecting electrical circuits. Engineered for industrial and commercial applications, this G-frame breaker combines superior performance with advanced safety features, ensuring optimal protection against overcurrent and short circuits. Designed to handle demanding environments, the GD3020 offers a fixed thermal and fixed magnetic trip type, making it an ideal choice for various installations requiring a dependable and efficient circuit breaker.

Key Features and Benefits:

• High Interrupting Capacity: With an impressive interrupting capacity of 65 kAIC at 240 Vac and 22 kAIC at 480 Vac, the GD3020 effectively handles high fault currents, ensuring safety and reliability.
• Versatile Application: Suitable for both AC and DC circuits, this breaker supports 480 Vac and 125/250 Vdc, providing flexibility for different electrical systems.
• Three-Pole Design: Ensures comprehensive protection across three phases, enhancing the safety and efficiency of electrical distribution systems.
• Fixed Thermal and Magnetic Trip: Provides consistent and reliable performance, reducing the risk of circuit damage due to overloads or short circuits.

Technical Specifications:

• Amperage Rating: 20Amp
• Voltage Rating: 480 Vac, 125/250 Vdc
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 65 kAIC at 240 Vac, 22 kAIC at 480 Vac
• Number of Poles: 3
• Dimensions: 2.63 in (L) x 4.88 in (H) x 3 in (W)
• Weight: 2 lbs
• Trip Type: Fixed Thermal, Fixed Magnetic

Material Compliance and Certifications:

• Certifications: UL Listed, ensuring compliance with stringent safety standards and regulations.

Suitability:

• The Eaton GD3020 Series C MCCB is ideal for a wide range of applications including industrial plants, commercial buildings, and infrastructure projects. Its robust design and high interrupting capacity make it suitable for protecting electrical circuits in environments where reliability and safety are paramount. Whether it's for motor protection, branch circuit protection, or panelboards, the GD3020 delivers exceptional performance and durability.
