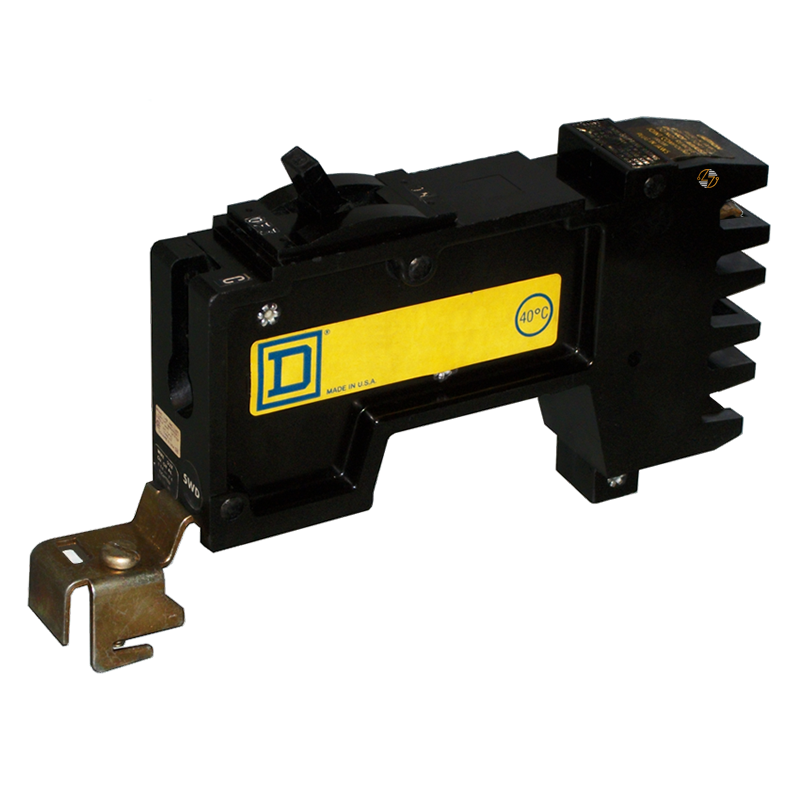

FY14020A **Old Style** - 20 Amp Circuit Breaker

FY14020A **Old Style** - 20 Amp Circuit Breaker

The Schneider Electric FY14020A Older Style Black Face is a 20 Amp, 1-pole molded case circuit breaker from the FY series, built for use in compatible I-Line™ electrical distribution equipment. Featuring a thermal-magnetic trip unit, it provides inverse-time overload protection through its thermal element along with instantaneous magnetic protection for short-circuit conditions.

Whether you're performing routine maintenance or replacing a breaker that has reached the end of its service life, the FY14020A offers the same form, fit, and function expected for compatible Schneider Electric I-Line equipment.

Key Features and Benefits

• 20 Amp current rating for branch circuit protection
• Single-pole molded case circuit breaker
• Older style black face design for compatible legacy installations
• Thermal-magnetic trip unit responds to both overloads and short circuits
• I-Line plug-in mounting style for compatible Schneider Electric distribution equipment
• A-phase configuration for applications requiring this phase position
• Designed for 60Hz electrical systems
• Rated for operation in ambient temperatures up to 40°C
• Helps maintain the original form, fit, and function of existing electrical equipment
• Built to last for maintenance and replacement applications


Technical Specifications

• Catalog Number: FY14020A

• Manufacturer: Schneider Electric

• Product Family: FY Series

• Product Type: Molded Case Circuit Breaker

• Trip Unit: Thermal Magnetic

• Amperage: 20 Amps

• Number of Poles: 1

• Voltage Rating: 277VAC

• Interrupting Rating: 14kA @ 277VAC; 18kA @ 120VAC

• Frequency: 60Hz

• Mounting Style: I-Line Plug-In

• Phase: A Phase

• Ambient Temperature Rating: 40°C

• Height: 8.75 in.

• Width: 1.50 in.

• Depth: 4.38 in.

• Dimensions: 1.50 in. W × 8.75 in. H × 4.38 in. D

• Approximate Shipping Weight: 4.50 lbs.

• Face Style: Older Style Black Face


Material Compliance and Certifications

The Schneider Electric FY14020A is manufactured for installation in compatible electrical distribution equipment. Installation should be performed by qualified personnel and in accordance with the National Electrical Code (NEC) and all applicable local electrical codes.

Before installation, confirm that the breaker's amp rating, voltage rating, interrupting capacity, pole configuration, mounting style, phase designation, and older style black face configuration match the existing equipment.

Where It Works Best

• Compatible Schneider Electric I-Line™ panelboards
• I-Line electrical distribution systems
• Commercial office buildings
• Manufacturing and industrial facilities
• Retail buildings
• Healthcare facilities
• Educational campuses
• Branch circuits operating up to 277VAC
• Preventive maintenance programs
• Replacement of existing older-style black-face FY breakers where maintaining the original equipment configuration is important
