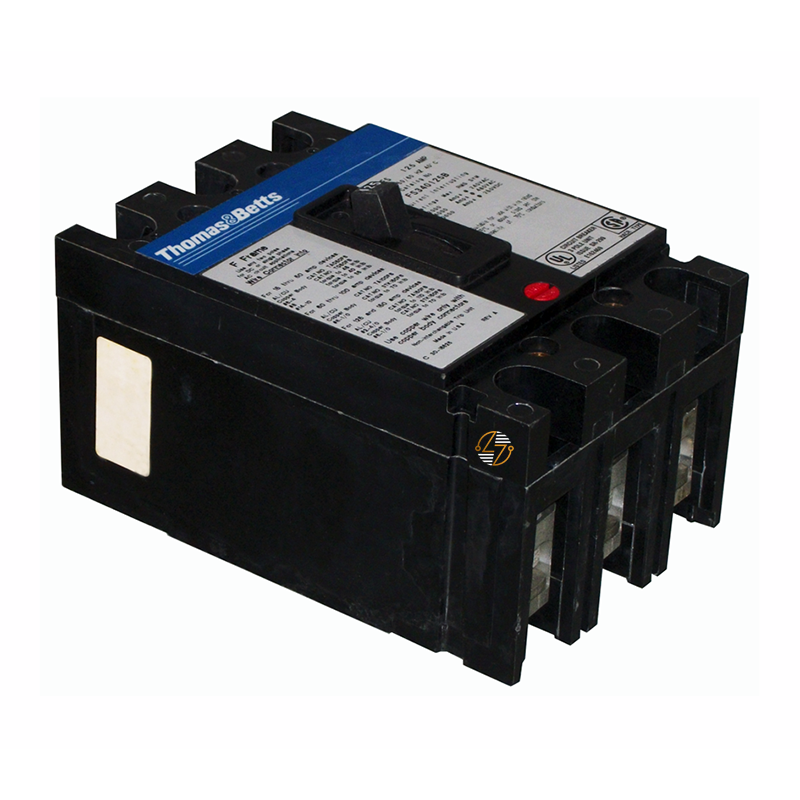

FS360100A - 100Amp Circuit Breaker

FS360100A - 100Amp Circuit Breaker

The FS360100A thermal-magnetic circuit breaker is a high-performing solution tailored for the maintenance of existing electrical systems in commercial and industrial environments. Designed with a robust 100-ampere rating, this 3-pole breaker ensures the continuous protection of your power distribution network. With an AIC rating of 14k at both 600VAC and 480VAC, and 22k at 240VAC, it delivers reliable short-circuit protection across a range of voltages, making it suitable for various demanding applications. The FS360100A features a non-interchangeable trip unit, optimized for consistent performance at a 40°C ambient temperature.

Key Features and Benefits

• High Amperage Capacity: The FS360100A offers a strong 100A rating, making it ideal for maintaining high-demand electrical systems.
• Reliable Protection: With an AIC rating of 14k at 600VAC and 480VAC, and 22k at 240VAC, this breaker provides reliable protection against overcurrents and short circuits.
• Thermal-Magnetic Operation: Features a thermal-magnetic trip unit that ensures accurate and timely response to electrical faults.
• Compact Design: The breaker’s dimensions make it easy to install and maintain, saving space while ensuring robust performance.
• Installation Ready: Supplied with load terminals for quick and easy installation.

Technical Specifications

• Amperage: 100A
• Poles: 3
• AIC Rating: 14k @ 600VAC; 14k @ 480VAC; 22k @ 240VAC
• Frame Type: FS
• Dimensions: 4.13"W x 6.00"H x 3.38"D
• Weight: 6 lbs
• Temperature Rating: 40°C
• Operation: Thermal-Magnetic, non-interchangeable trip unit
• Includes: Load Terminals

Material Compliance and Certifications

• RoHS Compliance: The FS360100A adheres to RoHS standards, ensuring it is free from hazardous substances and meets environmental regulations.
• UL Certification: This circuit breaker is UL listed, providing assurance of its safety and performance in compliance with industry standards.

Suitability

• The FS360100A is specifically designed for maintenance of existing electrical systems in industrial and commercial settings. Its durable construction and reliable thermal-magnetic operation make it a dependable choice for ensuring continuous protection in power distribution systems where maintaining operational integrity is critical.
