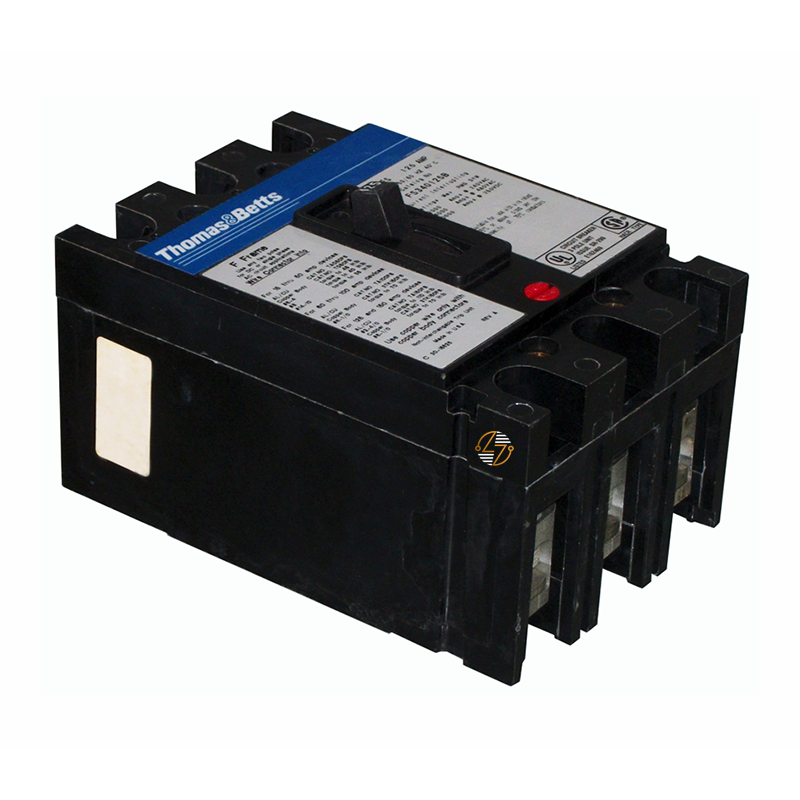

FS360090A - 90Amp Circuit Breaker

FS360090A - 90Amp Circuit Breaker

The FS360090A Thermal-Magnetic Circuit Breaker is a dependable and durable component designed to maintain the safety and functionality of existing electrical systems in industrial and commercial environments. This 3-pole circuit breaker, rated at 90 Amperes, offers robust protection against overloads and short circuits, making it an essential part of your electrical infrastructure maintenance. The breaker is also 40°C rated, ensuring reliable operation under standard industrial temperatures. The inclusion of load terminals simplifies installation, while the non-interchangeable trip unit adds an extra layer of safety by preventing unauthorized adjustments.

Key Features and Benefits:

• High Amperage Capacity: Rated at 90 Amperes, providing reliable protection for high-load circuits in industrial settings.
• Thermal-Magnetic Protection: Combines thermal and magnetic tripping mechanisms to safeguard against both overloads and short circuits.
• Non-Interchangeable Trip Unit: Enhances safety by preventing tampering or unauthorized modifications.
• Load Terminals Included: Streamlines the installation process, ensuring secure connections.
• 40°C Rated: Designed to operate efficiently under typical industrial conditions.

Technical Specifications:

• Poles: 3
• Amperes: 90A
• AIC Rating & Volts: 14k @ 600VAC, 14k @ 480VAC, 22k @ 240VAC
• Frame Type: FS
• Dimensions: 4.13" W x 6.00" H x 3.38" D
• Ship Weight: 6 lbs

Material Compliance and Certifications:

• Constructed from high-quality materials that meet stringent industry standards, ensuring long-lasting durability and performance.
• Certified for use in a variety of industrial and commercial applications, adhering to the highest safety and quality standards.

Suitability:

• The FS360090A Circuit Breaker is ideal for maintenance tasks, offering reliable and consistent protection in existing electrical systems. It is specifically designed to be a direct replacement in older setups, ensuring continued safety and efficiency without the need for system upgrades.
