FS360020A - 20Amp Circuit Breaker

FS360020A - 20Amp Circuit Breaker

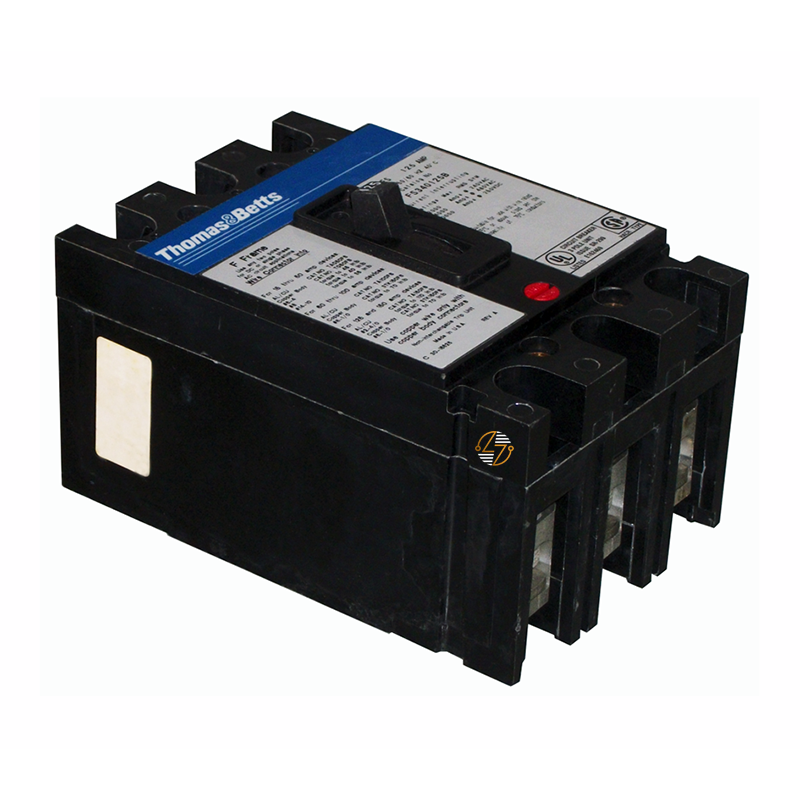

Introducing the FS360020A Thermal-Magnetic Circuit Breaker, a robust and reliable solution for your electrical maintenance needs. This 3-pole circuit breaker, designed for maximum safety and performance, is rated at 20 Amperes and operates effectively across various voltage settings with AIC ratings of 14k at 600VAC, 14k at 480VAC, and 22k at 240VAC.

Key Features and Benefits:

• Thermal-Magnetic Protection: Provides superior overload and short circuit protection, safeguarding your electrical system.
• Non-Interchangeable Trip Unit: Enhances safety by preventing unauthorized modifications.
• Load Terminals Included: Simplifies installation and reduces the need for additional components.
• 40°C Rated: Ensures reliable performance under typical operating conditions.

Technical Specifications:

• Poles: 3
• Amperes: 20A
• AIC Rating & Volts:
  14k @ 600VAC,
  14k @ 480VAC,
  22k @ 240VAC
• Frame Type: FS
• Dimensions: 4.13" W x 6.00" H x 3.38" D
• Ship Weight: 6 lbs

Material Compliance and Certifications:

• Built with materials compliant with current industry standards, ensuring safety and compatibility with existing systems.
• Certified for use in a wide range of industrial applications, meeting stringent quality and safety standards.

Suitability:

• This circuit breaker is ideal for maintenance applications where reliable protection is paramount. It is specifically designed to be a drop-in replacement in existing systems, making it the perfect choice for ensuring the continued safety and efficiency of your electrical infrastructure.
