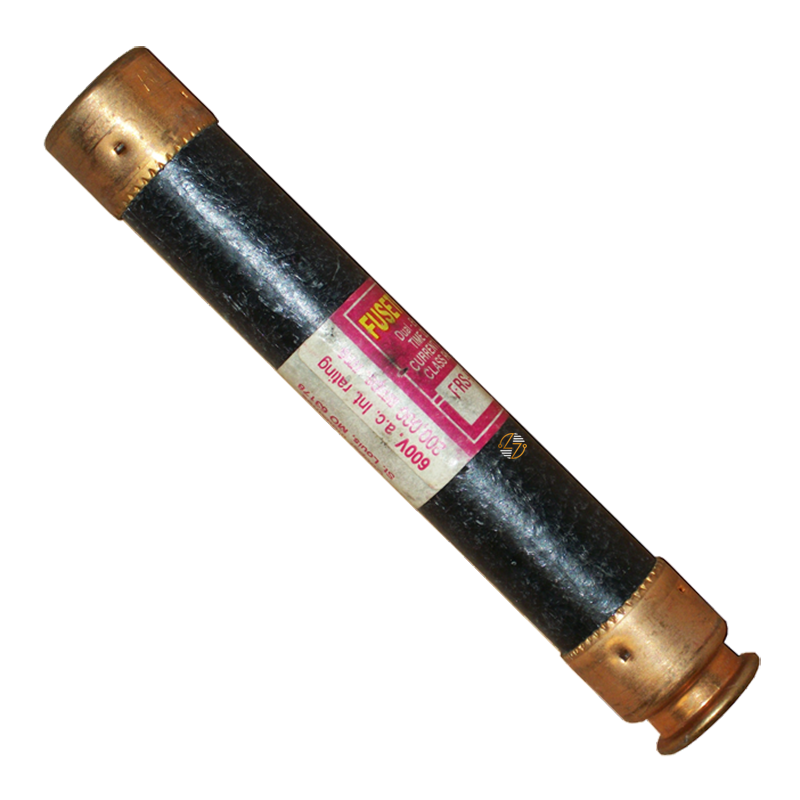

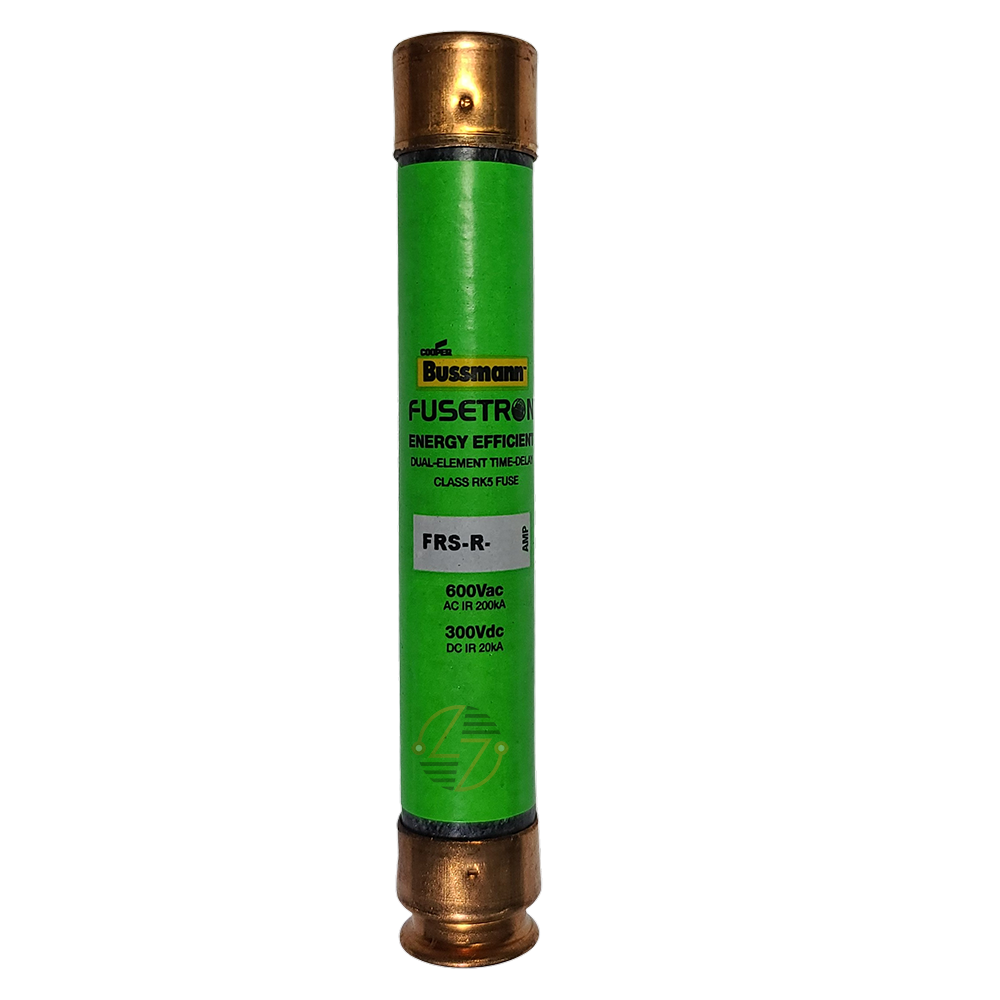

When you’re replacing an FRS-R-8 fuse, matching the 8-amp rating is only the beginning. The Eaton Bussmann FRS-R-8 is a dual-element Class RK5 fuse rated at 8A, 600 VAC, and 300 VDC. Its published interrupt ratings are 200 kAIC at 600 VAC and 20 kAIC at 300 VDC, with a manufacturer-specified response time of 10 seconds at 500% of rated current. This model uses ferrule connections on both ends, an important physical detail when you’re checking an existing fuse or comparing specifications from equipment documentation. It’s also non-indicating, so there is no built-in fuse-status indicator.

Key Features and Benefits

• 8A Class RK5 rating: Clearly identifies the amperage and fuse class for straightforward comparison with equipment requirements.
• Dual-element configuration: Matches specifications that specifically require a dual-element Class RK5 fuse.
• Defined response characteristic: Manufacturer specifications list a response time of 10 seconds at 500% of rated current.
• Ferrule ends: Uses a ferrule end x ferrule end connection, providing an easy-to-check physical characteristic when identifying a replacement.
• Non-indicating design: Does not include a built-in fuse-status indicator.
• CE Marked: The supplied manufacturer specifications indicate that the FRS-R-8 is CE Marked.


Technical Specifications

• Product Name: Eaton Bussmann series FRS-R fuse

• Catalog Number: FRS-R-8

• UPC: 051712508261

• Product Type: Fuse

• Amperage Rating: 8 A

• Class: Class RK5

• Voltage Rating: 600 VAC, 300 VDC

• Interrupt Rating at 600 VAC: 200 kAIC

• Interrupt Rating at 300 VDC: 20 kAIC

• Response Time: 10 sec at 500%

• Number of Elements: Dual

• Connection: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Product Length/Depth: 5 in

• Product Height: 0.81 in

• Product Width: 0.81 in

• Product Weight: 0.15 lb

• Compliance: CE Marked


Material Compliance and Certifications

The supplied manufacturer specifications list the Eaton Bussmann FRS-R-8 as CE Marked. No other certifications or specific material-compliance declarations were included in the provided product data, so no additional compliance claims are made here.

Where It Works Best

The Eaton Bussmann FRS-R-8 8A fuse is appropriate for compatible electrical equipment that specifically requires a Class RK5 dual-element fuse with ferrule-end connections and ratings matching this catalog number. Its 600 VAC and 300 VDC voltage ratings, along with the corresponding AC and DC interrupt ratings, provide clear reference points when checking an existing fuse or reviewing equipment documentation.
