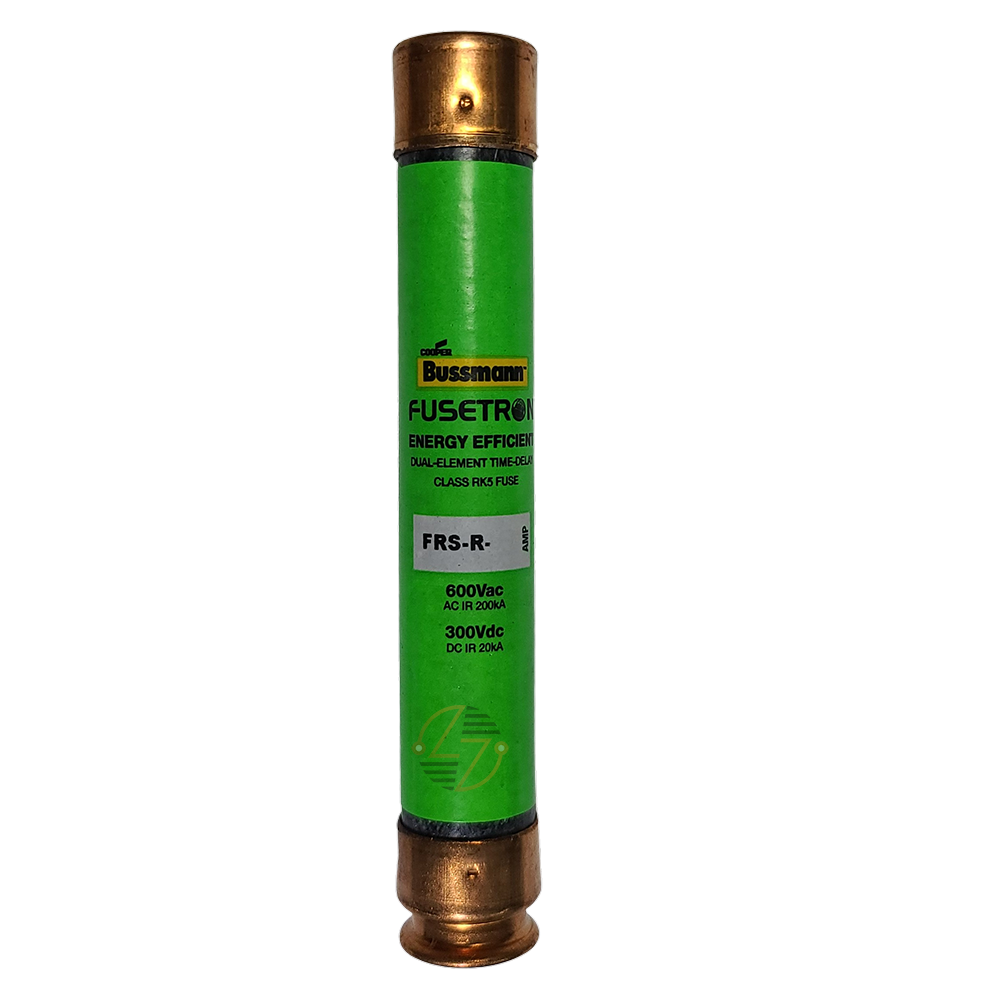

FRS-R-12 - 12Amp Fuse

FRS-R-12 - 12Amp Fuse

The Eaton Bussmann FRS-R-12 is a 12-amp12-amp Class RK5 fuse designed for electrical equipment that requires a dual-element fuse with ferrule-style connections. Rated for 600 VAC and 300 VDC, it has an interrupting rating of 200 kAIC at 600 VAC and 20 kAIC at 300 VDC. Its published response time is 10 seconds at 500% of rated current. Those details matter when you're replacing a fuse: matching the 12A rating is only part of the job. Checking the fuse class, voltage, interrupting rating, connection style, and dimensions helps confirm that the FRS-R-12 fuse is the right fit for the equipment you're servicing.

Key Features and Benefits

• 12A Class RK5 fuse with a dual-element configuration.
• Rated for 600 VAC and 300 VDC, providing clearly defined ratings for compatible AC and DC equipment.
• Published response time of 10 seconds at 500% of rated current.
• Ferrule end x ferrule end connection provides an easy physical checkpoint when comparing replacement fuses.
• Non-indicating design for equipment that does not require a built-in fuse status indicator.
• At 5 inches long and 0.81 inches wide, its dimensions can be compared directly with the existing fuse and equipment requirements.
• CE Marked according to the supplied manufacturer specifications.


Technical Specifications

• Product Name: Eaton Bussmann series FRS-R fuse

• Catalog Number: FRS-R-12

• UPC: 051712508292

• Product Type: Fuse

• Fuse Class: Class RK5

• Amperage Rating: 12 A

• Voltage Rating: 600 VAC / 300 VDC

• AC Interrupt Rating: 200 kAIC at 600 VAC

• DC Interrupt Rating: 20 kAIC at 300 VDC

• Response Time: 10 sec at 500%

• Number of Elements: Dual

• Connection: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Length/Depth: 5 in

• Height: 0.81 in

• Width: 0.81 in

• Product Weight: 0.15 lb


Material Compliance and Certifications

The FRS-R-12 is CE-marked based on the supplied manufacturer specifications. No additional material-compliance declarations or certifications were included in the provided product information, so none are claimed here.

Where It Works Best

The FRS-R-12 12A fuse is best suited to compatible electrical equipment that specifically requires a Class RK5 dual-element fuse with ferrule-end-to-ferrule-end connections. Its published ratings make it suitable for equipment requirements within its specified 600 VAC or 300 VDC limits, provided all other electrical and physical requirements also match.
