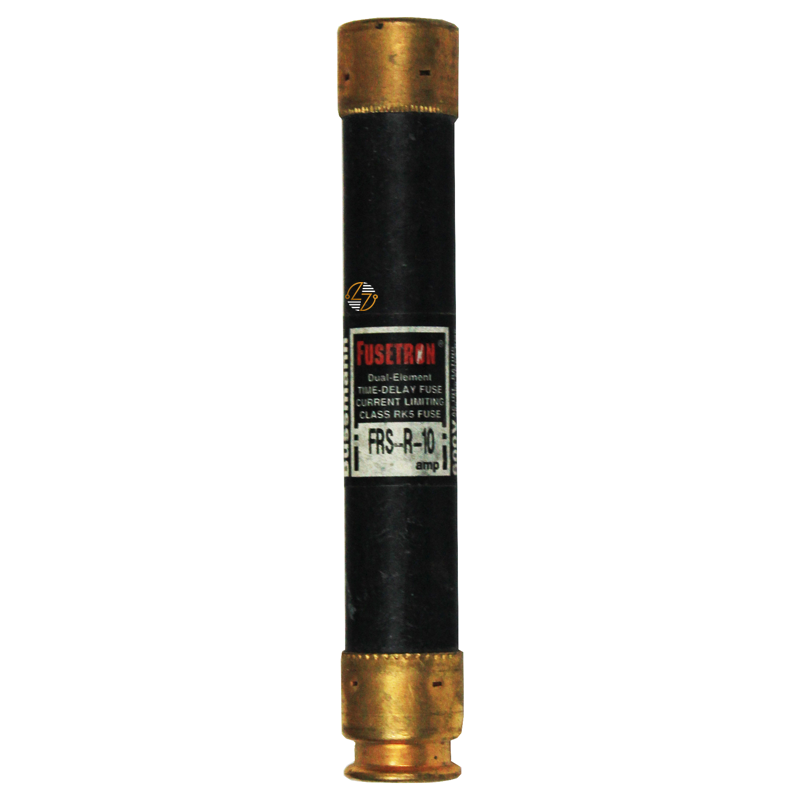

FRS-R-10 - 10Amp Fuse

FRS-R-10 - 10Amp Fuse

When your equipment specifies an FRS-R-10 fuse, matching the full electrical rating is just as important as matching the amperage. The fuse uses a ferrule-end-to-ferrule-end connection and measures 5 inches long by 0.81 inches high and 0.81 inches wide. It's also a non-indicating fuse, so there is no built-in status indicator. For electricians, maintenance teams, and facility personnel replacing an existing FRS-R-10 10A fuse, these clearly defined ratings make it easier to compare the fuse with the requirements of the equipment being serviced.

Key Features and Benefits

• 10 amp Class RK5 fuse with a dual-element configuration for equipment designed around this fuse class and rating.
• Rated for 600 VAC and 300 VDC, giving you clearly defined AC and DC operating limits to compare with equipment requirements.
• Published 10-second response time at 500% of rated current.
• Ferrule end x ferrule end connection provides an easy-to-identify physical configuration when checking compatibility.
• Non-indicating design with no integral fuse-status indicator.
• Measures 5 x 0.81 x 0.81 inches, allowing physical dimensions to be checked before replacement.
• CE Marked according to the supplied manufacturer specifications.


Technical Specifications

• Product Name: Eaton Bussmann series FRS-R fuse

• Catalog Number: FRS-R-10

• Product Type: Fuse

• Fuse Class: Class RK5

• Amperage Rating: 10 A

• AC Voltage Rating: 600 VAC

• DC Voltage Rating: 300 VDC

• AC Interrupt Rating: 200 kAIC at 600 VAC

• DC Interrupt Rating: 20 kAIC at 300 VDC

• Response Time: 10 sec at 500%

• Number of Elements: Dual

• Connection: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Length/Depth: 5 in

• Height: 0.81 in

• Width: 0.81 in

• Product Weight: 0.17 lb

• UPC: 051712508285


Material Compliance and Certifications

The FRS-R-10 is CE-marked in accordance with the supplied manufacturer specifications. No additional material-composition or material-compliance certifications were included in the provided product data, so none are claimed here.

Where It Works Best

The FRS-R-10 10A fuse is best suited for compatible electrical equipment and circuits that specifically call for a 10A Class RK5 dual-element fuse with ferrule-end connections. With published ratings of 600 VAC and 300 VDC, it can be considered compatible with AC or DC equipment when the required electrical specifications fall within those ratings.
