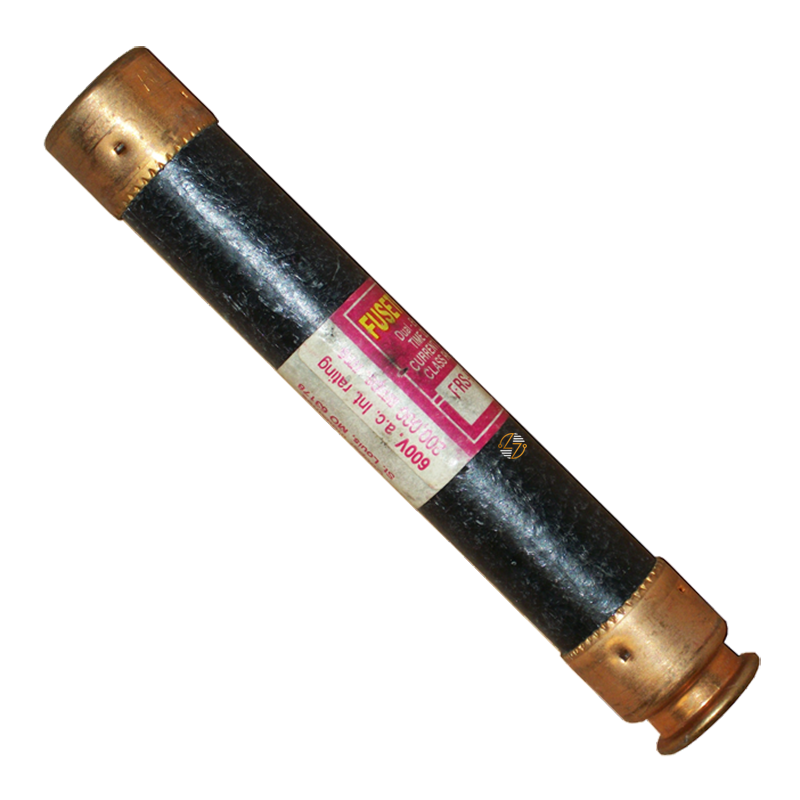

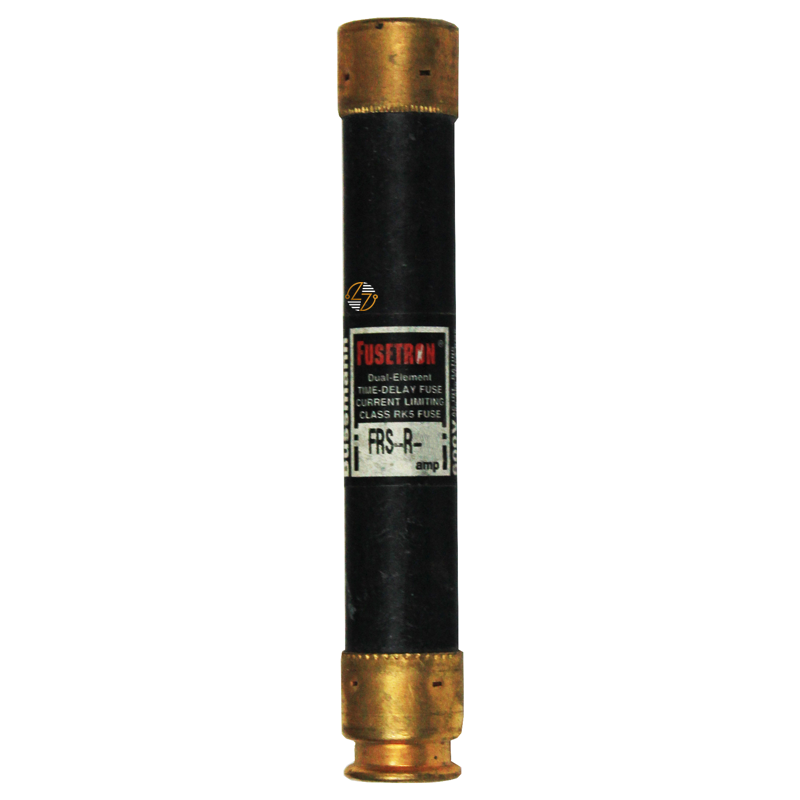

FRS-R-1 - 1Amp Fuse

FRS-R-1 - 1Amp Fuse

The FRS-R-1 is a 1-amp, Class RK5 dual-element fuse designed for electrical equipment requiring a specific combination of a 600 VAC or 300 VDC rating and ferrule-style connections. Physically, this fuse measures 5 inches long and 0.81 inches in height and width, making these dimensions easy to check against existing fuse or equipment specifications. The connection is ferrule end to ferrule end, and the fuse is non-indicating. If your equipment calls for FRS-R-1, you'll want to confirm the full set of specifications—not just the 1A rating—to ensure the fuse class, voltage, interrupting rating, connection, and dimensions match.

Key Features and Benefits

• 1A Class RK5 fuse with a dual-element design
• Rated for 600 VAC and 300 VDC
• 200 kAIC interrupting rating at 600 VAC
• 20 kAIC interrupting rating at 300 VDC
• Published response time of 10 seconds at 500%
• Ferrule end x ferrule end connection
• Non-indicating configuration
• Clearly defined dimensions make physical compatibility easier to verify
• CE Marked according to the manufacturer specifications


Technical Specifications

• Product Name: Eaton Bussmann series FRS-R fuse

• Catalog Number: FRS-R-1

• Product Type: Fuse

• Class: Class RK5

• Amperage Rating: 1 A

• Voltage Rating: 600 VAC, 300 VDC

• Interrupt Rating – AC: 200 kAIC at 600 VAC

• Interrupt Rating – DC: 20 kAIC at 300 VDC

• Response Time: 10 sec at 500%

• Number of Elements: Dual

• Connection: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Length/Depth: 5 in

• Height: 0.81 in

• Width: 0.81 in

• Weight: 0.15 lb

• UPC: 051712508087


Material Compliance and Certifications

The FRS-R-1 is CE-marked based on the supplied manufacturer specifications. No other material-composition or material-compliance certifications were provided in the product information, so additional certifications are not claimed here.

Where It Works Best

The FRS-R-1 is a practical choice for compatible electrical equipment that requires a 1-amp Class RK5 dual-element fuse with ferrule connections. Its published ratings cover applications requiring up to 600 VAC or 300 VDC, provided the equipment specifications call for this fuse type and the equipment falls within its stated ratings.
