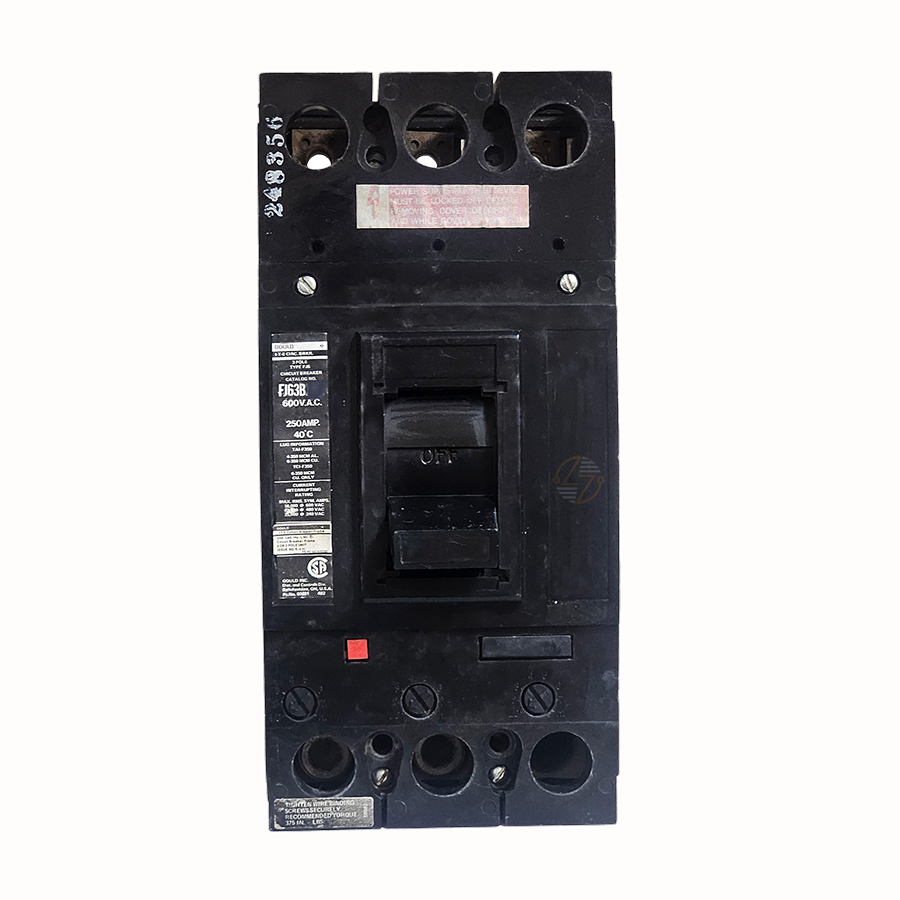

FJ63B110 - 110Amp Circuit Breaker

FJ63B110 - 110Amp Circuit Breaker

The FJ63B110 is a 110 Amp, 3-pole molded case circuit breaker used in electrical distribution equipment designed for the FJ6 frame. It's a practical replacement choice when you're maintaining existing commercial or industrial electrical systems that require the original breaker style and ratings. Matching the correct frame, amperage, and interrupting capacity helps preserve the equipment's original design and avoids unnecessary modifications during maintenance or repairs.

Key Features and Benefits

• 110 Amp molded case circuit breaker
• Three-pole configuration for three-phase electrical systems
• FJ6 frame for compatible replacement applications
• Thermal magnetic trip mechanism
• Non-interchangeable trip unit
• Includes load-side lug terminals
• Form, fit, and functional replacement for equipment designed for an FJ6 frame breaker
• Rated for 50/60Hz operation
• Designed for use in 40°C ambient temperatures
• Interrupting ratings:
  • 18kA @ 600VAC
  • 25kA @ 480VAC
  • 25kA @ 240VAC
• Built to last for continued service in existing electrical systems


Technical Specifications

• Part Number: FJ63B110

• Product Type: Molded Case Circuit Breaker

• Frame Type: FJ6

• Amperage: 110 Amps

• Poles: 3

• Trip Type: Thermal Magnetic

• Trip Unit: Non-Interchangeable

• Frequency: 50/60Hz

• Temperature Rating: 40°C

• Voltage Ratings:
  • 600VAC
  • 480VAC
  • 240VAC
• A.I.C. Rating:
  • 18kA @ 600VAC
  • 25kA @ 480VAC
  • 25kA @ 240VAC
• Terminals: Includes Load-Side Lug Terminals

• Dimensions: 4.50"W × 9.50"H × 4.00"D

• Height: 9.5 in.

• Width: 4.5 in.

• Depth: 4.0 in.

• Approximate Shipping Weight: 14.00 lbs.


Material Compliance and Certifications

The FJ63B110 is intended for use in electrical equipment designed to accept a compatible FJ6 frame molded case circuit breaker. Installation should be completed by qualified electrical personnel in accordance with applicable local, state, and national electrical codes. Before placing the breaker into service, verify that the frame type, amperage, voltage rating, interrupting capacity, trip characteristics, and terminal configuration match the requirements of the existing equipment.

Where It Works Best

• Commercial electrical distribution systems
• Industrial facilities
• Manufacturing plants
• Switchboards
• Panelboards
• Three-phase power distribution equipment
• Equipment designed for compatible FJ6 frame circuit breakers
• Maintenance and repair projects requiring a 110 Amp, 3-pole replacement breaker
