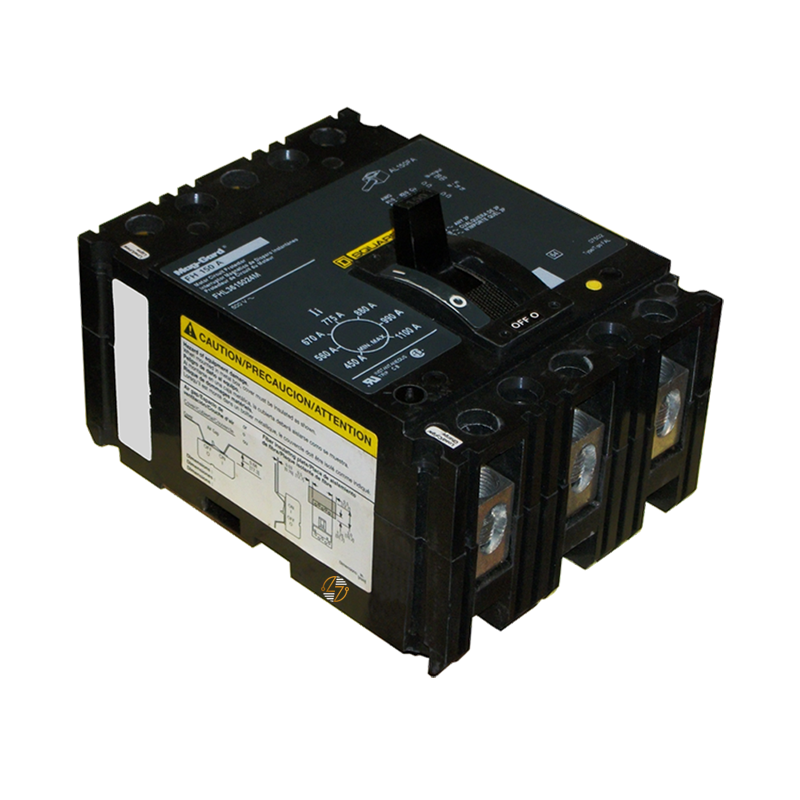

When your motor circuit protector needs to be replaced, getting the correct device is important. Motor applications often require specific protection characteristics, and choosing a part that matches the original equipment helps keep the system operating as intended. The Square D FHL3615024M MAG-GARD Motor Circuit Protector is a 150 Amp, 3-pole motor circuit protector built for 600VAC applications where reliable short-circuit protection and proper equipment compatibility are required.

Key Features and Benefits

• Square D FHL3615024M MAG-GARD Motor Circuit Protector
• 150 Amp current rating
• Three-pole design for three-phase motor circuits
• Rated for 600VAC applications
• Provides magnetic short-circuit protection for motor branch circuits
• Adjustable magnetic trip range from 450A to 1100A
• Suitable for motor starter and control applications
• Unit mount design for compatible equipment
• Helps maintain existing equipment configuration
• Commonly used in industrial and commercial motor applications


Technical Specifications

• Catalog Number: FHL3615024M

• Manufacturer: Square D

• Product Type: Motor Circuit Protector

• Series: FHL / MAG-GARD

• Protection Type: Magnetic Motor Circuit Protection

• Amperage Rating: 150 Amps

• Voltage Rating: 600VAC

• Number of Poles: 3

• Mounting Style: Unit Mount

• Adjustable Magnetic Trip Range: 450A - 1100A

• Motor Circuit Protector Type: MAG-GARD

• Dimensions: 4.50 in. W × 6.00 in. L × 3.13 in. D

• Approximate Ship Weight: 7.00 lbs.


Material Compliance and Certifications

The Square D FHL3615024M MAG-GARD Motor Circuit Protector is intended for use in compatible motor control and electrical distribution equipment. Installation and adjustment should be performed by qualified electrical personnel and follow the National Electrical Code (NEC), applicable local electrical requirements, and proper motor protection practices.

Where It Works Best

• Motor control centers
• Industrial motor circuits
• Manufacturing equipment
• HVAC motor applications
• Pumps and compressors
• Three-phase motor starters
• Processing equipment
• Commercial electrical systems
• Industrial electrical systems
• Replacement of existing FHL series motor circuit protectors
• Applications requiring adjustable magnetic motor protection
• Electrical maintenance and repair projects
