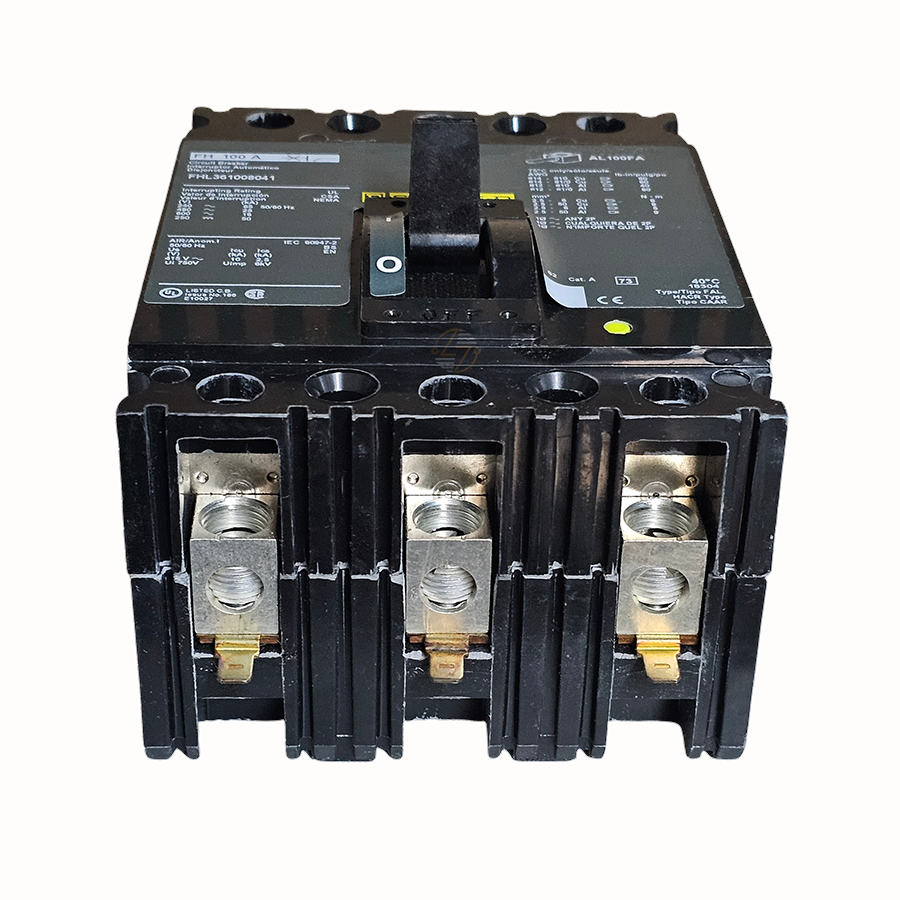

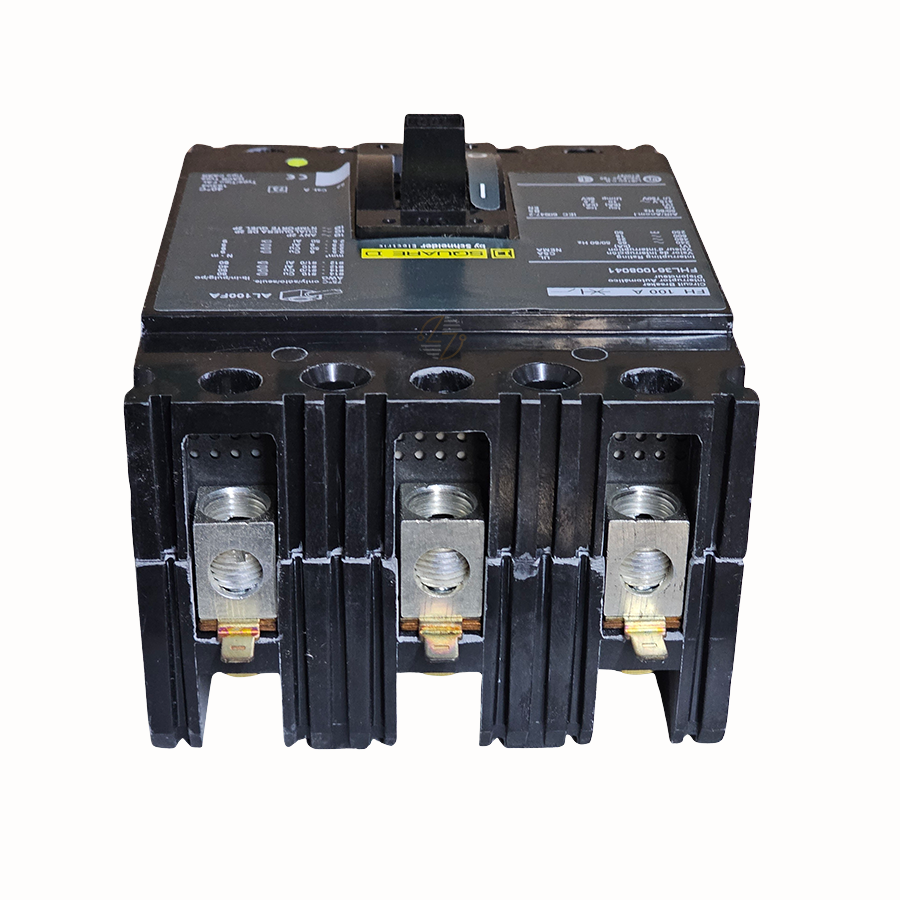

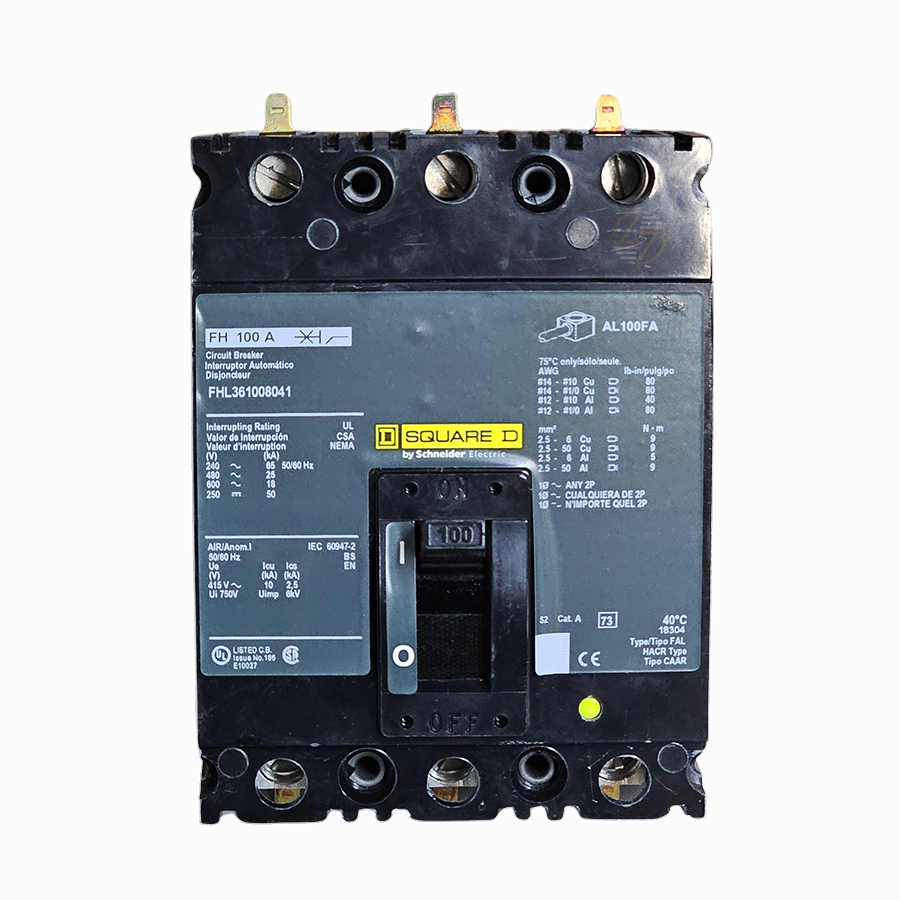

FHL361008041 - 100 Amp Circuit Breaker

FHL361008041 - 100 Amp Circuit Breaker

Built to deliver dependable power protection for residential, commercial, or light‑industrial electrical panels, this 3‑pole molded case circuit breaker meets the demands of modern electrical systems. It’s engineered for performance and consistency: with its 100‑amp rating, FHL frame design, and HACR thermal‑magnetic trip characteristics, this breaker is a smart choice when you need reliable overload and short‑circuit protection — without compromise.

Key Features and Benefits

• Three‑pole, 100 A capacity: Designed to manage significant 3‑phase electrical loads and provide balanced protection across all phases.
• High interrupting capacity (A.I.C.): Rated for 18,000 A at 600 VAC, 25,000 A at 480 VAC, and 65,000 A at 240 VAC. This ensures the breaker can safely interrupt fault currents in a wide range of electrical systems, enhancing safety and compliance.
• FHL frame type with molded-case construction: Offers a compact footprint and sturdy enclosure that simplifies installation while providing durable, long-term reliability.
• HACR-type, thermal‑magnetic trip unit: Built to handle HVAC, compressor, and general motor loads with dependable automatic response to overloads and short circuits.
• 60 Hz operation at 40 °C ambient: Reliable operation in standard power environments and well-suited for most residential, commercial, and light industrial settings.

Technical Specifications

• Part Number: FHL361008041
• Poles: 3‑pole
• Amperage: 100 A
• Interrupting Capacity:
  • 18 kA @ 600 VAC
  • 25 kA @ 480 VAC
  • 65 kA @ 240 VAC
• Frame Type: FHL (Molded Case)
• Trip Type: Thermal‑Magnetic (HACR)
• Frequency / Temp Rating: 60 Hz, rated at 40 °C ambient
• Ship Weight: Approx. 4.5 lb
• Height (shipping): Approx. 6.0 in

Material Compliance and Certifications

• Industry Standards: This molded‑case breaker conforms to standard industry safety and performance norms appropriate for molded-case circuit breakers in its class.
• Application Suitability: It is built for reliable protection against overloads and short circuits, making it a suitable match for electrical panels subjected to motor loads (such as HVAC or compressor circuits) as well as general load circuits. Its HACR-type thermal‑magnetic trip unit ensures compliance with common HVAC and building electrical requirements.

Where It Works Best

• HVAC, refrigeration, or compressor-driven systems — the HACR-type trip profile handles motor inrush currents smoothly.
• Panel upgrades or new installations in commercial or light-industrial buildings.
• Residential or small-business electrical panels with 3-phase circuits need solid overload and fault protection.
• Any application requiring a molded-case breaker with high interrupting capacity across common voltages (240 V, 480 V, or 600 V).
