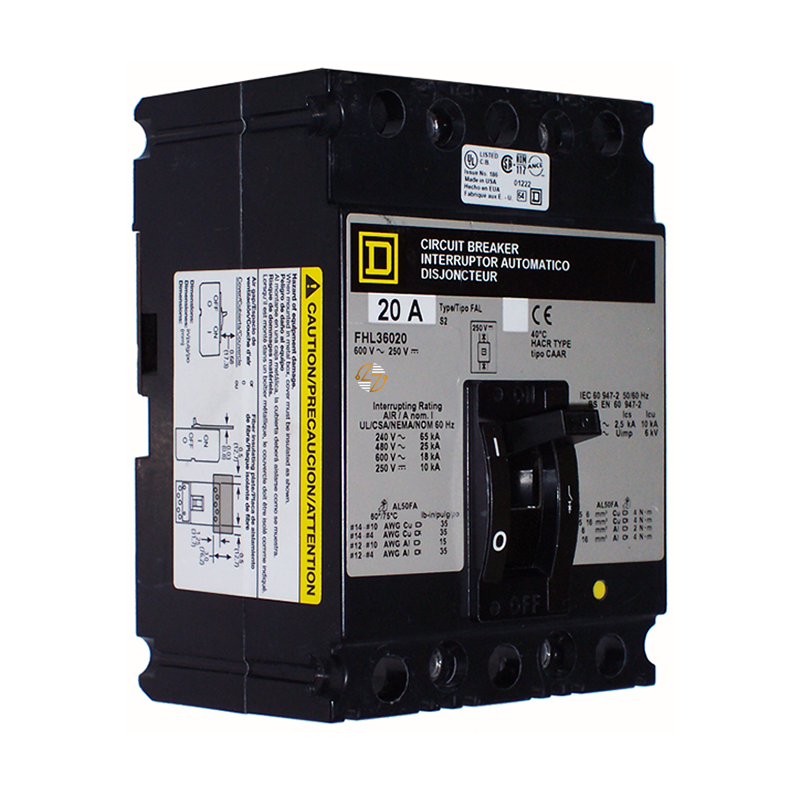

FHL36020 - 20 Amp Circuit Breaker

FHL36020 - 20 Amp Circuit Breaker

When your circuit breaker fails or begins nuisance tripping, getting the right replacement is about more than matching the amperage. The mounting style, voltage rating, trip characteristics, and pole configuration all need to align with the existing equipment to keep the electrical system operating as intended. The Square D FHL36020 is designed to provide the same form, fit, and function as the original breaker, making it a dependable replacement circuit breaker for maintaining compatible Square D I-Line panelboards and existing commercial and industrial electrical distribution systems without unnecessary modifications.

Key Features and Benefits

• Genuine Square D FHL36020 thermal magnetic circuit breaker
• 20 Amp continuous current rating
• Three-pole design for three-phase electrical systems
• 600V AC voltage rating
• Thermal-magnetic trip unit protects against overloads and short circuits
• Unit mount configuration for compatible Square D equipment
• Line and load lug connections for designated installations
• HACR rated for heating, air conditioning, and refrigeration equipment
• Helps maintain the original form, fit, and function of existing equipment
• Designed for maintaining existing commercial and industrial electrical distribution systems
• Built to last for long service life


Technical Specifications

• Catalog Number: FHL36020

• Manufacturer: Square D

• Product Type: Thermal Magnetic Circuit Breaker

• Series: FHL

• Trip Unit Technology: Thermal-Magnetic

• Amperage Rating: 20 Amps

• Voltage Rating: 600V AC

• Number of Poles: 3

• Phase Connection: ABC (Three-Phase)

• Breaking Capacity Code: H

• Mounting Style: Unit Mount

• Electrical Connections: Line Lugs and Load Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275 Amps

• Magnetic Trip Current: 600 Amps

• Application Rating: HACR Rated

• Dimensions: 6.40 in. H × 4.50 in. W × 4.13 in. D

• Certifications: UL Listed, CSA Certified


Material Compliance and Certifications

The Square D FHL36020 is UL Listed and CSA Certified, demonstrating compliance with recognized North American electrical safety standards. It is intended for installation in compatible electrical equipment and should be installed in accordance with the National Electrical Code (NEC) and all applicable local electrical codes. Installation and maintenance should always be performed by qualified electrical personnel following established safety procedures.

Where It Works Best

• Compatible Square D I-Line panelboards
• Commercial office buildings
• Industrial manufacturing facilities
• Commercial electrical systems
• Industrial electrical systems
• HVAC systems
• Heating and air conditioning equipment
• Refrigeration systems
• Pumps and compressors
• Three-phase motor circuits
• Manufacturing and process equipment
