FH16030B - 30 Amp Circuit Breaker

FH16030B - 30 Amp Circuit Breaker

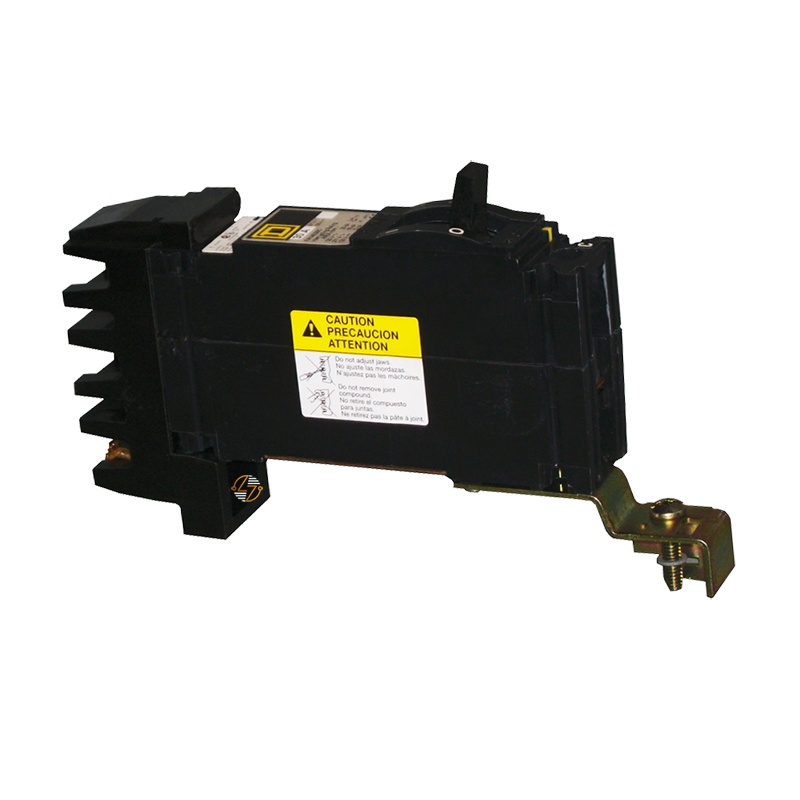

The Schneider Electric FH16030B is a 30 Amp, 1-pole molded case circuit breaker designed for dependable circuit protection in compatible I-Line electrical distribution equipment operating on 277V AC systems. If you're replacing an existing breaker during routine maintenance or repairing a legacy electrical system, finding a replacement that matches the original specifications is essential. The FH16030B is built for form, fit, and function, making it a practical choice when you need to maintain the integrity of your existing electrical equipment without changing the system's original design.

Key Features and Benefits

• 30 Amp continuous current rating
• Single-pole molded case circuit breaker
• Thermal magnetic trip unit for overload and short-circuit protection
• I-Line mounting configuration for compatible panelboards and switchboards
• I-Line line connection with load-side lug terminals
• Designed for form, fit, and functional replacement applications
• Ideal for maintaining existing and legacy electrical systems
• Built to last


Technical Specifications

• Manufacturer: Schneider Electric

• Catalog Number: FH16030B

• Product Type: Molded Case Circuit Breaker

• Trip Unit Technology: Thermal Magnetic

• Current Rating: 30 Amps

• Number of Poles: 1 Pole

• Voltage Rating: 277 VAC

• Breaking Capacity Code: H

• Mounting Mode: I-Line

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275 Amps

• Magnetic Tripping Current: 600 Amps

• Height: 6.40 in. (162.6 mm)

• Width: 1.50 in. (38.1 mm)

• Depth: 4.13 in. (104.9 mm)

• Certifications: UL Listed, CSA Certified

• Country of Origin: Mexico

• GTIN: 00785901563129


Material Compliance and Certifications

The Schneider Electric FH16030B molded case circuit breaker is UL Listed and CSA Certified for use in compatible electrical distribution equipment requiring thermal magnetic circuit protection. Its construction and electrical ratings are intended for approved applications and established electrical system requirements.

Installation should be completed by qualified electrical personnel and performed according to applicable electrical codes, equipment specifications, and safety practices.

Where It Works Best

• Compatible Schneider Electric I-Line panelboards and switchboards
• Existing and legacy electrical systems
• Form, fit, and functional replacement applications
• Commercial office buildings
• Industrial manufacturing facilities
• Healthcare facilities
• Educational institutions
• Retail and mixed-use commercial properties
• Municipal and government buildings
• Branch circuits serving lighting, receptacles, and control equipment
• Preventive maintenance and repair projects requiring a compatible 30 Amp, 1-pole thermal magnetic circuit breaker with I-Line mounting
