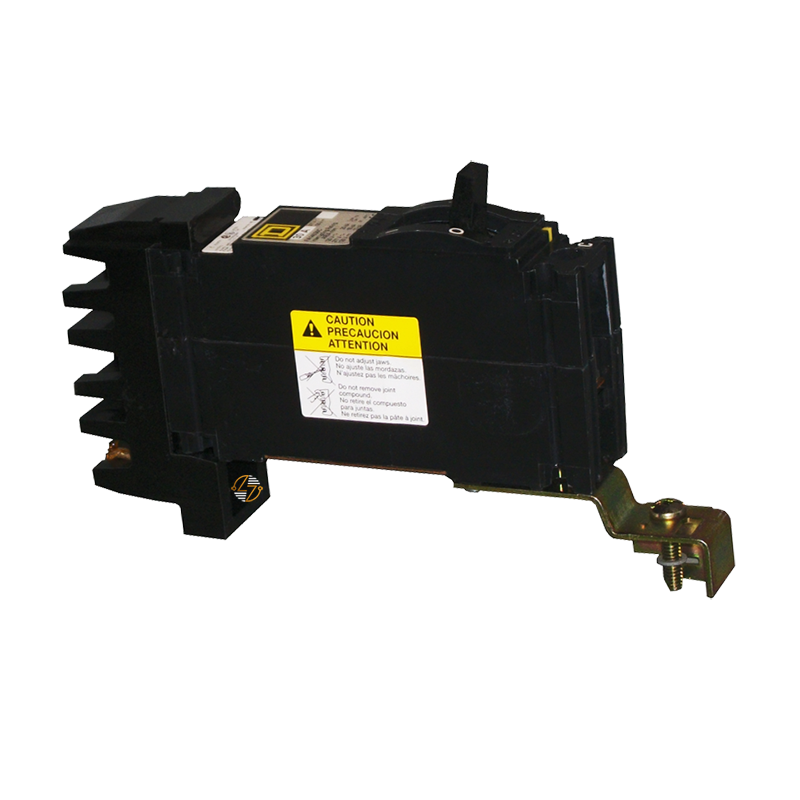

FH16030A - 30 Amp Circuit Breaker

FH16030A - 30 Amp Circuit Breaker

When you’re dealing with high-powered systems, the last thing you want is a circuit breaker that can’t keep up. That’s where the FH16030A from Schneider Electric comes in. This 30 amp, 1-pole breaker is built to handle 277 volts and protect your system from overloads and short circuits—without any fuss. It’s got the brains and the brawn thanks to its thermal-magnetic trip technology, which kicks in exactly when it’s needed. Whether you're upgrading a panel or setting up something new, this breaker is a dependable go-to for keeping things safe and running right.

Key Features and Benefits

• Ready for Big Surges: With a magnetic trip setting of 600 amps, this breaker is made to handle those sudden spikes without blinking.
• Smart Dual Protection: It uses both thermal (for slow overloads) and magnetic (for quick surges) triggers to keep your system protected from different kinds of electrical trouble.
• Built to Last: Certified by UL and CSA, it’s made from high-quality materials and built to keep working in tough environments.
• Eco-Minded: RoHS and REACH compliant, plus Schneider’s Green Premium™ label means it’s made with fewer harmful materials and more transparency about its environmental impact.
• Space-Saving Design: Compact enough to fit in tight spots, making it easy to install—even in crowded panels.

Quick Specs

• Amps: 30
• Voltage: 277V
• Poles: 1
• Trip Type: Thermal-magnetic
• Breaking Capacity: Code H
• Magnetic Hold: 275A
• Magnetic Trip: 600A
• Mounting: I-Line plug-in
• Line Connection: I-Line
• Load Connection: Lugs
• Terminal Code: AL50FA
• Dimensions:
  • Height: 6.4"
  • Width: 1.5"
  • Depth: 4.13"
• Certifications: UL Listed, CSA Approved

Material Compliance & Certifications

• RoHS & REACH Compliant: Made without restricted hazardous materials.
• Green Premium™ Label: Offers full environmental impact data so you know what you're buying.

Where It Works Best

• The FH16030A shines in commercial setups, light industrial jobs, or residential systems that need reliable protection at 277V. Think lighting systems, HVAC units, or panel upgrades where space is tight and safety is a must. It’s especially great if you want something that’s easy to install, built to last, and backed by trusted certifications.
