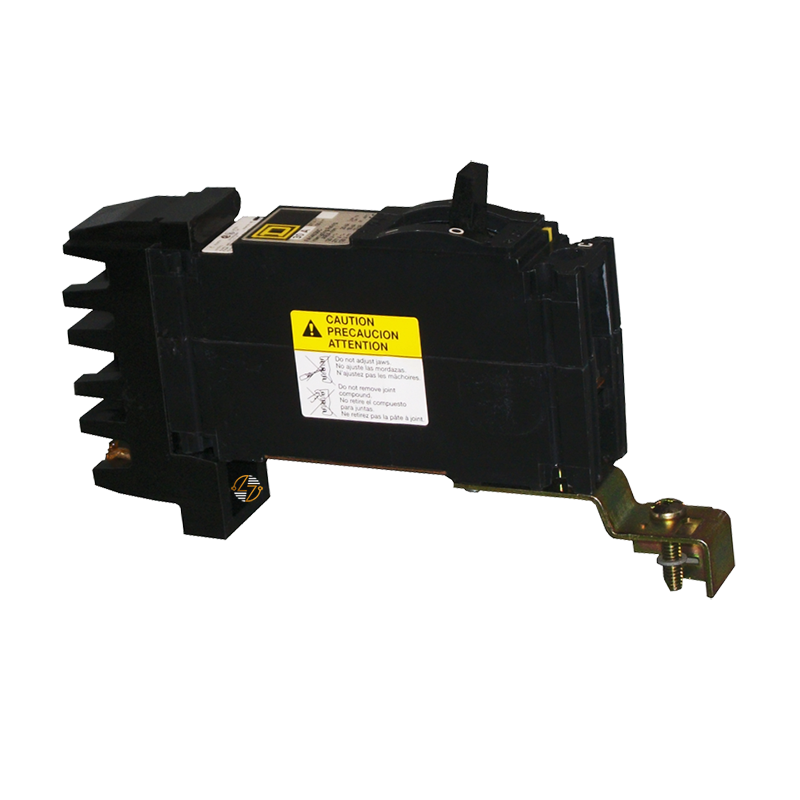

FH16020C - 20 Amp Circuit Breaker

FH16020C - 20 Amp Circuit Breaker

When a breaker fails, finding the right replacement is about more than matching the amperage. The Schneider Electric FH16020C is designed to fit compatible I-Line panelboards and switchboards, making it a dependable choice for maintaining existing electrical systems and servicing legacy equipment. With its 20 Amp rating, single-pole design, and thermal magnetic trip unit, this molded case circuit breaker delivers the form, fit, and function needed to restore your electrical distribution system without changing the original equipment configuration.

Key Features and Benefits

• 20 Amp continuous current rating
• Single-pole molded case circuit breaker
• Thermal magnetic trip unit for overload and short-circuit protection
• I-Line mounting configuration for compatible panelboards and switchboards
• I-Line line connection with load-side lug terminals
• Designed for form, fit, and functional replacement applications
• Ideal for existing and legacy electrical systems
• Built to last


Technical Specifications

• Manufacturer: Schneider Electric

• Catalog Number: FH16020C

• Product Type: Molded Case Circuit Breaker

• Trip Unit Technology: Thermal Magnetic

• Current Rating: 20 Amps

• Number of Poles: 1 Pole

• Voltage Rating: 277 VAC

• Breaking Capacity Code: H

• Mounting Mode: I-Line

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275 Amps

• Magnetic Tripping Current: 600 Amps

• Height: 6.40 in. (162.6 mm)

• Width: 1.50 in. (38.1 mm)

• Depth: 4.13 in. (104.9 mm)

• Certifications: UL Listed, CSA Certified

• GTIN: 00785901338932


Material Compliance and Certifications

The Schneider Electric FH16020C molded case circuit breaker is UL Listed and CSA Certified for use in compatible electrical distribution equipment requiring thermal magnetic circuit protection.

Installation should be completed by qualified electrical personnel and performed according to applicable electrical codes, equipment specifications, and safety practices.

Where It Works Best

• Compatible Schneider Electric I-Line panelboards and switchboards
• Existing and legacy electrical systems
• Form, fit, and functional replacement applications
• Commercial electrical distribution systems
• Industrial facilities
• Healthcare facilities
• Educational institutions
• Office buildings
• Retail and mixed-use commercial properties
• Branch circuits serving lighting, receptacles, and control equipment
