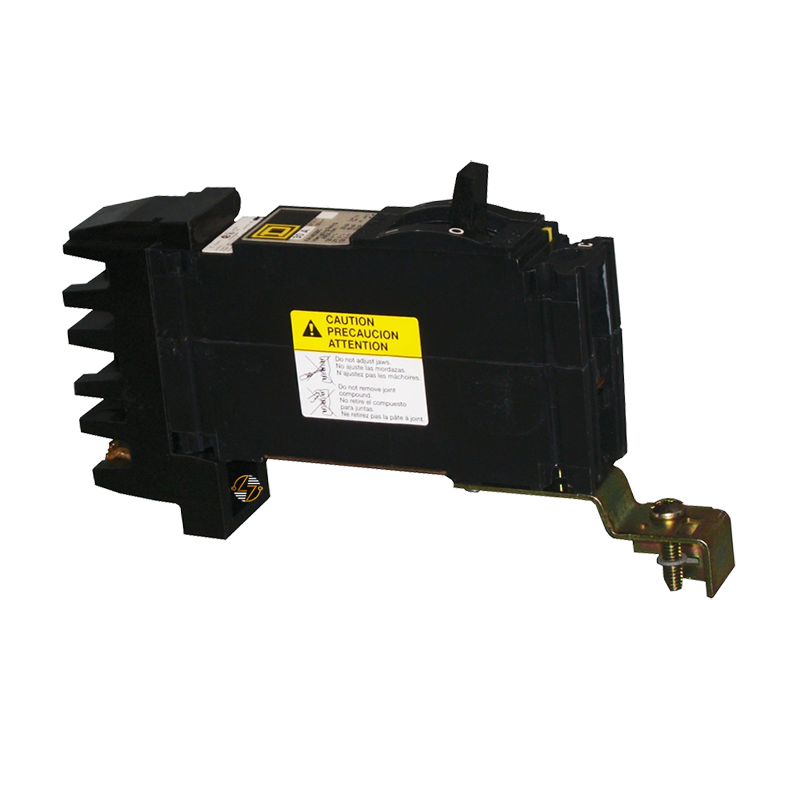

Finding the right replacement circuit breaker means more than matching the amperage. The Schneider Electric FH16020B is a 20 Amp, 1-pole molded case circuit breaker designed for use in compatible I-Line panelboards and switchboards, making it an excellent choice for maintaining existing and legacy electrical systems.

When your project requires a Type FH molded case circuit breaker with I-Line mounting, the Schneider Electric FH16020B provides the ratings and physical configuration needed for approved replacement applications.

Key Features and Benefits

• 20 Amp continuous current rating
• Single-pole molded case circuit breaker
• Thermal magnetic trip unit for overload and short-circuit protection
• I-Line mounting configuration for compatible panelboards and switchboards
• I-Line line connection with load-side lug terminals
• Designed for form, fit, and functional replacement applications
• Compatible with existing and legacy electrical systems
• Built to last


Technical Specifications

• Manufacturer: Schneider Electric

• Catalog Number: FH16020B

• Product Type: Molded Case Circuit Breaker

• Trip Unit Technology: Thermal Magnetic

• Current Rating: 20 Amps

• Number of Poles: 1 Pole

• Voltage Rating: 277 VAC

• Breaking Capacity Code: H

• Mounting Mode: I-Line

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275 Amps

• Magnetic Tripping Current: 600 Amps

• Height: 6.40 in.

• Width: 1.50 in.

• Depth: 4.13 in.

• Certifications: UL Listed, CSA

• GTIN: 00785901338925

• Country of Origin: Mexico


Material Compliance and Certifications

The Schneider Electric FH16020B molded case circuit breaker is UL Listed and CSA Certified for use in compatible electrical distribution equipment requiring thermal magnetic circuit protection. Its construction and electrical ratings are intended for approved applications and established electrical system requirements.

Installation should be completed by qualified electrical personnel and performed according to applicable electrical codes, equipment specifications, and safety practices.

Where It Works Best

• Compatible Schneider Electric I-Line panelboards and switchboards
• Replacement of Type FH molded case circuit breakers
• Existing and legacy electrical systems
• Commercial electrical distribution systems
• Industrial facilities
• Healthcare facilities
• Educational institutions
• Office buildings
• Retail and mixed-use commercial properties
• Branch circuit protection for lighting, receptacles, and control equipment
